Installation Procedure

WARNING: This page is about a different variant/trim than selected.
  1. Clean the automatic transmission flex plate bolt threads.
  2. Install the automatic transmission flex plate (2) and the EN-652  holder to hold the automatic transmission flex plate (2).

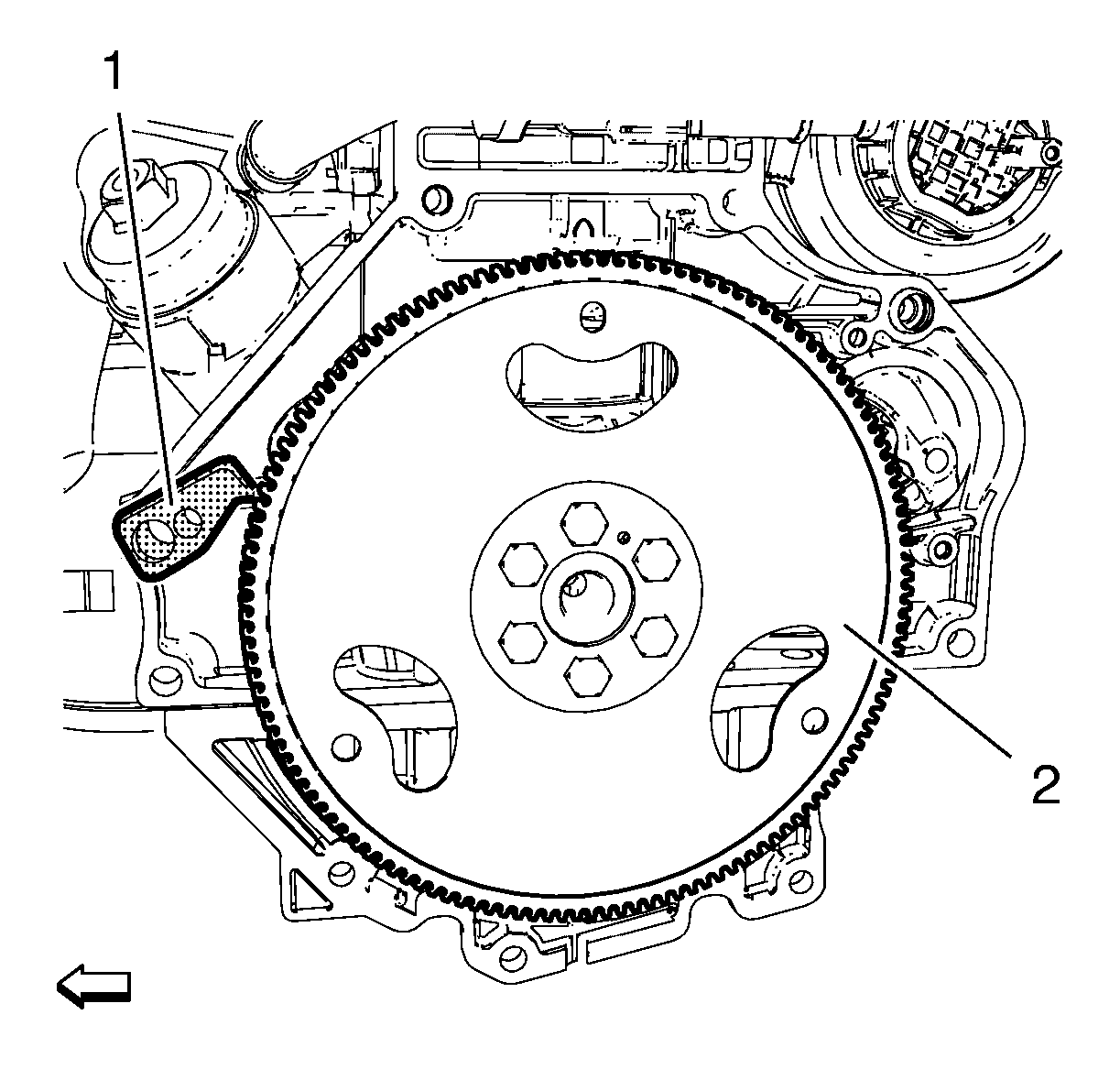

    Fig 1: Automatic Transmission Flex Plate And Holder
    GM2028106Courtesy of GENERAL MOTORS COMPANY
  3. Install the 6 NEW automatic transmission flex plate bolts (2) and tighten the bolts to 60 N.m (44 lb ft) ± 5°.

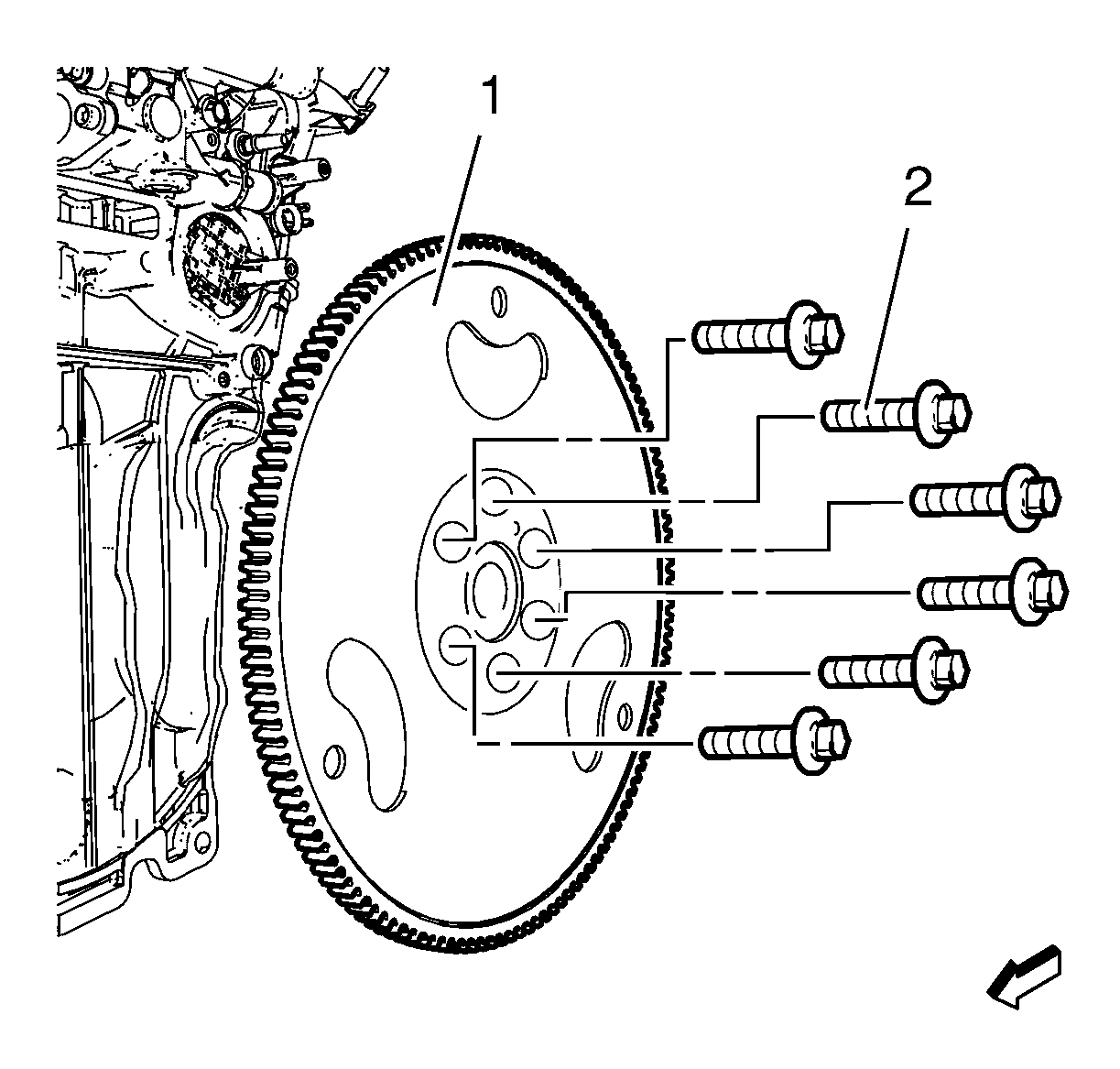

    Fig 2: Automatic Transmission Flex Plate And Bolts
    GM2028105Courtesy of GENERAL MOTORS COMPANY
    CAUTION: Refer to Fastener Caution .
    CAUTION: Refer to Torque-to-Yield Fastener Caution .
  4. Remove the EN-652  holder.
  5. Install the automatic transmission. Refer to Transmission Replacement (1.8L LWE and LUW) .
