Timing Belt Center Front Cover Installation

WARNING: This page is about a different variant/trim than selected.

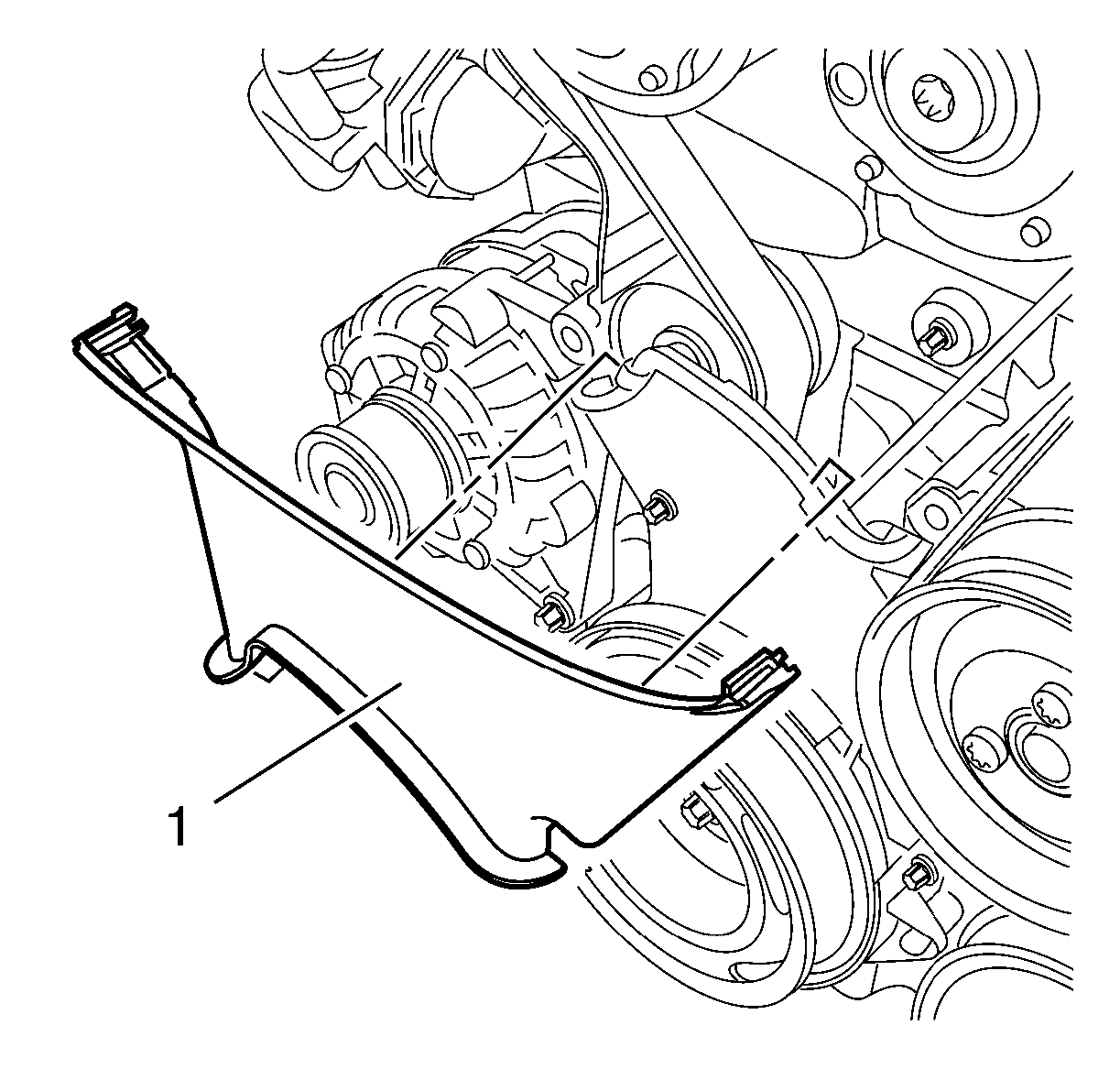

Fig 1: Timing Belt Center Front Cover
GM2026839Courtesy of GENERAL MOTORS COMPANY

Install the timing belt center front cover (1) to the timing belt rear cover at 2 locations.
