Throttle Body Assembly Installation

WARNING: This page is about a different variant/trim than selected.
  1. Install a NEW throttle body seal.

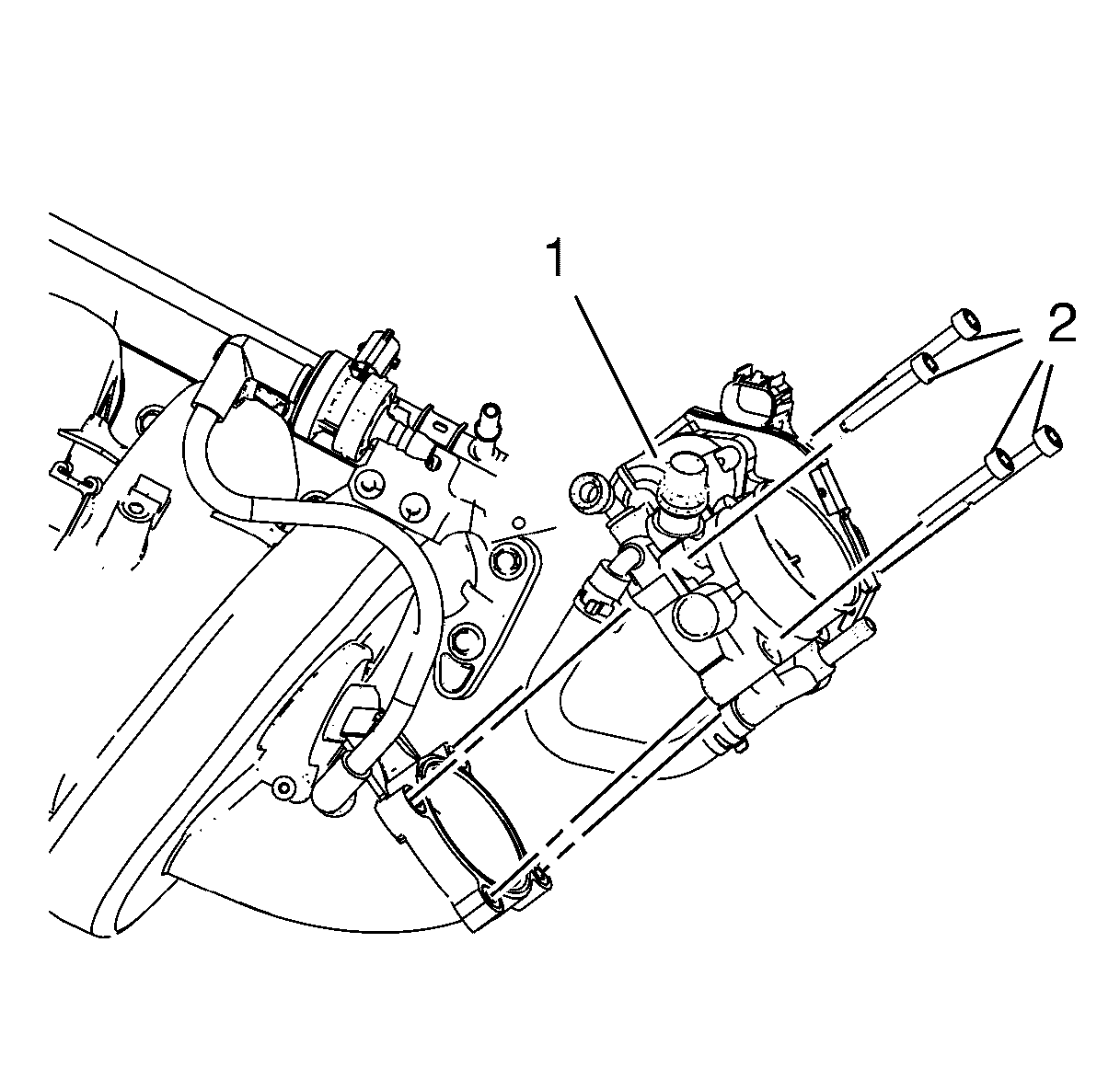

    Fig 1: Throttle Body And Bolts
    GM2027010Courtesy of GENERAL MOTORS COMPANY
  2. Install the throttle body (1).
  3. Install the 4 throttle body bolts (2) and tighten to 8 N.m (71 lb in).
    CAUTION: Refer to Fastener Caution .
