Secondary Air Injection Pump Pipe Installation

WARNING: This page is about a different variant/trim than selected.
  1. Connect the secondary air injection pump pipe (3) to the secondary air injection check valve. Refer to Plastic Collar Quick Connect Fitting Service .

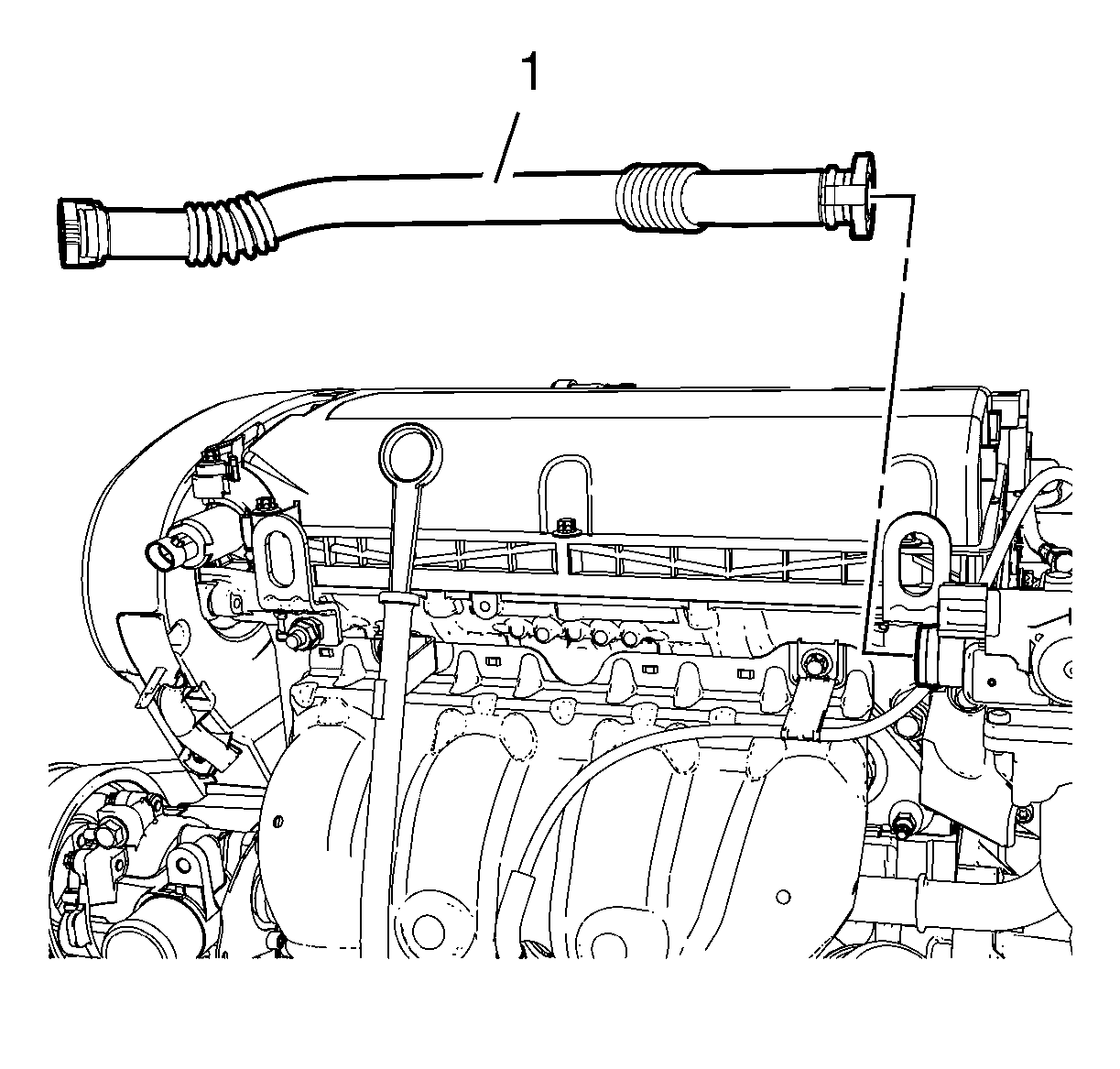

    Fig 1: Secondary Air Injection Pump Pipe
    GM2781589Courtesy of GENERAL MOTORS COMPANY
