Positive Crankcase Ventilation Pipe Installation

WARNING: This page is about a different variant/trim than selected.
  1. Install the positive crankcase ventilation tube (2).

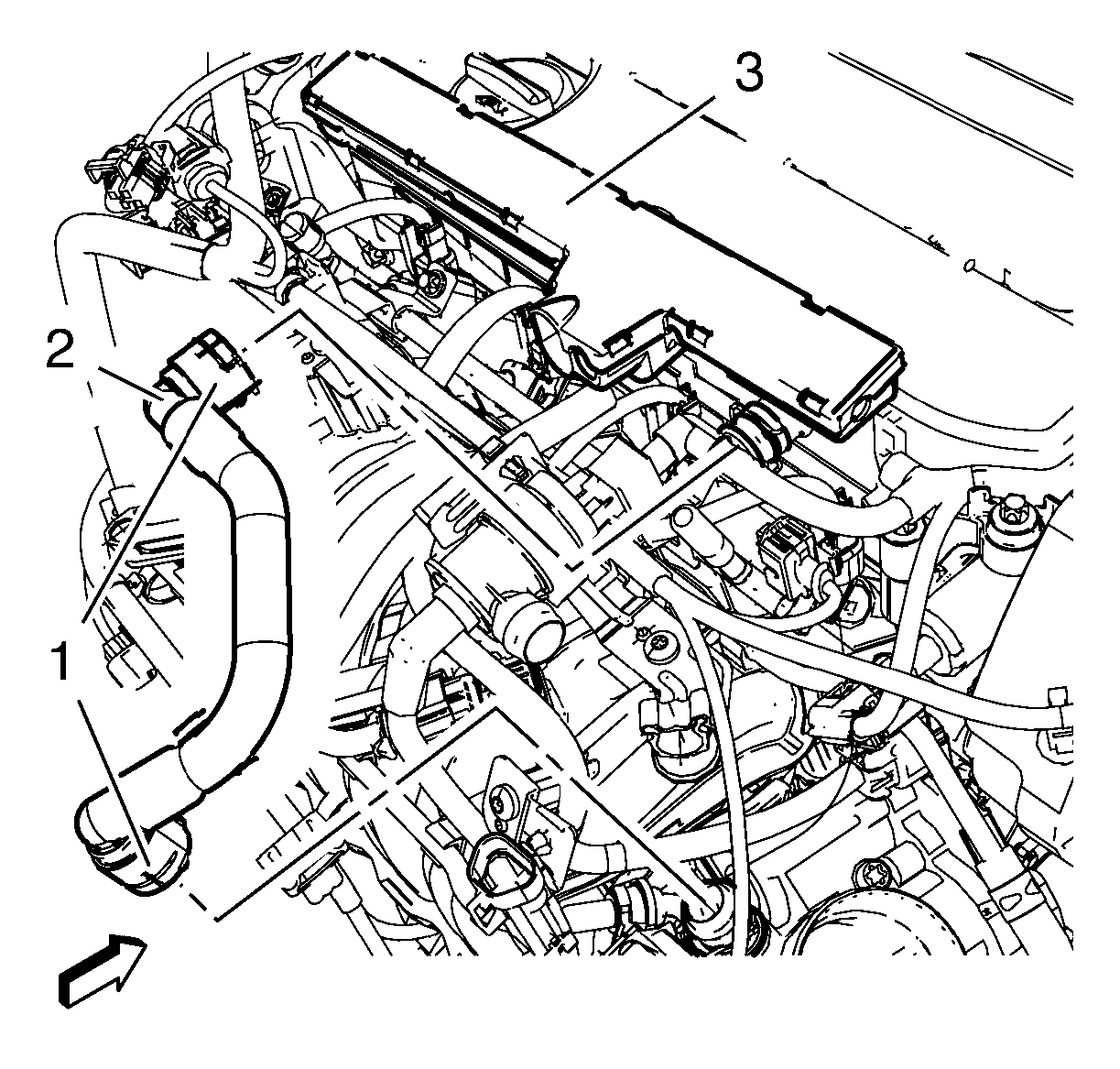

    Fig 1: Positive Crankcase Ventilation Tube, Connectors And ECM Wiring Harness Guide
    GM2027614Courtesy of GENERAL MOTORS COMPANY
  2. Connect the 2 positive crankcase ventilation tube connectors (1).
  3. Clip in the ECM wiring harness guide (3) to the cylinder head cover.
