Oil Pump Cleaning and Inspection

WARNING: This page is about a different variant/trim than selected.

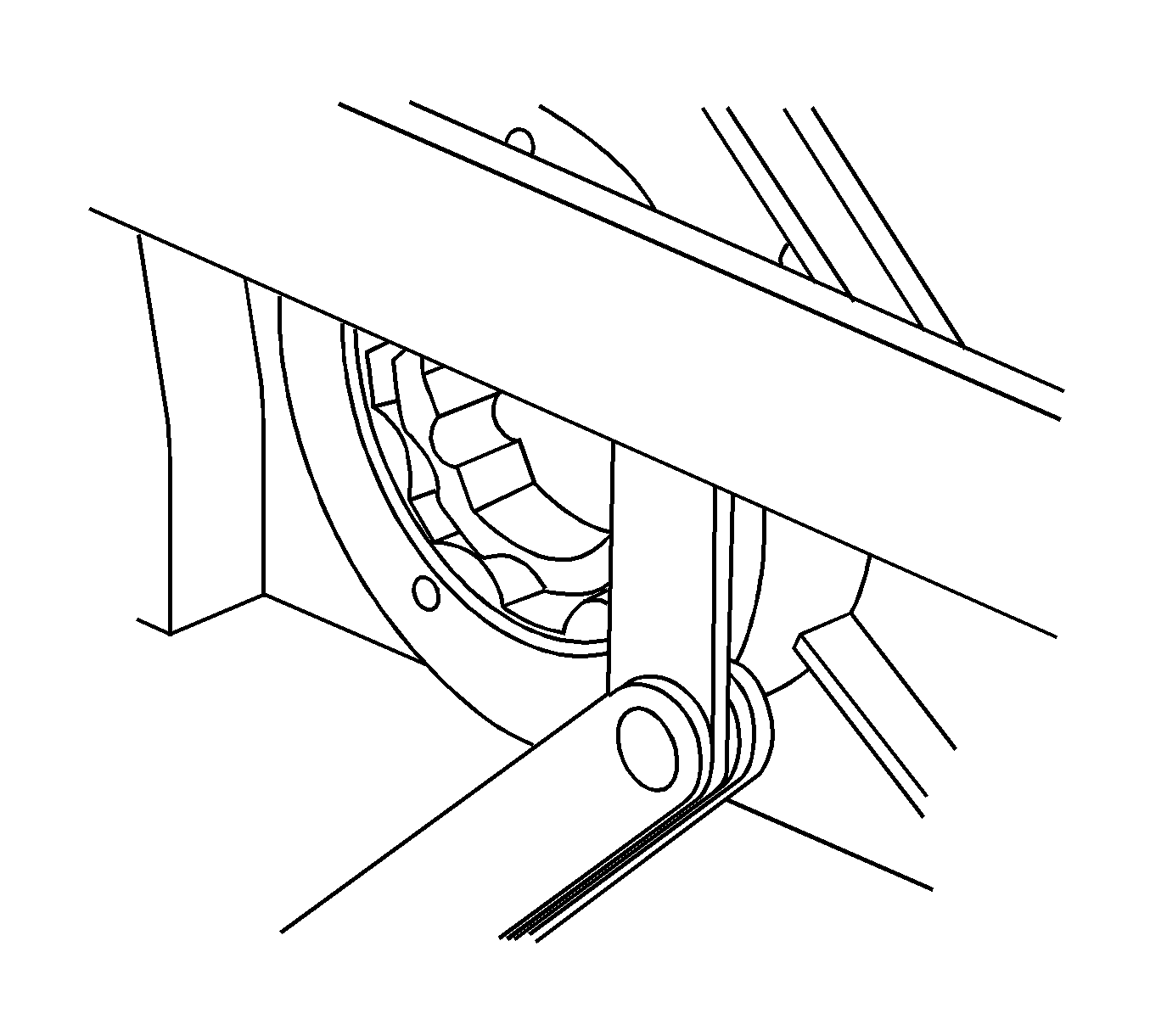

    Fig 1: Inspecting Axial Clearance
    GM1948717Courtesy of GENERAL MOTORS COMPANY
  1. Remove the external rotor with the internal rotor.
  2. Visually inspect the components.
  3. Install the external and the internal rotors.
  4. Inspect the axial clearance of the rotors in respect to the control unit housing upper edge.

    Specifications

    Permissible measurement is 0.02-0.058 mm (0.00079-0.00228 in).
