Oil Pan Cleaning and Inspection

WARNING: This page is about a different variant/trim than selected.
  1. Remove the 2 oil pan baffle bolts (1) and the oil pan baffle (2).

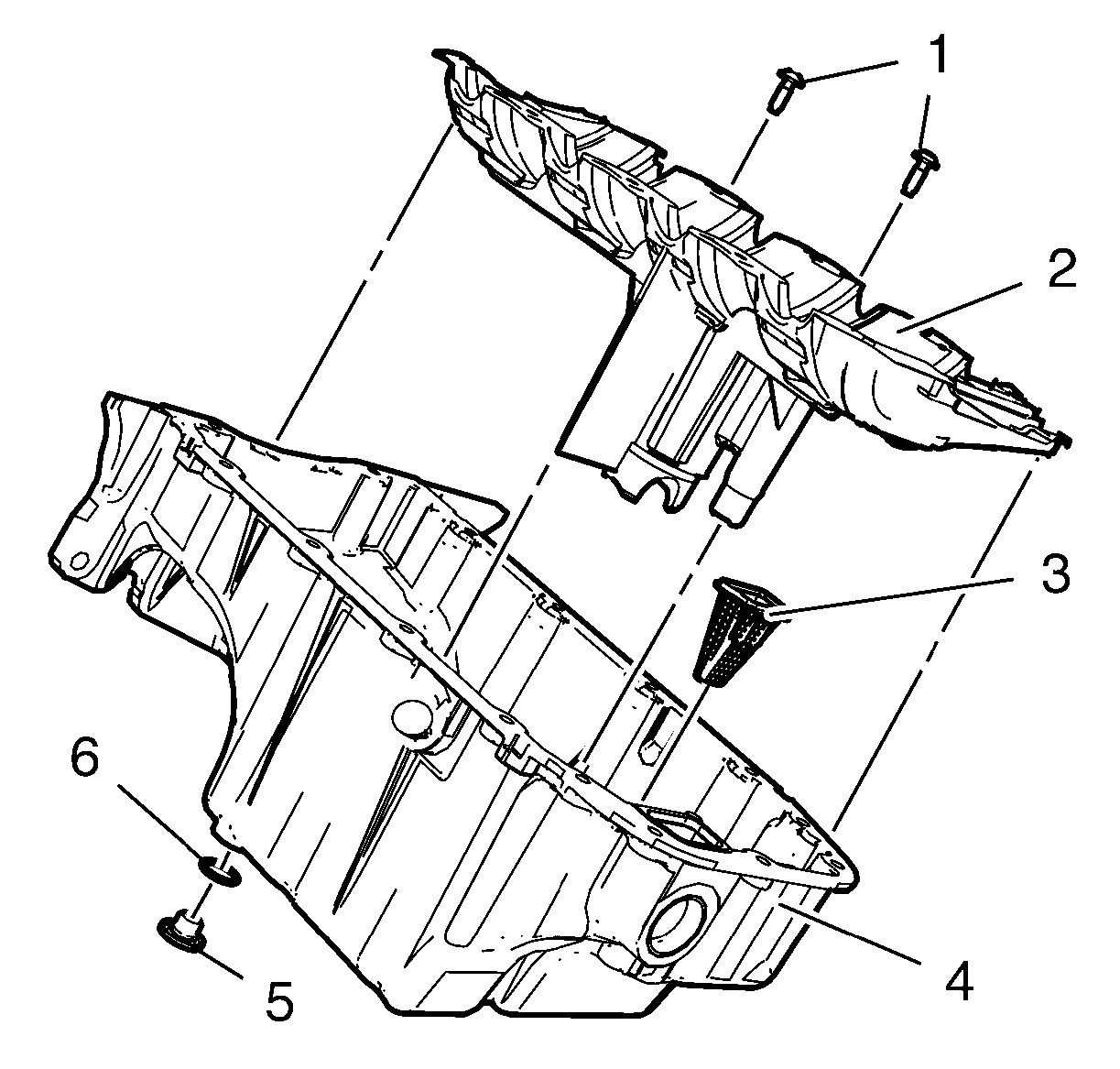

    Fig 1: Oil Pan Components
    GM2028262Courtesy of GENERAL MOTORS COMPANY
  2. Remove the oil pump screen (3).
  3. Clean the oil pan (4). Remove all the sludge and the oil deposits.
  4. Remove the oil pan drain plug (5) and the oil pan drain plug seal (6).
  5. Inspect the thread of the oil pan drain plug.
  6. Inspect the oil pan for cracking near the pan rail and the transmission mounting points.
  7. Inspect the oil pan for cracking resulting from impact or flying road debris.
  8. Inspect the oil pan baffle and oil pump screen.
  9. Repair or replace the oil pan as necessary.
