Intake Manifold Disassemble

WARNING: This page is about a different variant/trim than selected.

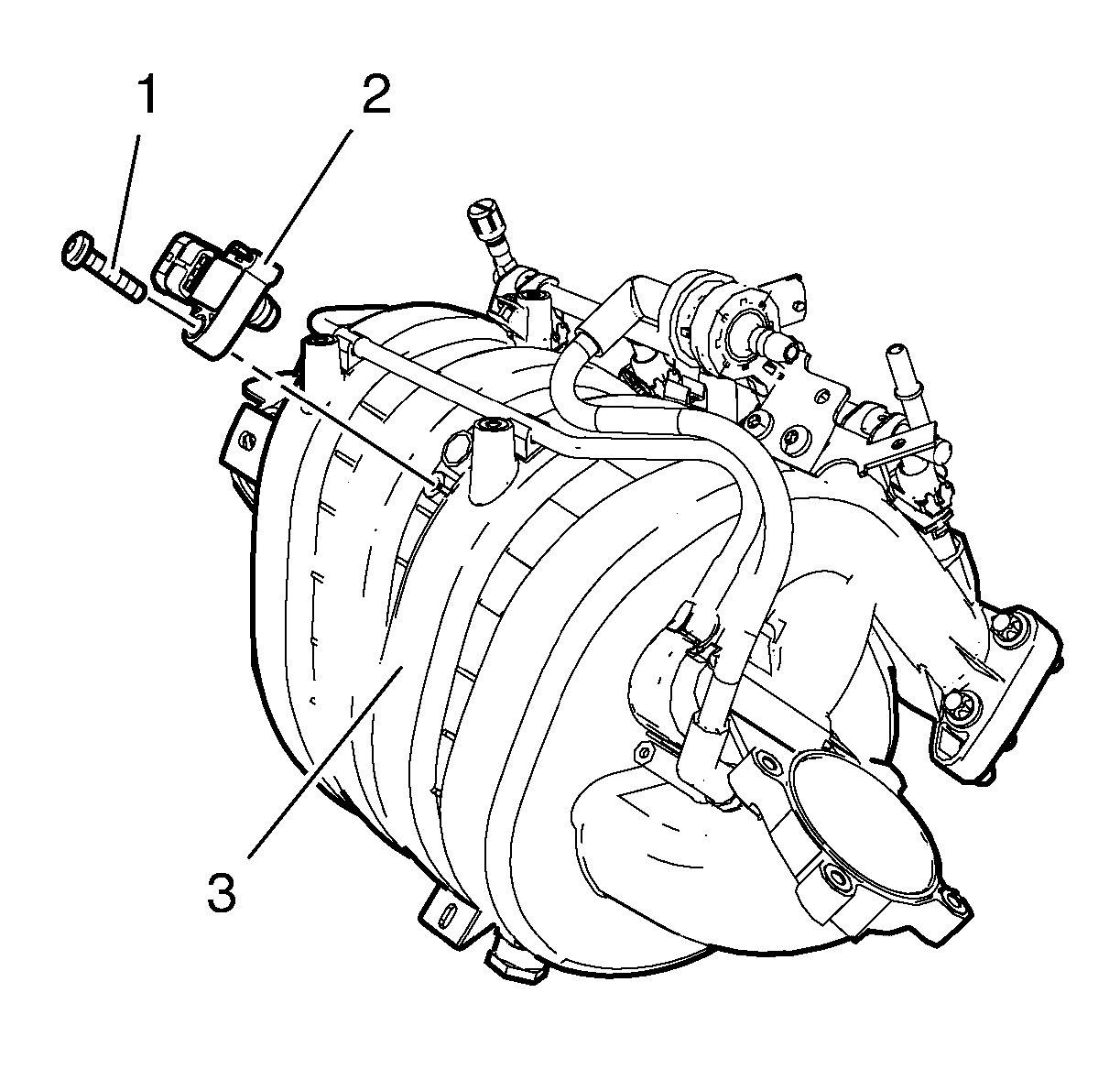

Remove the intake manifold absolute pressure sensor bolt (1).

Fig 1: Intake Manifold, Manifold Absolute Pressure Sensor And Bolt
Courtesy of GENERAL MOTORS COMPANY
Remove the manifold absolute pressure sensor (2) from the intake manifold (3).

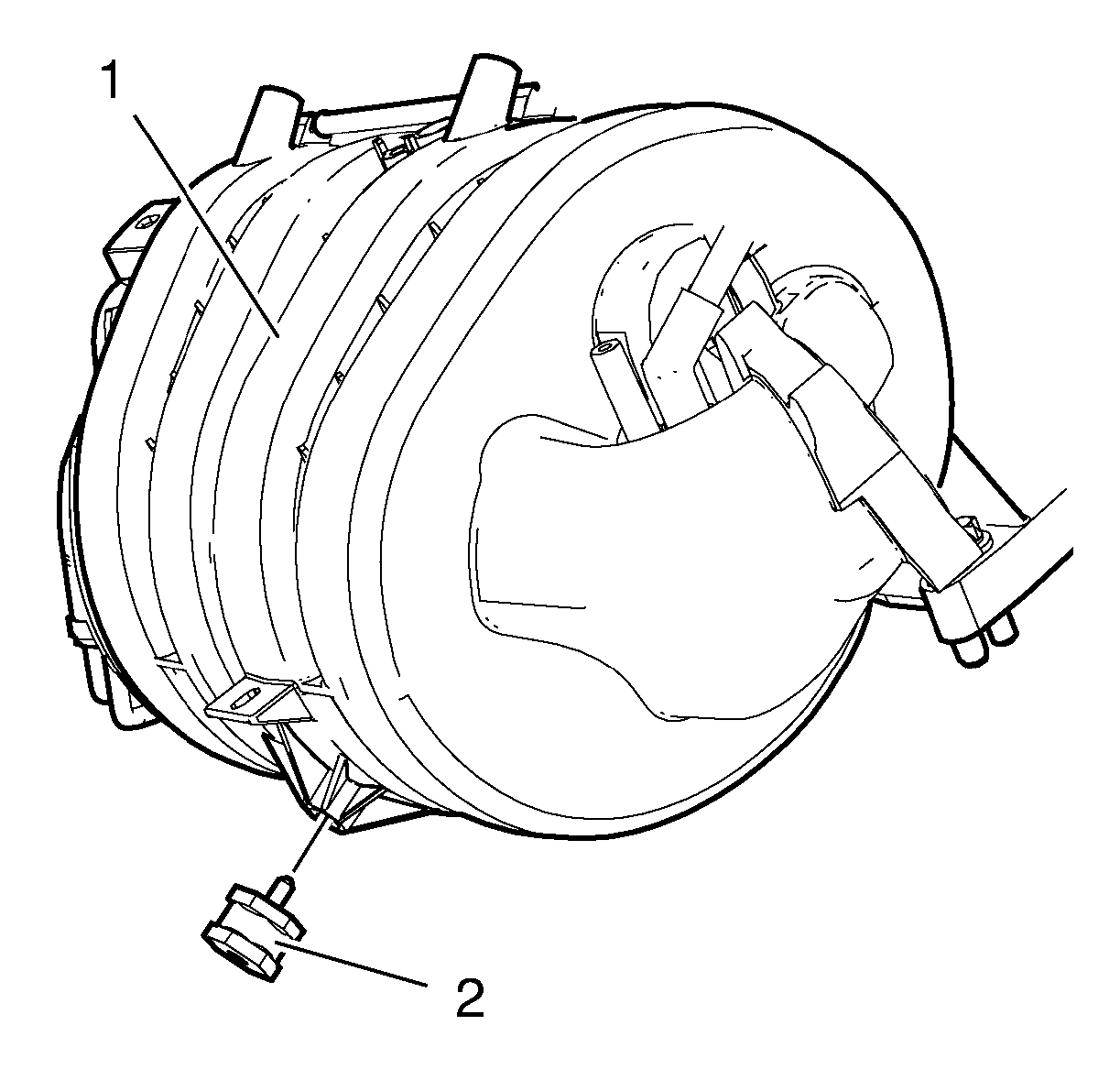

Remove the intake manifold mount (2) from the intake manifold (1).

Fig 2: Intake Manifold And Mount
Courtesy of GENERAL MOTORS COMPANY
Remove the throttle body seal (1).

Fig 3: Intake Manifold, Seal And Throttle Body Seal
Courtesy of GENERAL MOTORS COMPANY
Remove the intake manifold seal (3) from the intake manifold (2).
Remove the 2 evaporative emission canister purge solenoid valve bracket bolts (2).

Fig 4: Intake Manifold, Evaporative Emission Canister Purge Solenoid Valve Bracket And Bolts
Courtesy of GENERAL MOTORS COMPANY
Remove the evaporative emission canister purge solenoid valve bracket (1) from the intake manifold (3).
Remove the 2 multiport fuel injection fuel rail bolts (1).

Fig 5: Intake Manifold, Multiport Fuel Injection Fuel Rail, Fuel Injectors, Seals And Bolts
Courtesy of GENERAL MOTORS COMPANY
Remove the multiport fuel injection fuel rail (2) and the fuel injectors (3) from the intake manifold (5).
Remove the 4 multiport fuel injector seals (4).
