Exhaust Manifold Removal

WARNING: This page is about a different variant/trim than selected.
  1. Remove the 9 exhaust manifold nuts (4).

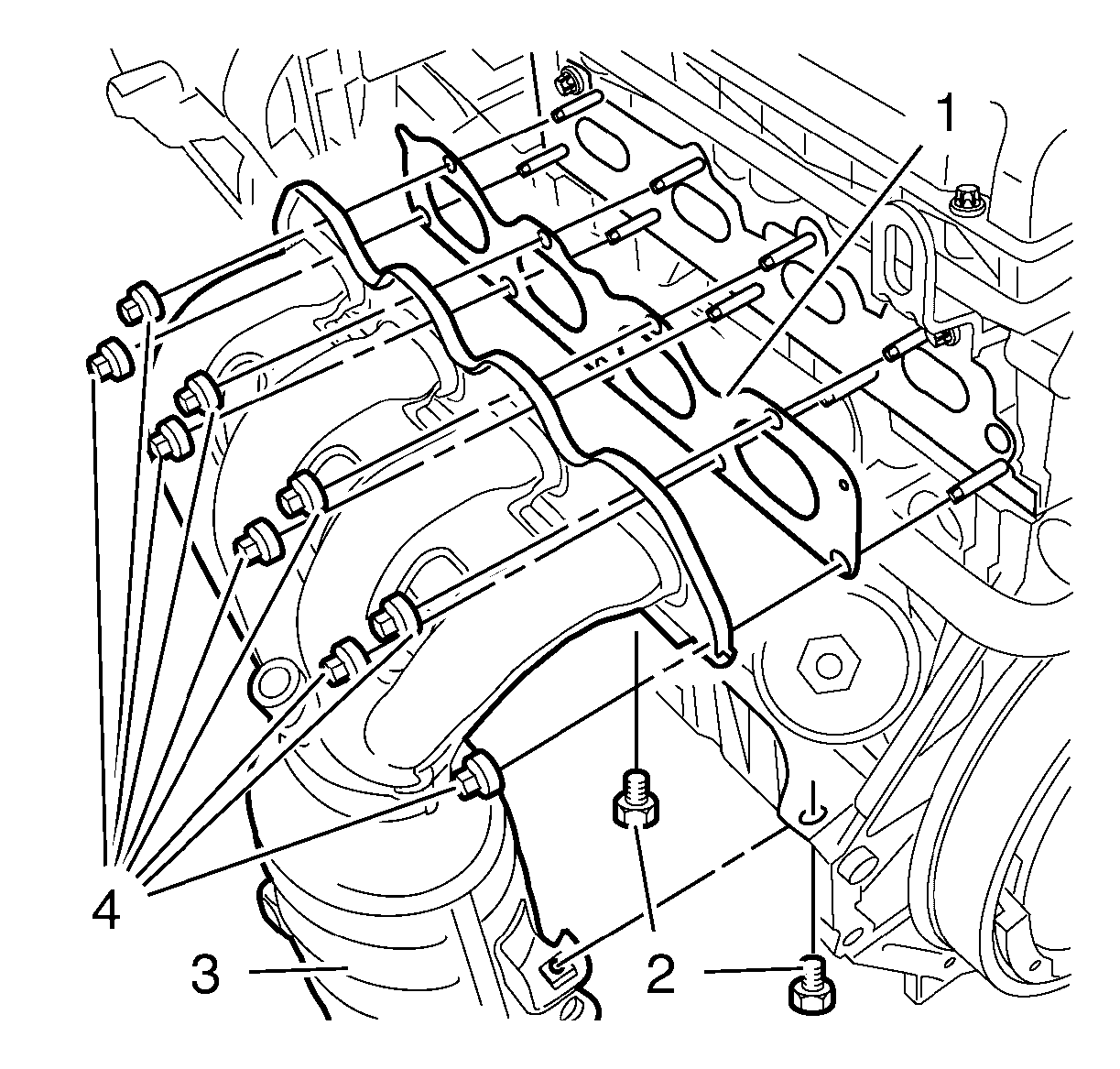

    Fig 1: Exhaust Manifold And Bolts
    GM2026825Courtesy of GENERAL MOTORS COMPANY
  2. Remove the 2 exhaust manifold bolts (2)
  3. Remove the exhaust manifold (3) and gasket (1).
  4. Clean all of the gasket surfaces.
