Exhaust Manifold Cleaning and Inspection

WARNING: This page is about a different variant/trim than selected.
  1. Clean the exhaust manifold (1) in solvent.

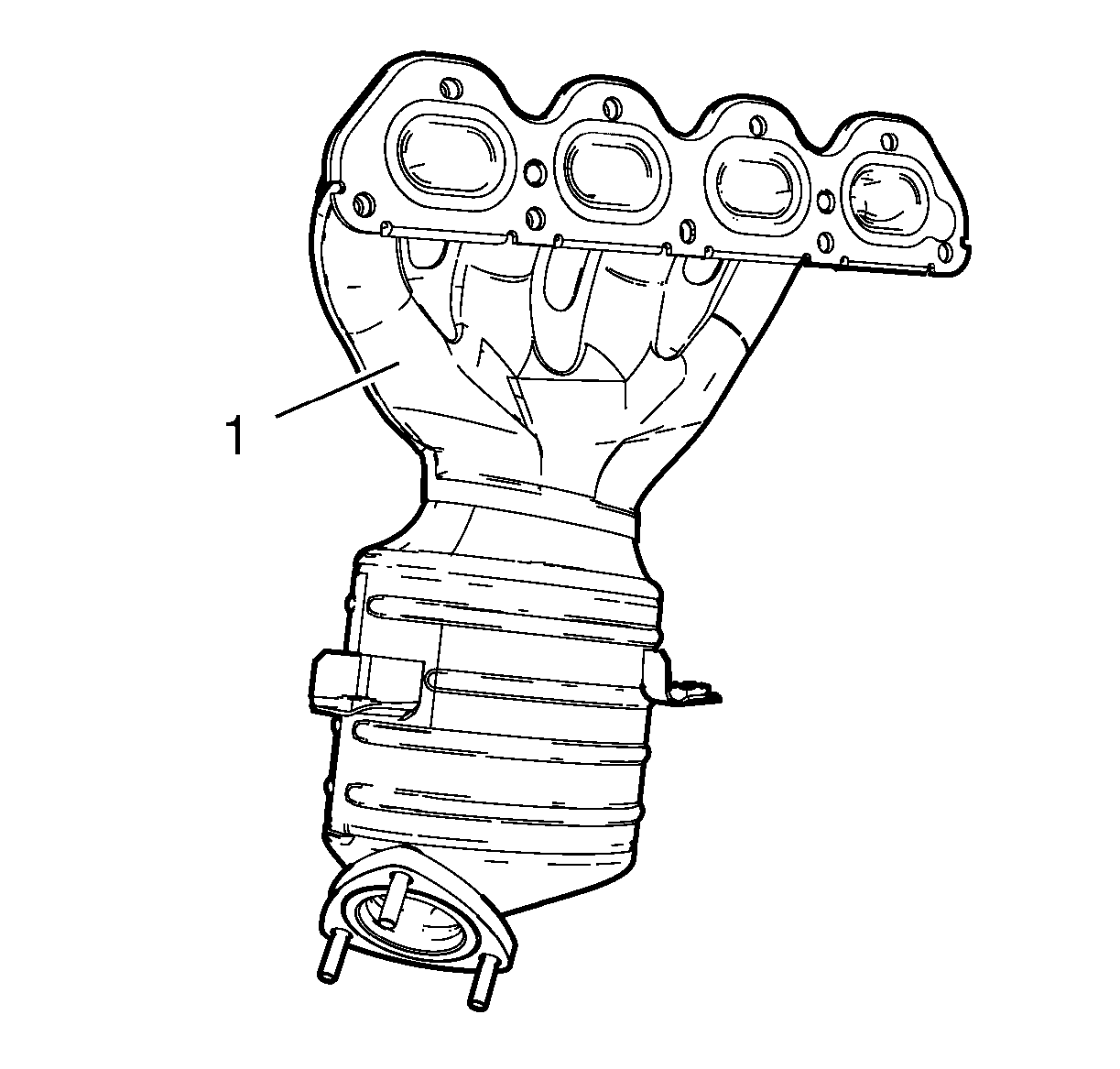

    Fig 1: Exhaust Manifold
    GM2028210Courtesy of GENERAL MOTORS COMPANY
  2. Dry the exhaust manifold (1) with compressed air.
    WARNING: Wear safety glasses in order to avoid eye damage.
  3. An exhaust manifold leak or damage may cause an exhaust leak and may effect OBD II system performance. A damaged exhaust must be replaced.
