Engine Oil Cooler Installation

WARNING: This page is about a different variant/trim than selected.
  1. Clean the engine oil cooler to the oil filter housing sealing surfaces.
  2. Install the NEW engine oil cooler gasket (2) and the engine oil cooler (1) to the engine oil cooler housing.

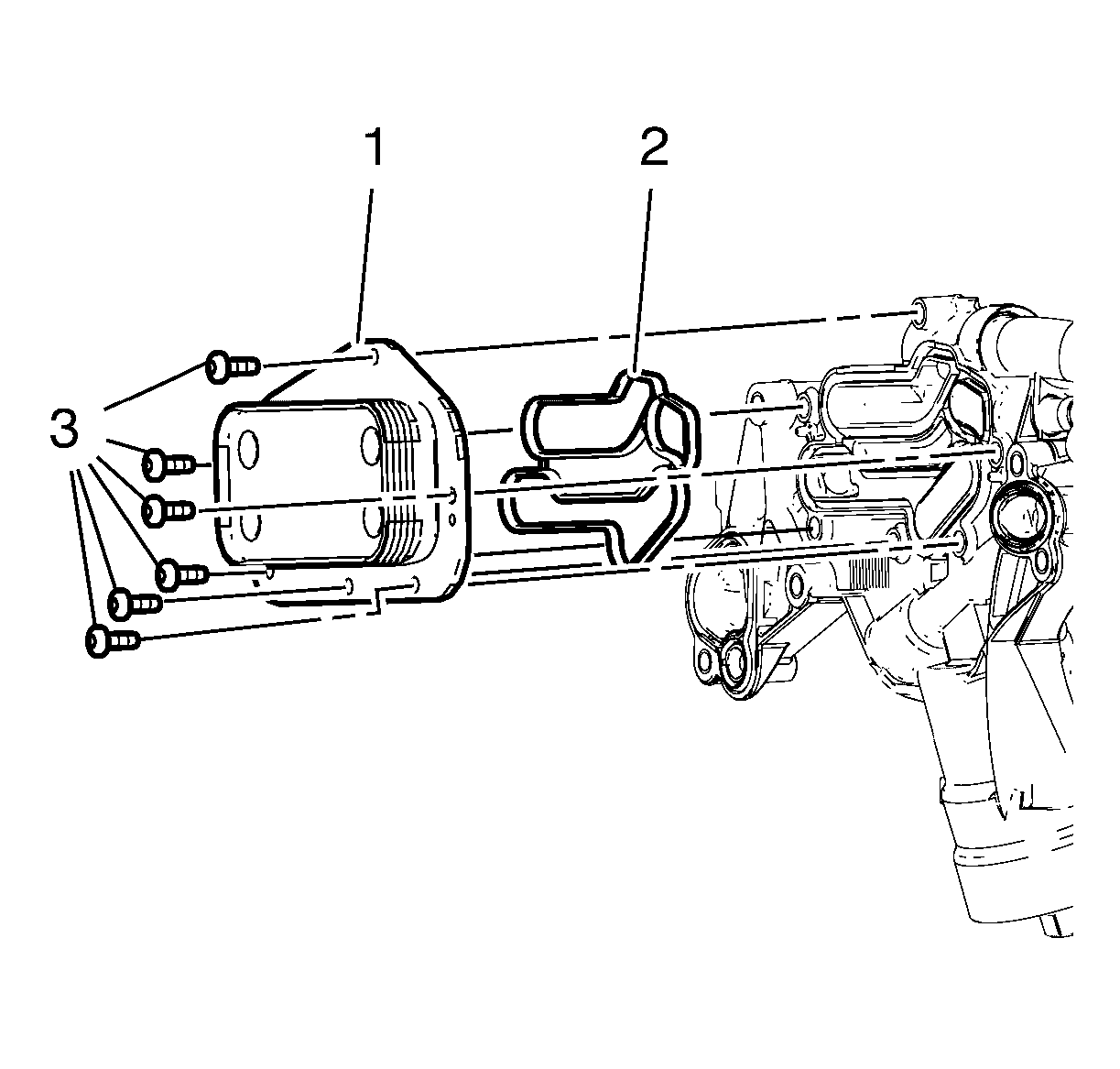

    Fig 1: Engine Oil Cooler
    GM2188658Courtesy of GENERAL MOTORS COMPANY
  3. Install the 6 engine oil cooler bolts (3) and tighten to 8 N.m (71 lb in).
    CAUTION: Refer to Fastener Caution .
