Engine Front Cover and Oil Pump Installation

WARNING: This page is about a different variant/trim than selected.
  1. Install the NEW engine cover gasket (1).

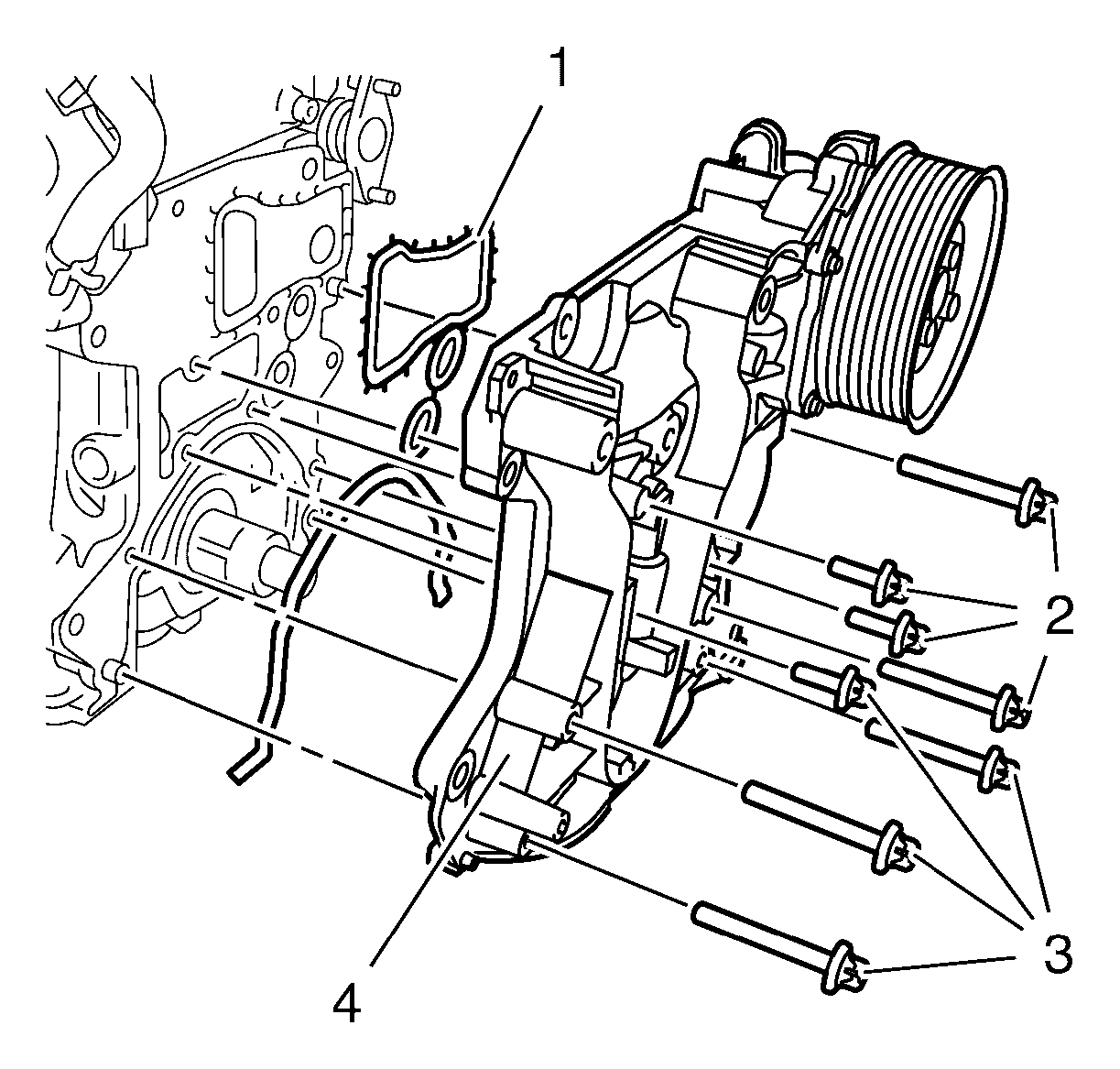

    Fig 1: Engine Oil Pump
    GM2026848Courtesy of GENERAL MOTORS COMPANY
  2. Install the engine cover with the included oil pump (4).
  3. Install the 8 engine cover bolts (2, 3) and tighten to 20 N.m (15 lb ft).
    CAUTION: Refer to Fastener Caution .
