Engine Coolant Thermostat Installation

WARNING: This page is about a different variant/trim than selected.
  1. Clean the engine coolant sealing surfaces.
    CAUTION: Refer to Engine Coolant Thermostat Housing Caution .
  2. Install the engine coolant seal (1).

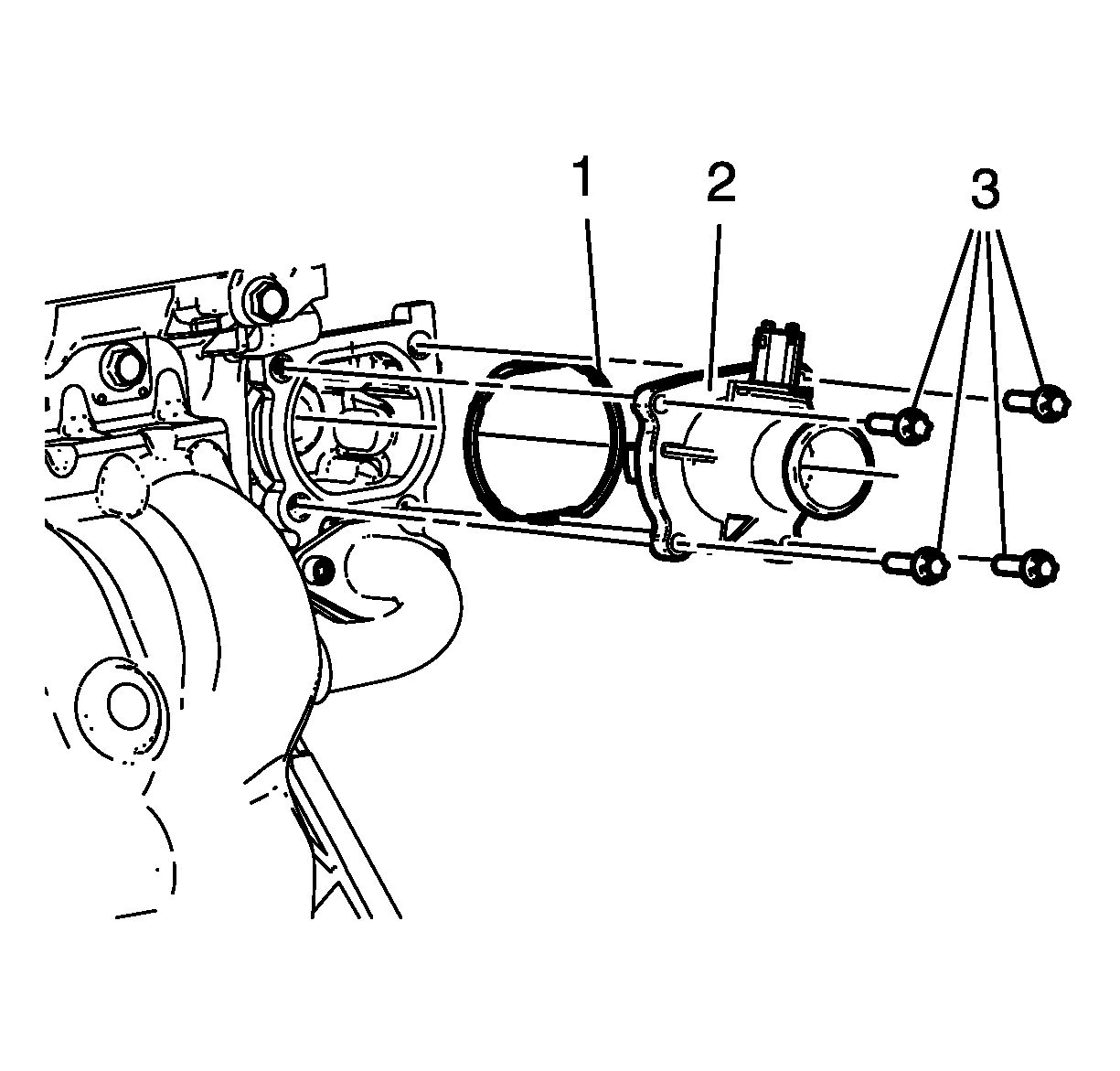

    Fig 1: Identifying Engine Coolant Thermostat Assembly
    GM2028006Courtesy of GENERAL MOTORS COMPANY
  3. Install the engine coolant thermostat assembly (2).
  4. Install the 4 engine coolant thermostat bolts (3) and tighten to 8 N.m (71 lb in).
    CAUTION: Refer to Fastener Caution .
