Measurement Procedure

WARNING: This page is about a different variant/trim than selected.
  1. Install the EN-498-B  gauge (2).

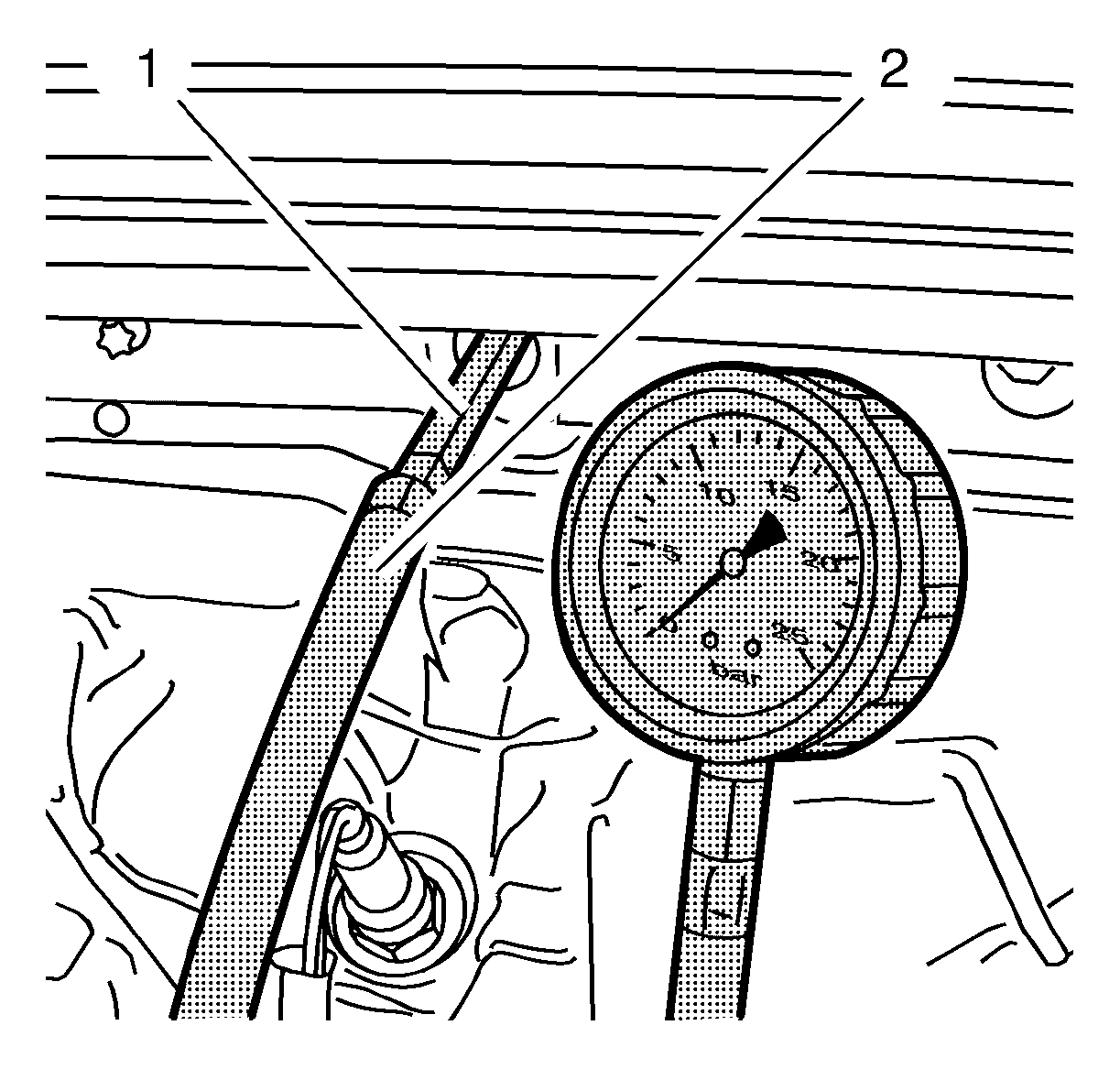

    Fig 1: Oil Pressure Test Gauge
    GM2501435Courtesy of GENERAL MOTORS COMPANY
  2. Install the EN-232  adapter (1).
  3. Start the engine.
  4. Check oil pressure.

    At idling speed, the oil pressure must be at least 130 kPa (18.85 psi) and the oil temperature must be 80°C (170°F) or more.
