Removal Procedure

WARNING: This page is about a different variant/trim than selected.
  1. Open the hood.
  2. Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle .
  3. Remove the right front wheelhouse liner. Refer to Front Wheelhouse Liner Replacement
  4. Lower the vehicle.
  5. Remove the timing belt upper front cover. Refer to Timing Belt Upper Front Cover Removal .
  6. Remove the spark plugs. Refer to Spark Plug Replacement .
  7. Detach the engine wiring harness from intake manifold, cylinder head cover and engine wiring harness bracket.
  8. Remove the coolant expansion tank closure cap.
  9. Remove the oil dipstick.
  10. Set up the crankshaft.
    Fig 1: View Of Crankshaft TDC Position
    GM1936993Courtesy of GENERAL MOTORS COMPANY
  11. Move the crankshaft in the direction of the engine rotation to the first cylinder TDC position (mark 1).
  12. Apply guidance marks.

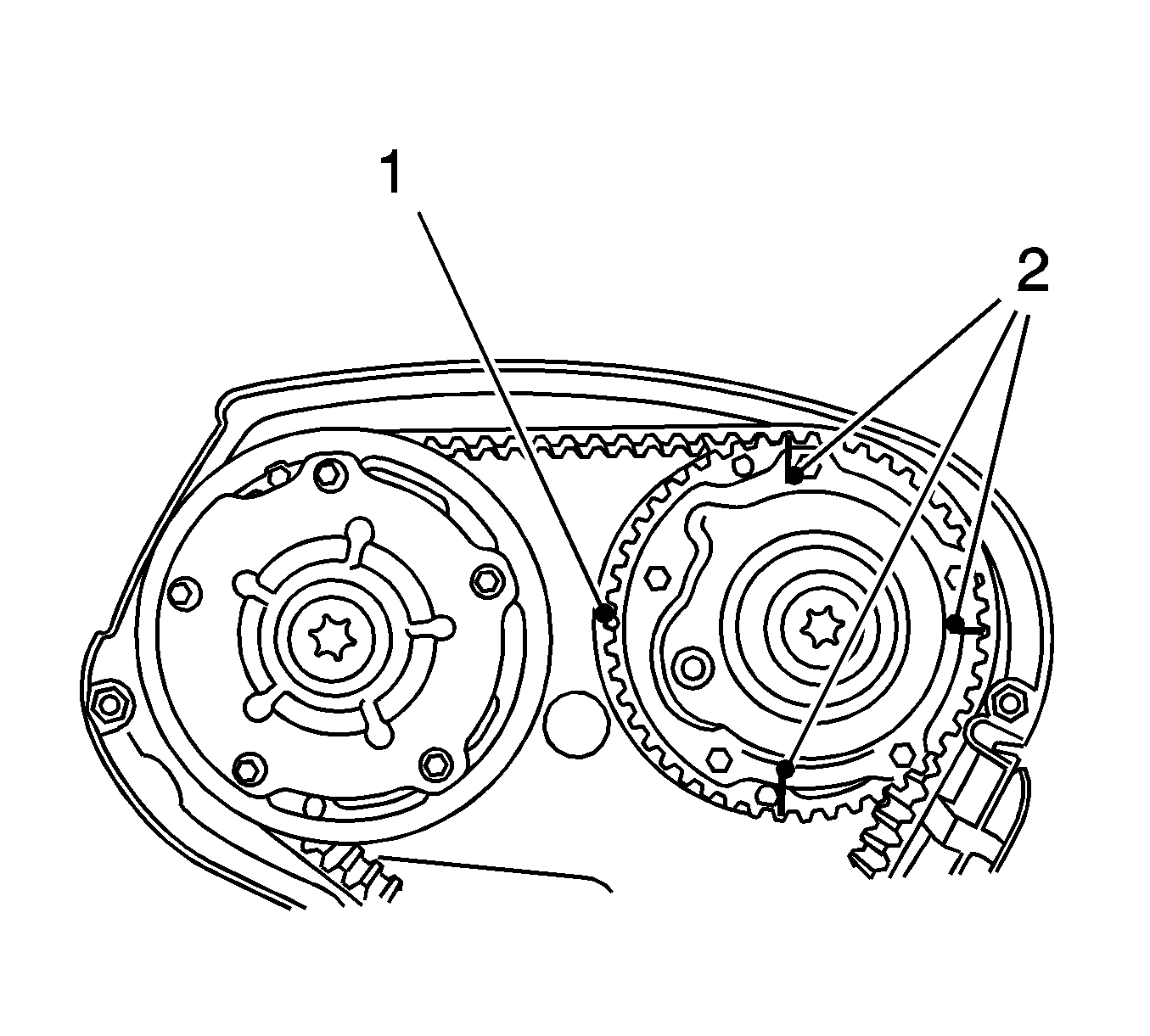

    Fig 2: View Of Guidance Marks
    GM1945804Courtesy of GENERAL MOTORS COMPANY
  13. Attach 3 markings (2) as an aid to one of the camshaft adjusters, each one offset by 90° to the marking applied (1).
