MF3 and MZ0

WARNING: This page is about a different variant/trim than selected.

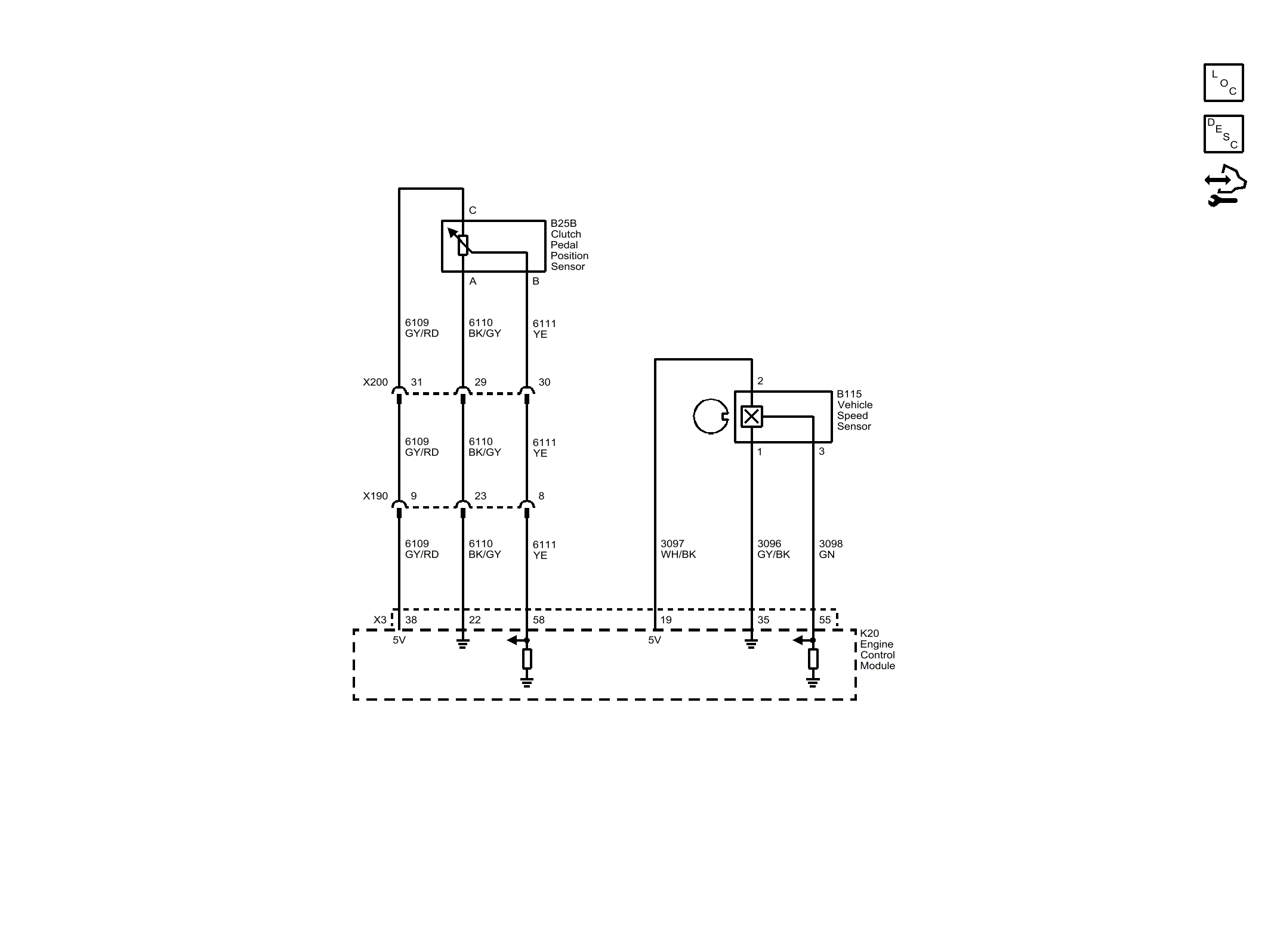

Fig 1: MF3 and MZ0

GM3814606

Courtesy of GENERAL MOTORS COMPANY
