Installation Procedure

WARNING: This page is about a different variant/trim than selected.
  1. Install the transmission rear mount (2).

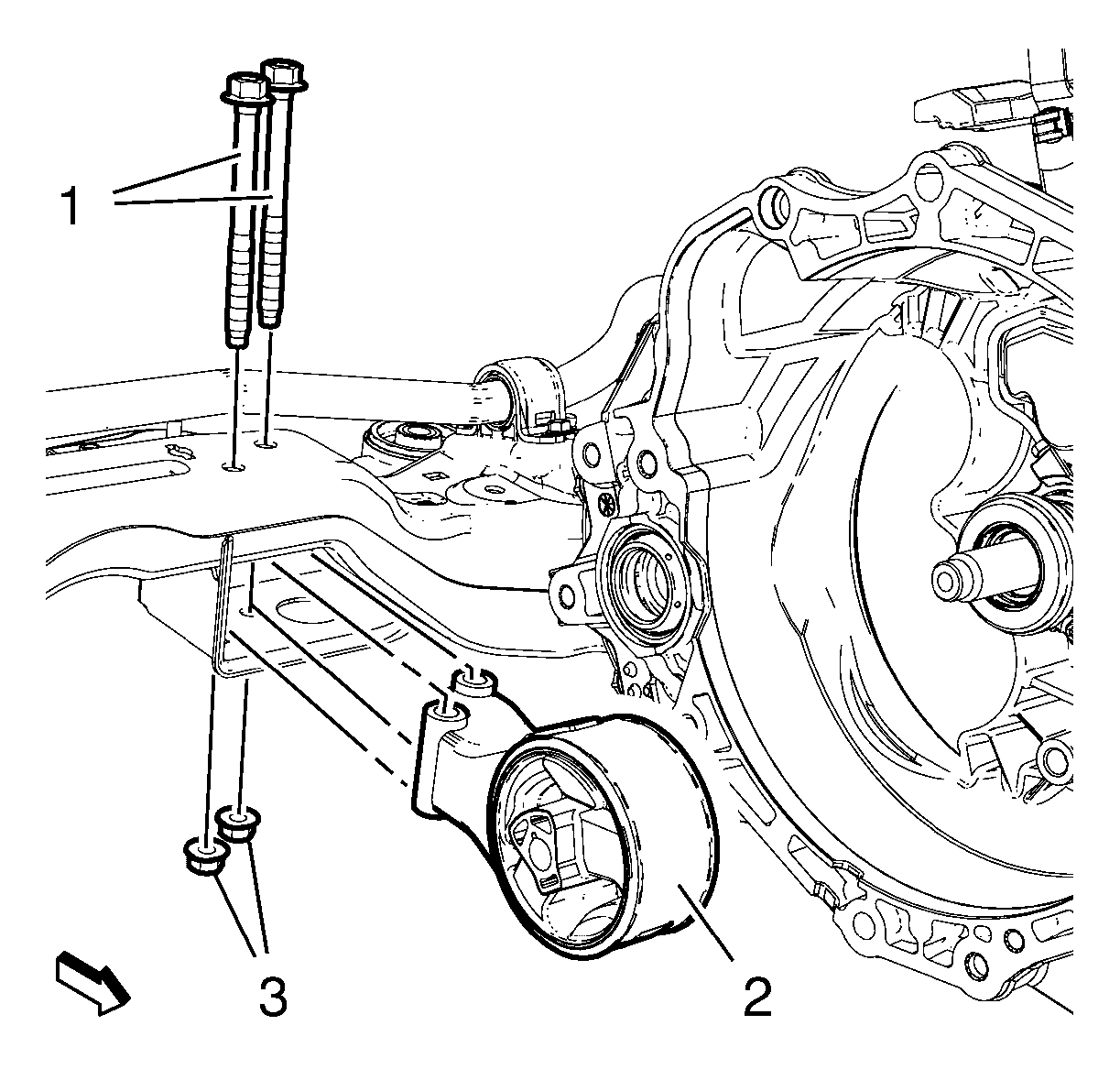

    Fig 1: Transmission Rear Mount, Nuts And Bolts
    GM2191543Courtesy of GENERAL MOTORS COMPANY
  2. Install the 2 transmission rear mount bolts (1).
  3. Install the 2 transmission rear mount nuts (3) and tighten to 110 N.m (82 lb ft).
    CAUTION: Refer to Fastener Caution .
  4. Install the transmission rear mount bracket. Refer to Transmission Mount Bracket Replacement - Rear .
  5. If equipped with Electronic Power Steering, install the steering gear. Refer to Steering Gear Replacement .
