Installation Procedure

WARNING: This page is about a different variant/trim than selected.

Install the transmission mount (1).

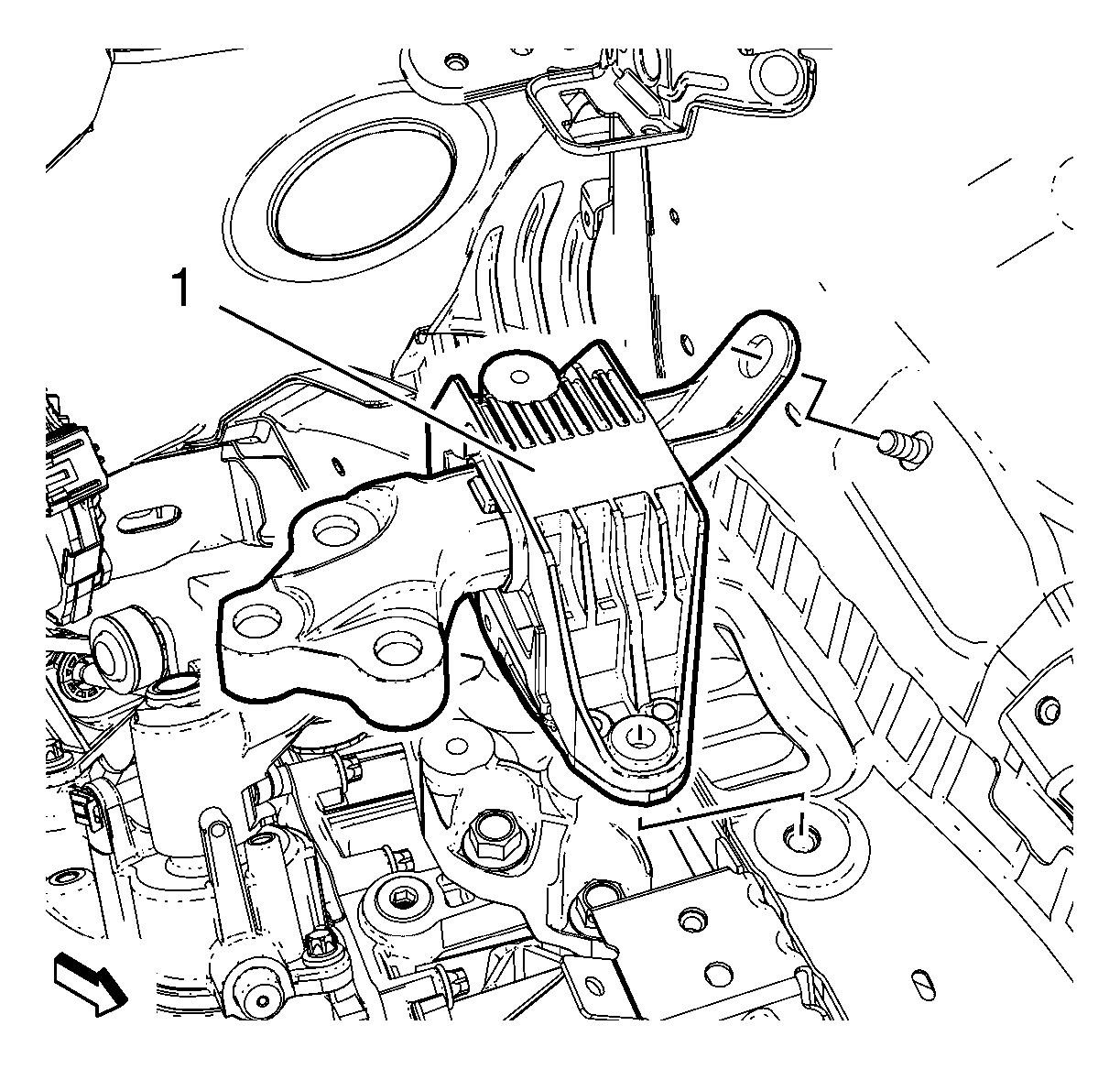

Fig 1: Transmission Mount
Courtesy of GENERAL MOTORS COMPANY
Install the 2 transmission mount bolts (1, 3) and tighten to 62 N.m (46 lb ft).

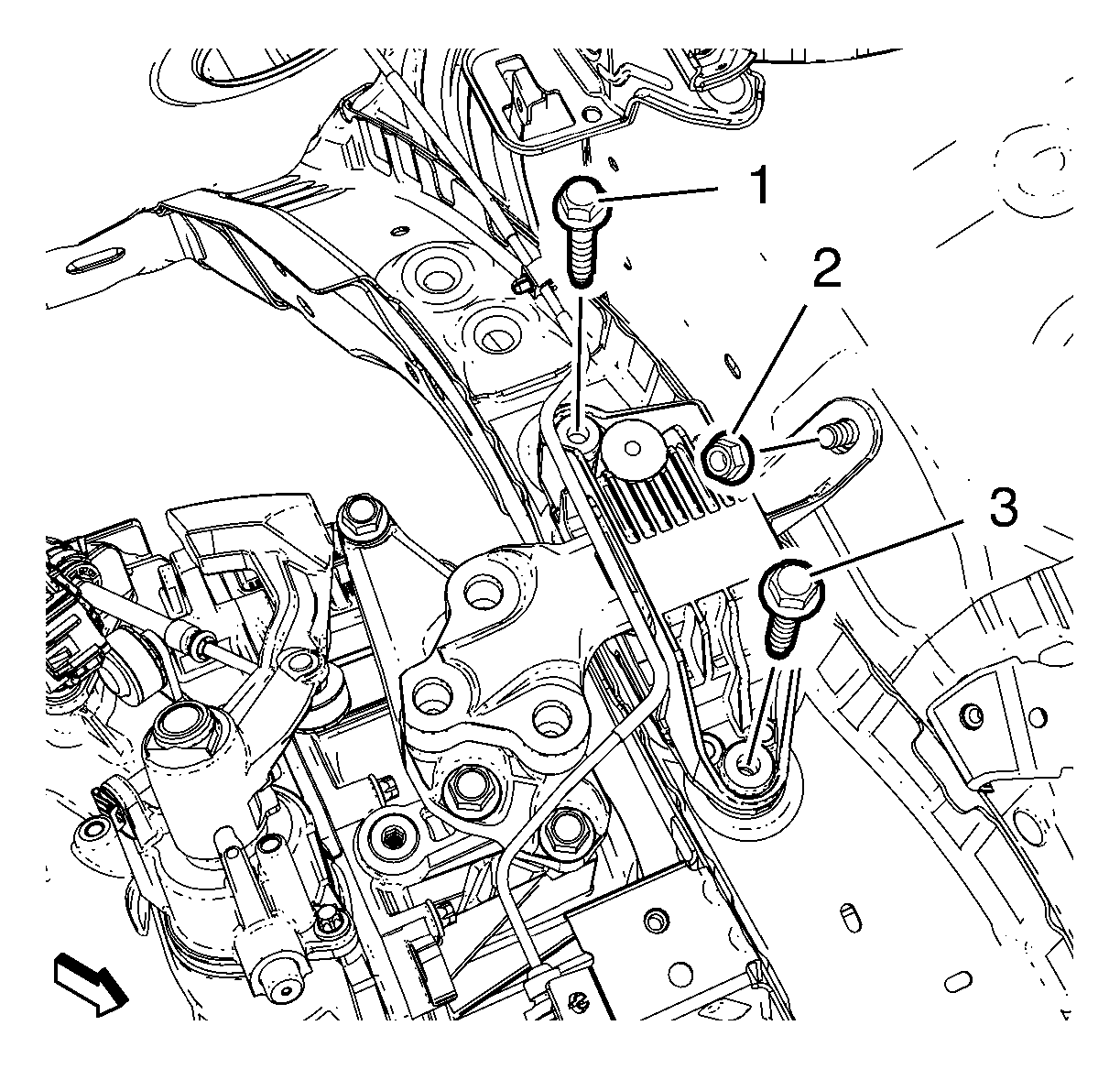

Fig 2: Transmission Mount Nuts And Bolts
Courtesy of GENERAL MOTORS COMPANY

CAUTION: Refer to Fastener Caution .
Install the transmission mount nut (2) and tighten to 62 N.m (46 lb ft).
Install the 3 NEW transmission mount bolts (1) and tighten a first pass to 50 N.m (37 lb ft).

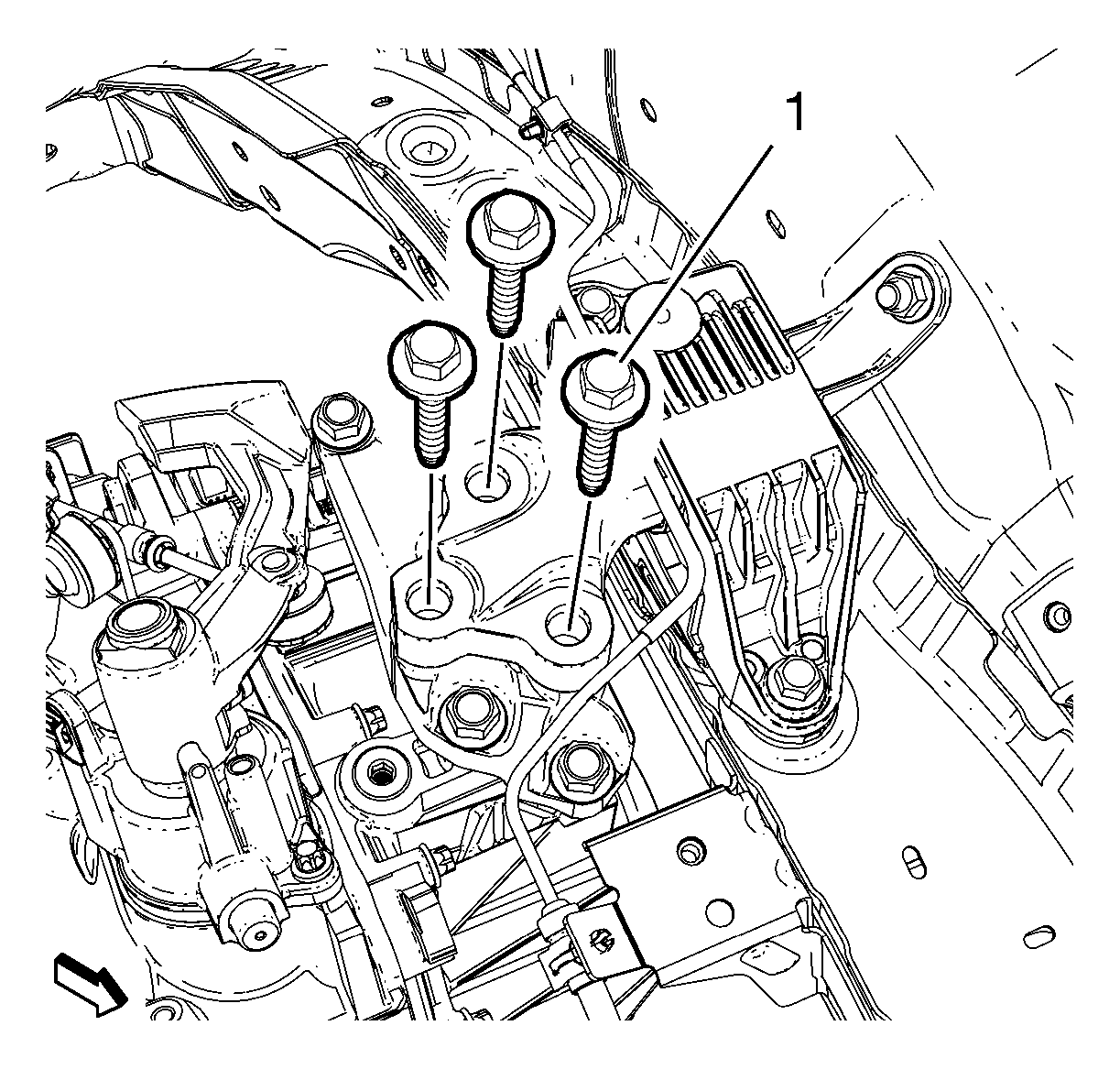

Fig 3: Transmission Mount Bolts
Courtesy of GENERAL MOTORS COMPANY

CAUTION: Refer to Torque-to-Yield Fastener Caution .
Tighten the 3 NEW transmission mount bolts (1) a final pass to an additional 60 - 75 degrees, using the EN-45059 meter.
Remove the engine lifter.
Install the battery tray. Refer to Battery Tray Replacement .
