Installation Procedure

WARNING: This page is about a different variant/trim than selected.
  1. Install transmission mount bracket (2).

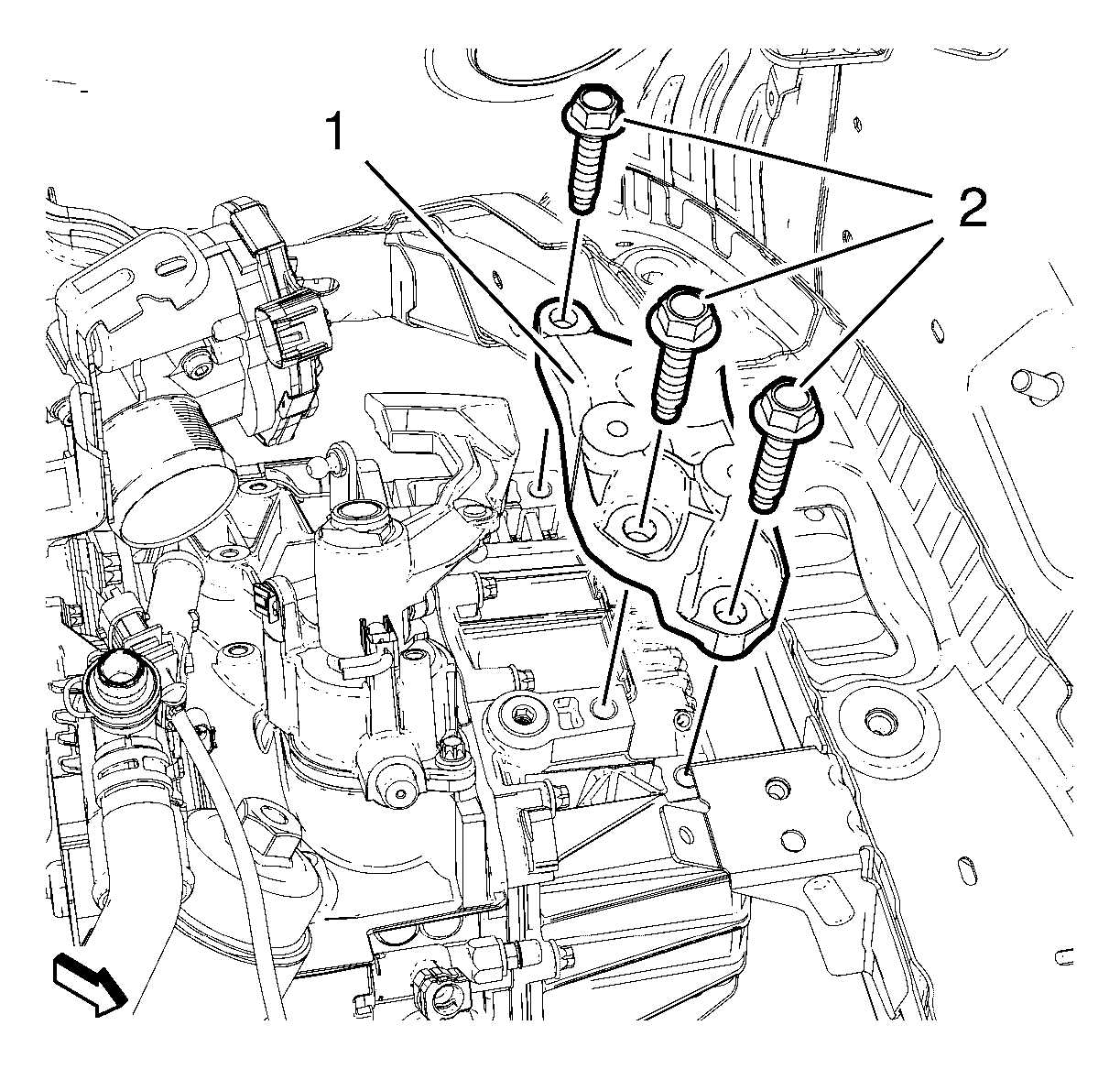

    Fig 1: Transmission Mount Bracket And Bolts
    GM2191520Courtesy of GENERAL MOTORS COMPANY
  2. Install 3 transmission mount bracket bolts (1) and tighten to 100 N.m (74 lb ft).
    CAUTION: Refer to Fastener Caution .
  3. Install transmission mount - left side Transmission Mount Replacement - Left Side .
  4. Install battery tray. Refer to Battery Tray Replacement .
