Installation Procedure

WARNING: This page is about a different variant/trim than selected.

Install transmission front mount (2).

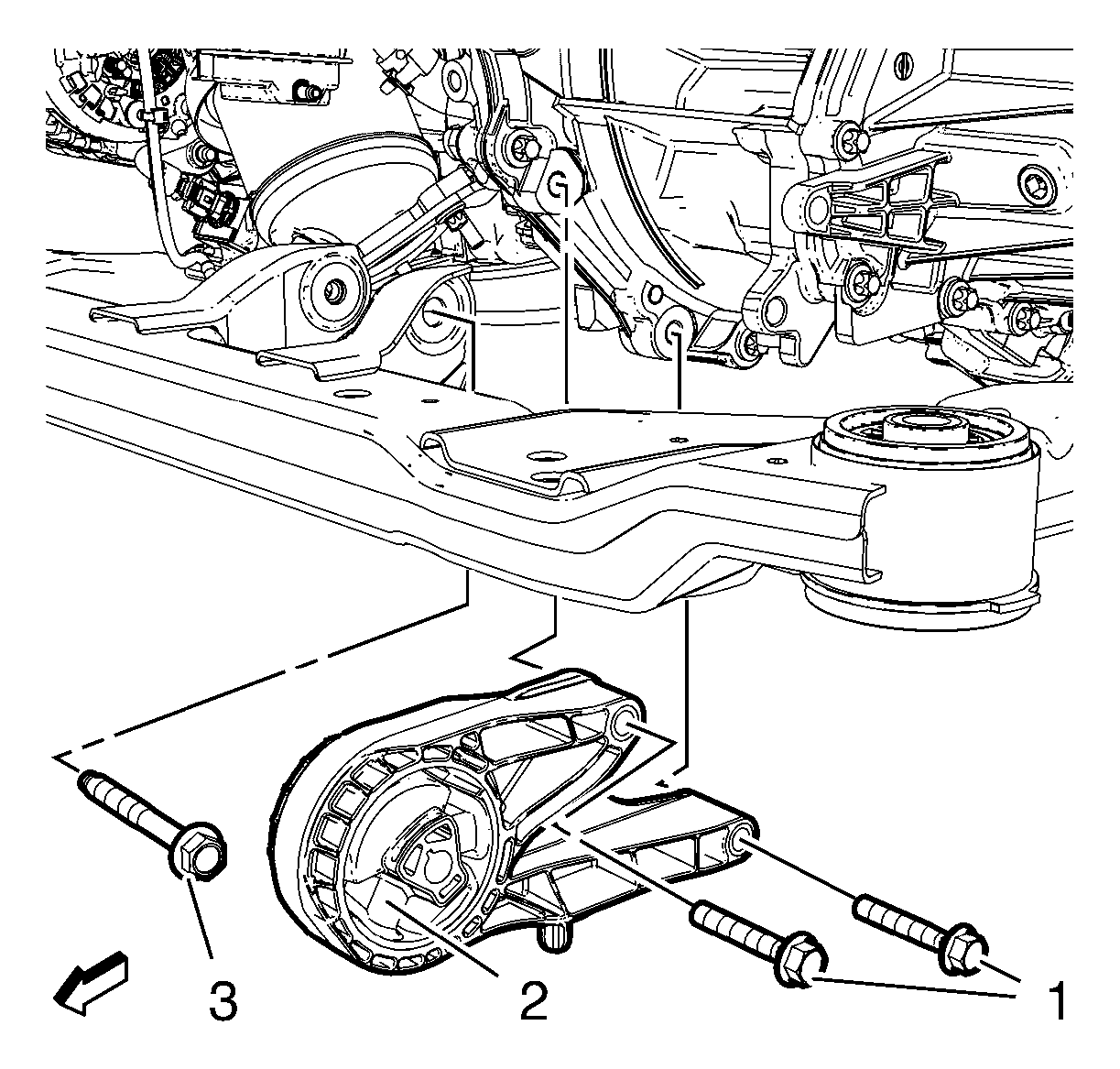

Fig 1: Transmission Front Mount Bolts
Courtesy of GENERAL MOTORS COMPANY
Install 2 transmission front mount bolts (1) and tighten to 100 N.m (74 lb ft).
CAUTION: Refer to Fastener Caution .
Install transmission front mount bolt (1) and tighten to 100 N.m (74 lb ft).

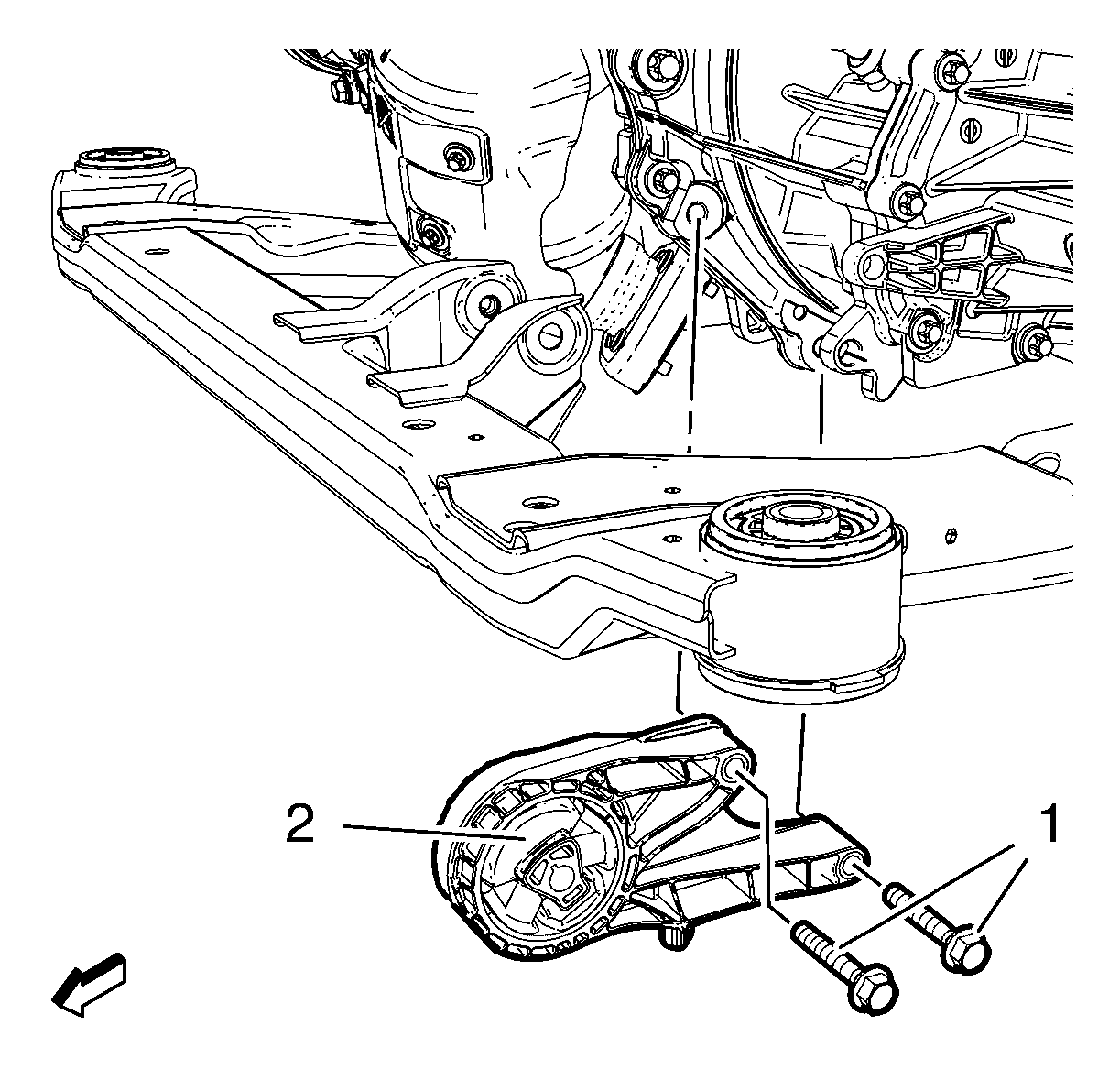

Fig 2: Transmission Front Mount And Bolt
Courtesy of GENERAL MOTORS COMPANY
If equipped, install the front compartment insulator. Refer to Front Compartment Insulator Replacement .
Lower vehicle.
