Filling Procedure

WARNING: This page is about a different variant/trim than selected.
  1. Lower the vehicle.
  2. Without disconnecting the electrical connector, unclip the engine control module with the bracket from the battery tray and hang aside. Refer to Engine Control Module Replacement .
  3. Remove the fluid fill plug (1).

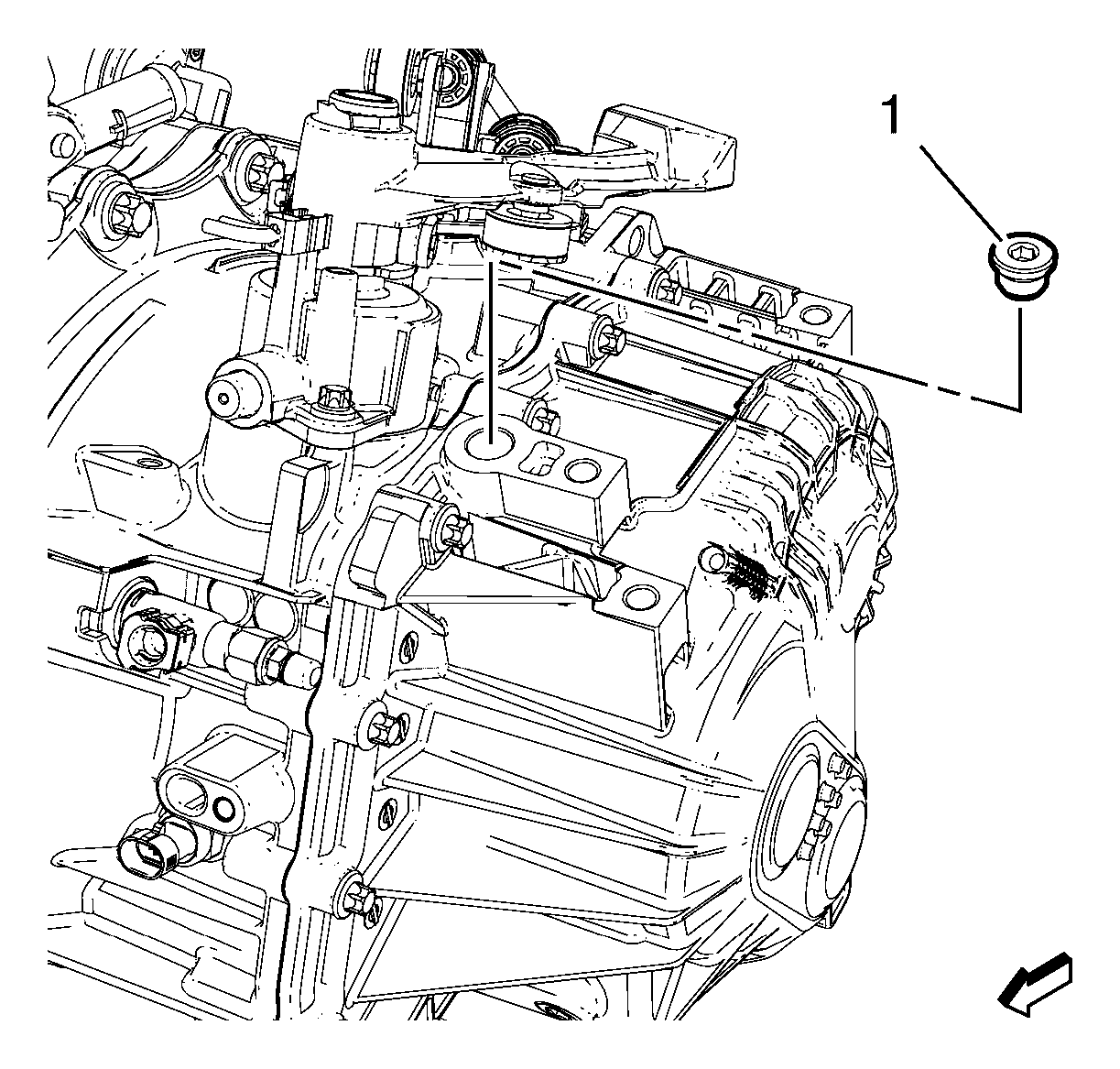

    Fig 1: Transmission Fluid Fill Plug
    GM2191525Courtesy of GENERAL MOTORS COMPANY
    NOTE: Prior to the removing of any plug, clean the surrounding area of the plug.
  4. Compare the amount of fluid drained to the transmission refill capacity. Fill the transmission with the appropriate amount of fluid. Refer to Approximate Fluid Capacities .
    NOTE: This transmission is NOT equipped with a fluid level dipstick or oil level setting plug. The fluid level can only be checked by performing the draining and filling procedure.
  5. Install the fluid fill plug (1) and tighten to 30 N.m (22 lb ft).
  6. Clip in the engine control module. Refer to Engine Control Module Replacement .
