Removal Procedure

WARNING: This page is about a different variant/trim than selected.
  1. Remove battery tray. Refer to Battery Tray Replacement .
  2. Using a suitable pry tool, carefully remove shift lever and selector lever cable (2) from transmission control housing (3) using.
    Fig 1: Selector Lever Cable, Bracket And Transmission Control Housing
    GM2191413Courtesy of GENERAL MOTORS COMPANY
  3. Remove shift lever and selector lever cable from shift lever and selector lever cable bracket (1).
  4. Remove 2 shift lever and selector lever cable bracket bolts (1).

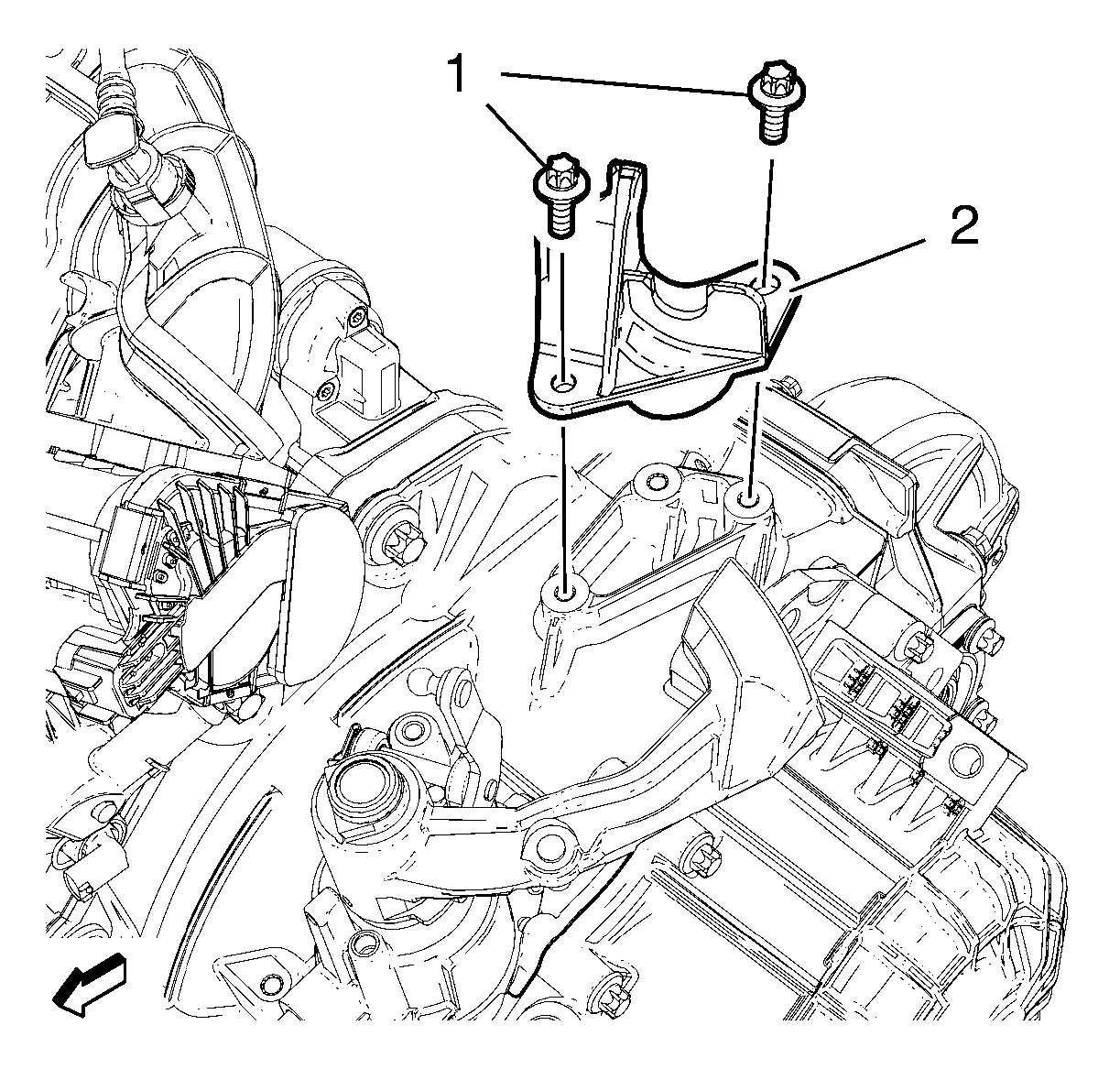

    Fig 2: Selector Lever Cable Bracket And Bolts
    GM2191517Courtesy of GENERAL MOTORS COMPANY
  5. Remove shift lever and selector lever cable bracket (2).
