Removal Procedure

WARNING: This page is about a different variant/trim than selected.

Instrument Panel Lower Trim Panel Replacement - Left Side »Remove
Instrument Panel Lower Trim Panel Replacement - Right Side »Remove
Automatic or Manual Transmission Control Lever Trim Cover Replacement »Remove
Remove the rear air outlet duct adapter (1).

Fig 1: Identifying Rear Air Outlet Duct Adapter
Courtesy of GENERAL MOTORS COMPANY
Remove the shift lever and selector lever cable adjust locks (1).

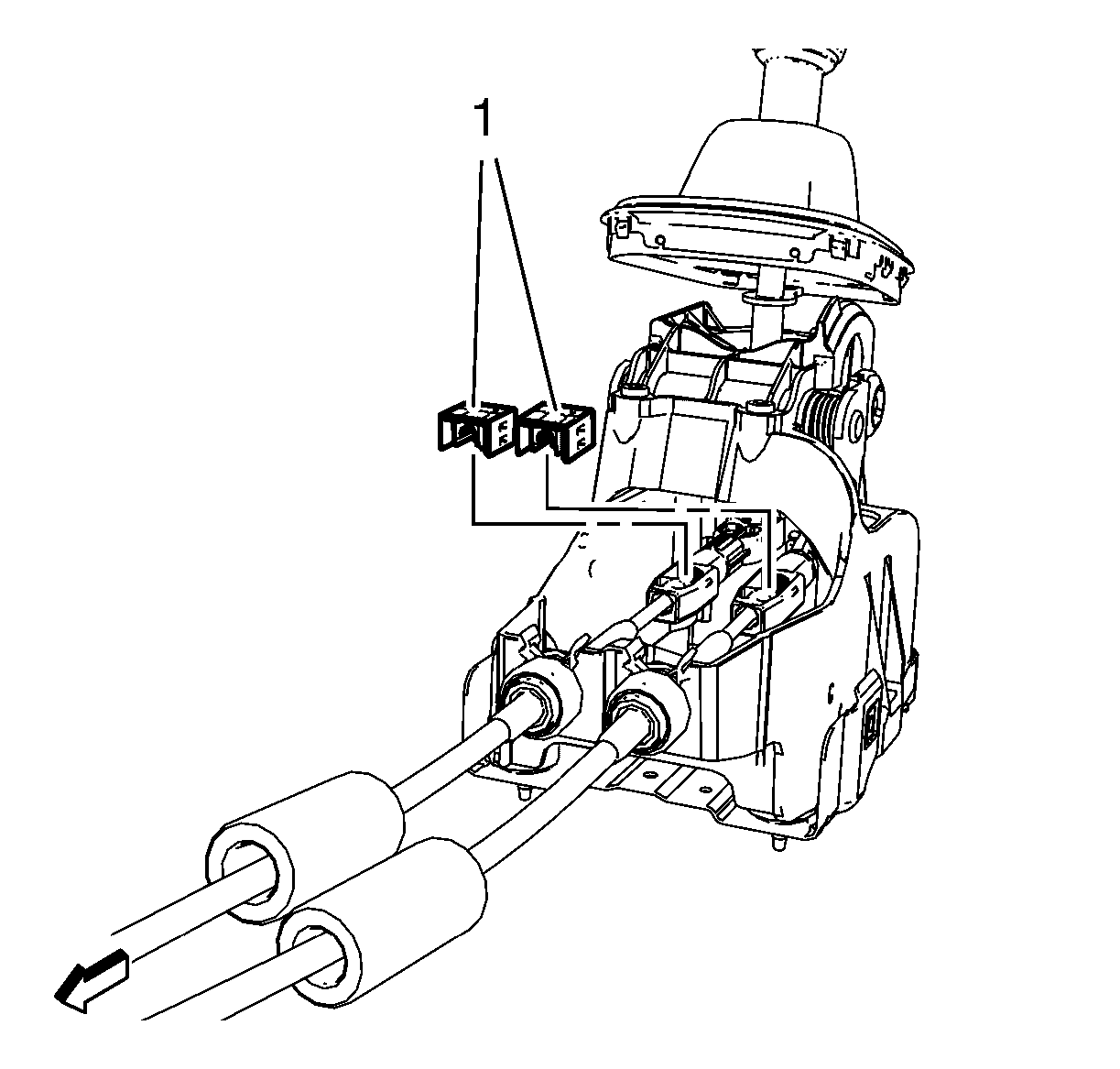

Fig 2: Shift Lever And Select Lever Cable Adjust Locks
Courtesy of GENERAL MOTORS COMPANY
Remove the shift lever and selector lever cable retainer (1) from the transmission control.

Fig 3: Identifying Shift Lever And Selector Lever Cable Retainer
Courtesy of GENERAL MOTORS COMPANY
Disconnect the shift lever and selector lever cables (2) from the shift control adjusters.
Battery Tray Replacement »Remove
Remove the shift lever and selector lever cables (2) from the shift control housing (3).

Fig 4: Selector Lever Cable, Bracket And Transmission Control Housing
Courtesy of GENERAL MOTORS COMPANY

Rotate the attachment to the side to release it from the ball stud.
Remove shift lever and selector lever cable from shift lever and selector lever cable bracket (1) by pushing back locking rings in counter driving direction.
Remove shift lever and selector lever cable (1) from bulkhead.

Fig 5: Selector Lever Cable
Courtesy of GENERAL MOTORS COMPANY
Remove shift lever and selector cable from inside the vehicle.
