Installation Procedure

WARNING: This page is about a different variant/trim than selected.
  1. Install shift lever and selector lever cable to inside the vehicle.
    Fig 1: Selector Lever Cable
    GM2191408Courtesy of GENERAL MOTORS COMPANY
    NOTE: Install the guide with the white marking upwards to the bulkhead. Do not cross the cables.
  2. Install shift lever and selector lever cable (1) to bulkhead.
  3. Check for correct fit.
  4. Install the shift lever and selector lever cables (2) to the shift control housing (3) and to the selector and shift lever cable bracket (1).
    Fig 2: Selector Lever Cable, Bracket And Transmission Control Housing
    GM2191413Courtesy of GENERAL MOTORS COMPANY
  5. Connect the shift lever and selector lever cables (2) to the shift control adjusters.

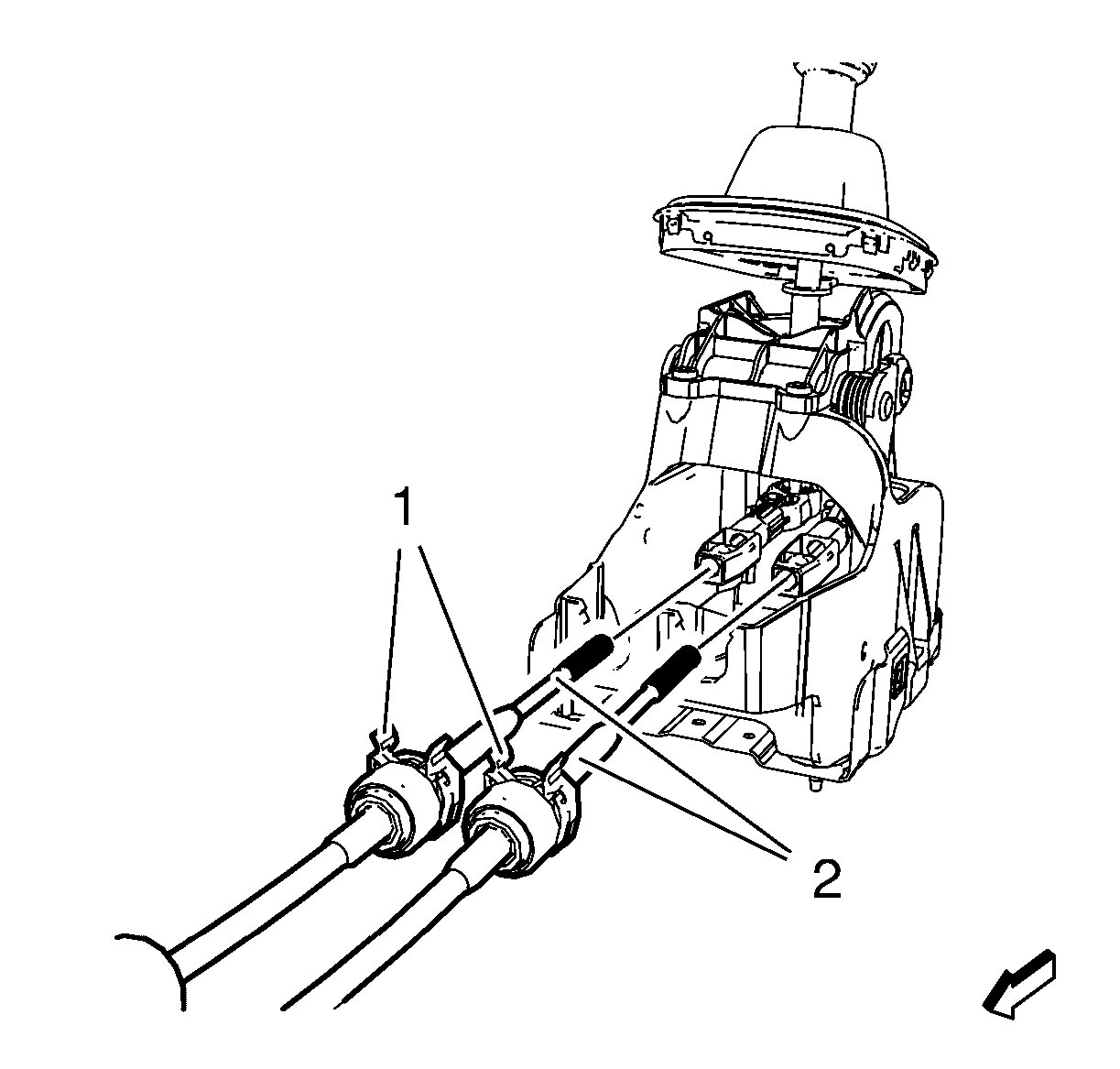

    Fig 3: Identifying Shift Lever And Selector Lever Cable Retainer
    GM2027560Courtesy of GENERAL MOTORS COMPANY
  6. Install the shift lever and selector lever cable retainer (1) to the transmission control.
  7. Manual Transmission Shift Lever and Selector Lever Cable Adjustment »Adjust
  8. Install the rear air outlet duct adapter (1).

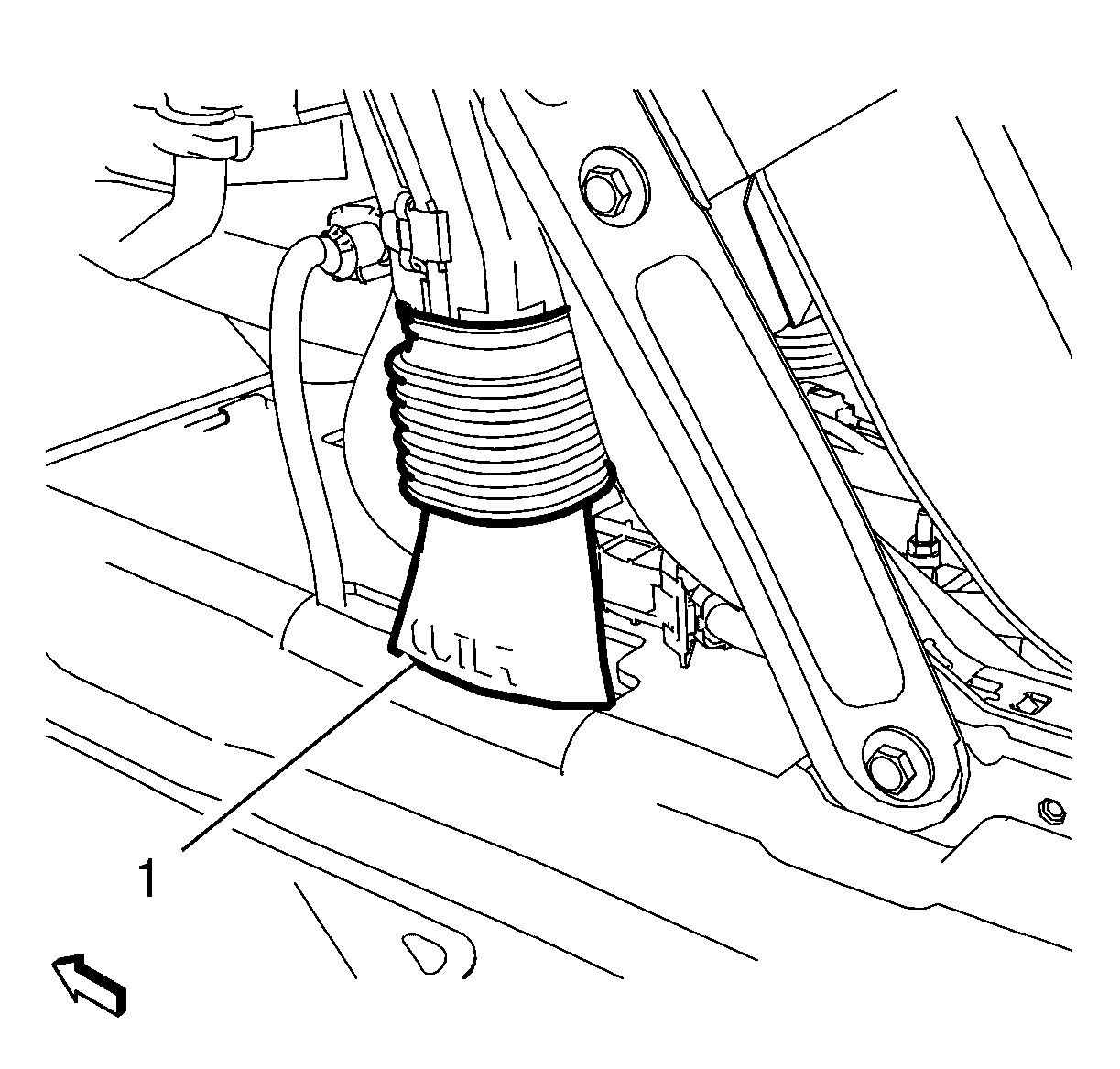

    Fig 4: Identifying Rear Air Outlet Duct Adapter
    GM3608139Courtesy of GENERAL MOTORS COMPANY
  9. Automatic or Manual Transmission Control Lever Trim Cover Replacement »Install
  10. Instrument Panel Lower Trim Panel Replacement - Right Side »Install
  11. Instrument Panel Lower Trim Panel Replacement - Left Side »Install
  12. Battery Tray Replacement »Install
