Removal Procedure

WARNING: This page is about a different variant/trim than selected.
  1. Remove right front wheel drive shaft. Refer to Front Wheel Drive Shaft Replacement - Right Side (without Intermediate Shaft) and Front Wheel Drive Shaft Replacement - Right Side (with Intermediate Shaft) .

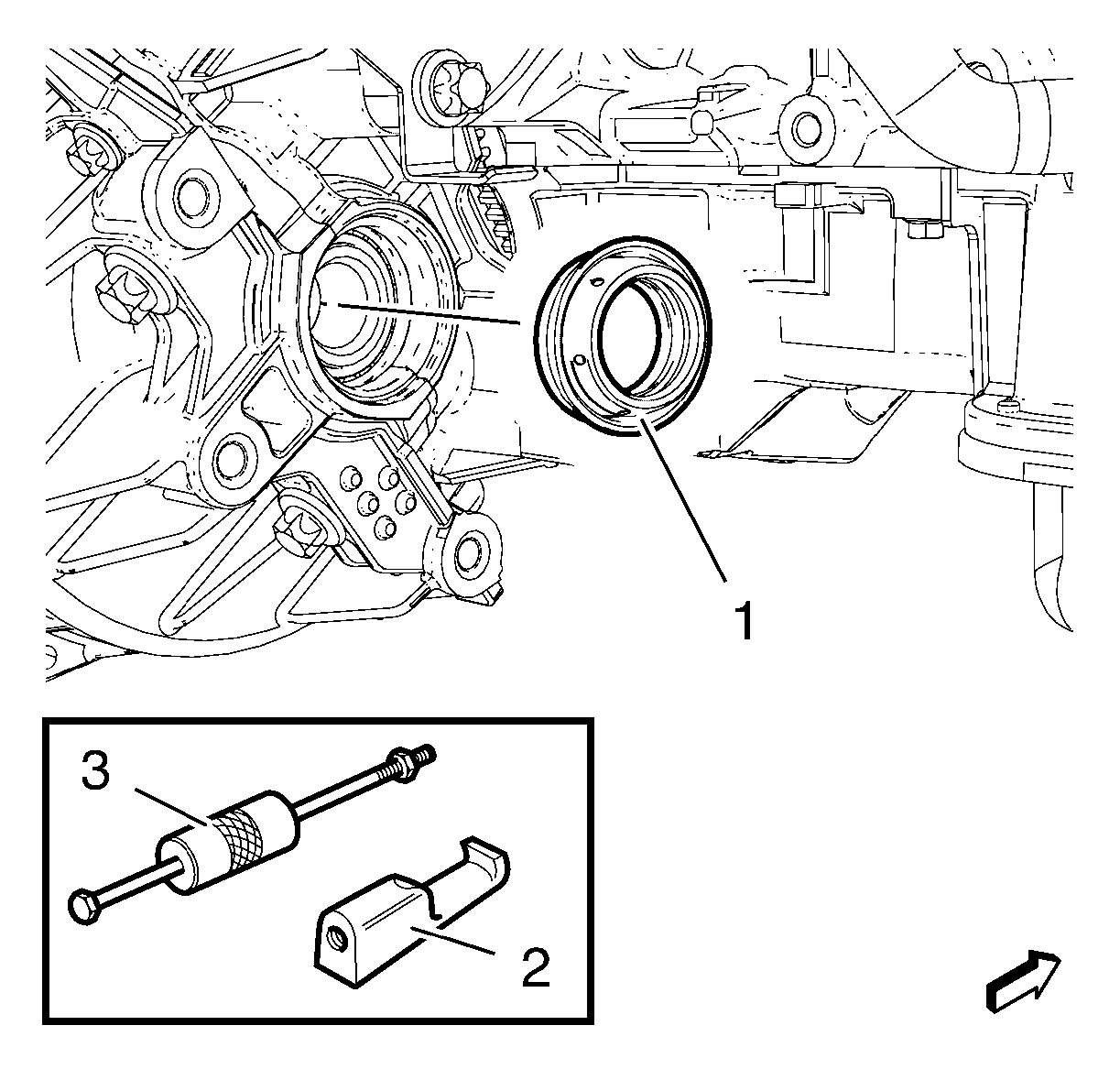

  2. Remove front wheel drive shaft oil seal (1) using DT-7004  slide hammer (3) in conjunction with DT-586  hook (2).
    Fig 1: Front Wheel Drive Shaft Oil Seal And Removal Tools (1.8L LUW)
    GM2191395Courtesy of GENERAL MOTORS COMPANY
