Installation Procedure

WARNING: This page is about a different variant/trim than selected.
  1. Install NEW front wheel drive shaft oil seal (1) using DT-519  installer drift (2) with hammer.

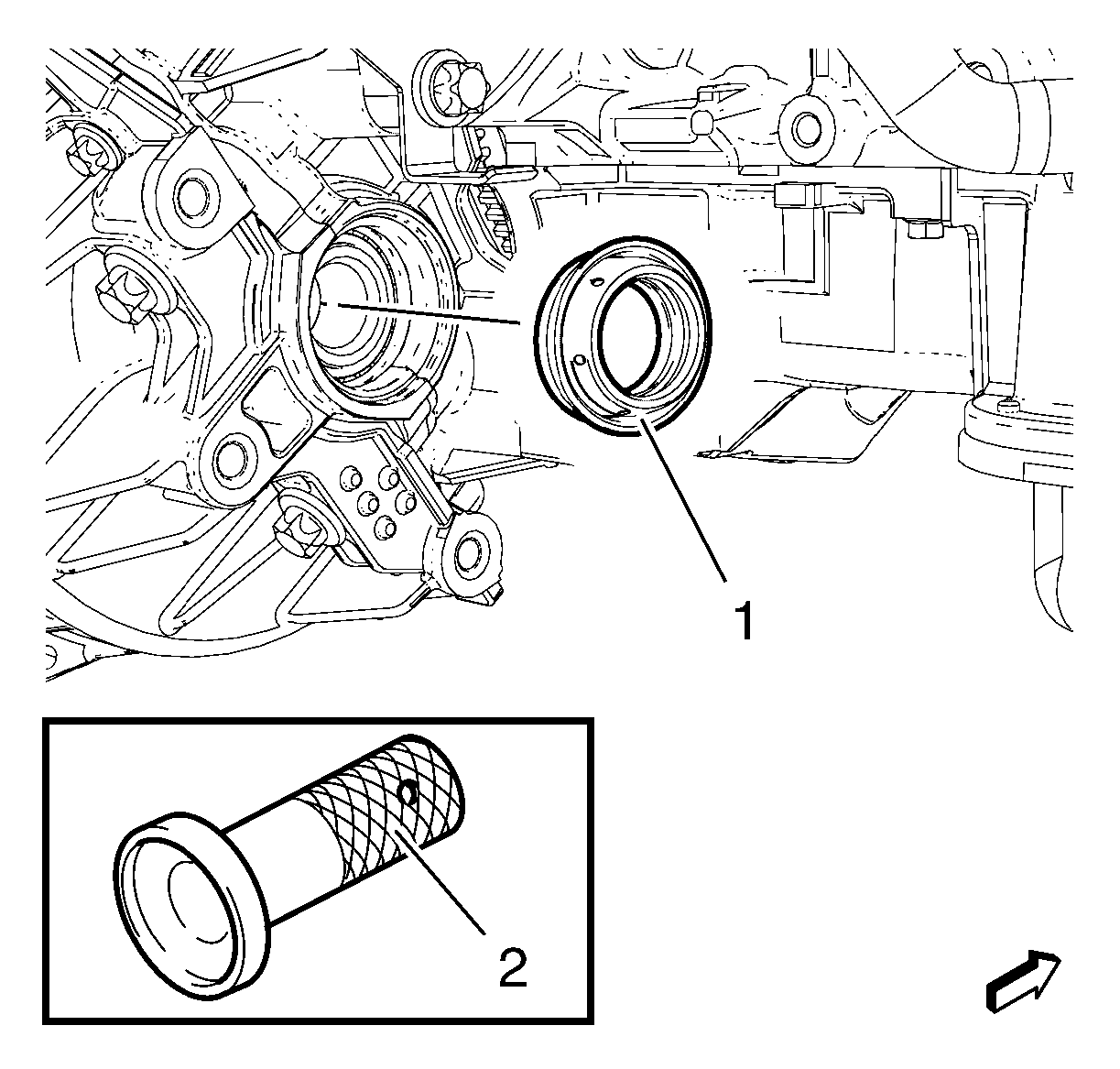

    Fig 1: Front Wheel Drive Shaft Oil Seal And Installation Tools (1.8L LUW)
    GM2191396Courtesy of GENERAL MOTORS COMPANY
    NOTE: Coat seal lips with NEW transmission fluid.
  2. Install right front wheel drive shaft. Refer to Front Wheel Drive Shaft Replacement - Right Side (without Intermediate Shaft) and Front Wheel Drive Shaft Replacement - Right Side (with Intermediate Shaft) .
