Removal Procedure

WARNING: This page is about a different variant/trim than selected.

Remove left front wheel drive shaft. Refer to Front Wheel Drive Shaft Replacement - Left Side .
Remove and DISCARD 4 front differential carrier flange bolts (3) and 4 washers (2).

Fig 1: Front Differential Carrier Flange, Bolts And Washers
Courtesy of GENERAL MOTORS COMPANY

Remove front differential carrier flange (1) from transmission.
Remove front wheel drive shaft oil seal (1) from front differential carrier flange (2).

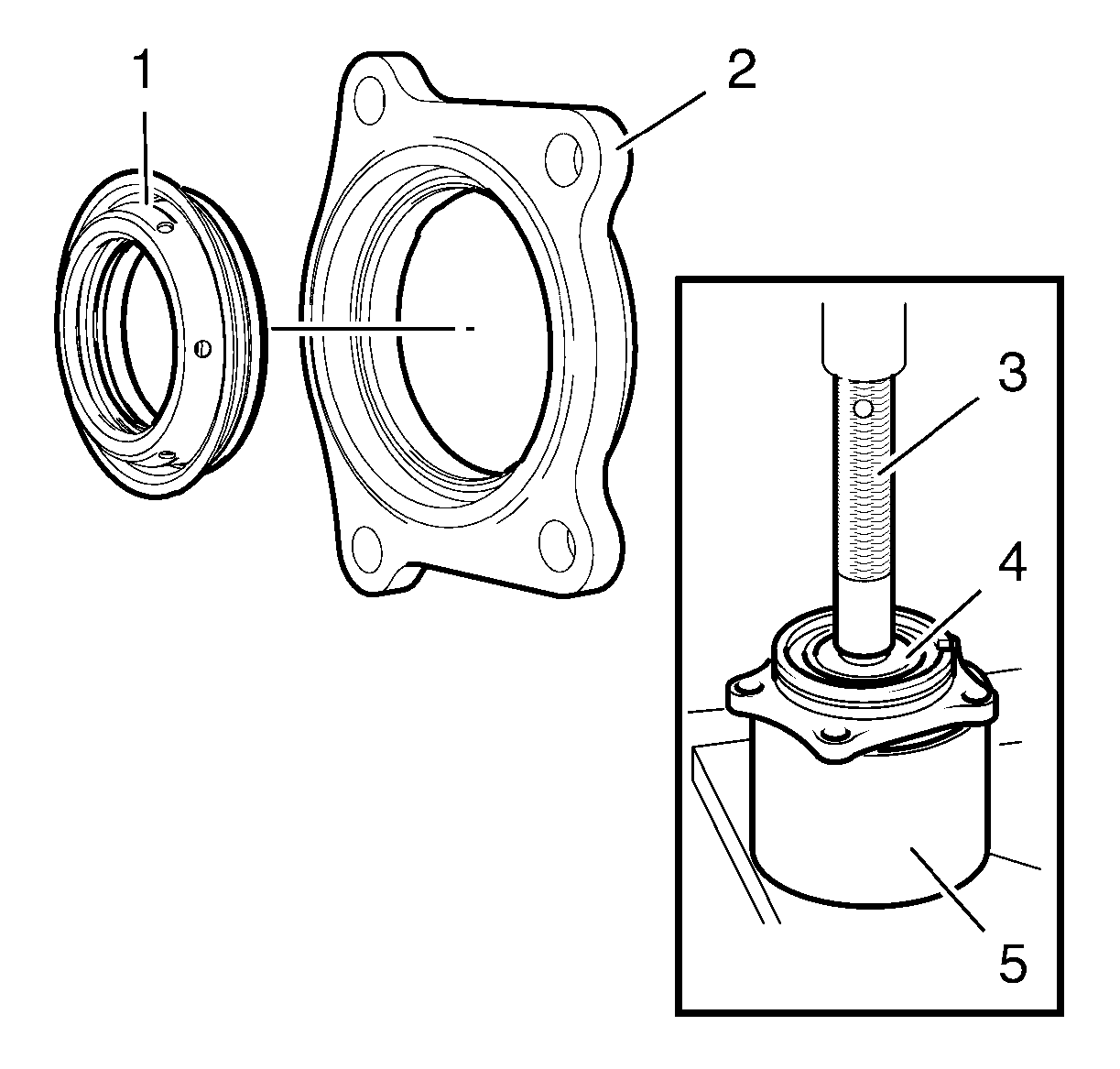

Fig 2: Front Wheel Drive Shaft Oil Seal, Front Differential Carrier Flange And Remover/Installer
Courtesy of GENERAL MOTORS COMPANY

Put front differential carrier flange on CH-466-A remover/installer (5) and press front wheel drive shaft oil seal out of front differential carrier flange using DT-523-1 remover/installer (3) in conjunction with DT-523-3 remover/installer (4).
Remove front differential carrier flange seal (2) from front differential carrier flange (1).

Fig 3: Front Differential Carrier Flange And Seal
Courtesy of GENERAL MOTORS COMPANY
