Installation Procedure

WARNING: This page is about a different variant/trim than selected.

Install NEW front differential carrier flange seal (2) to front differential carrier flange (1).

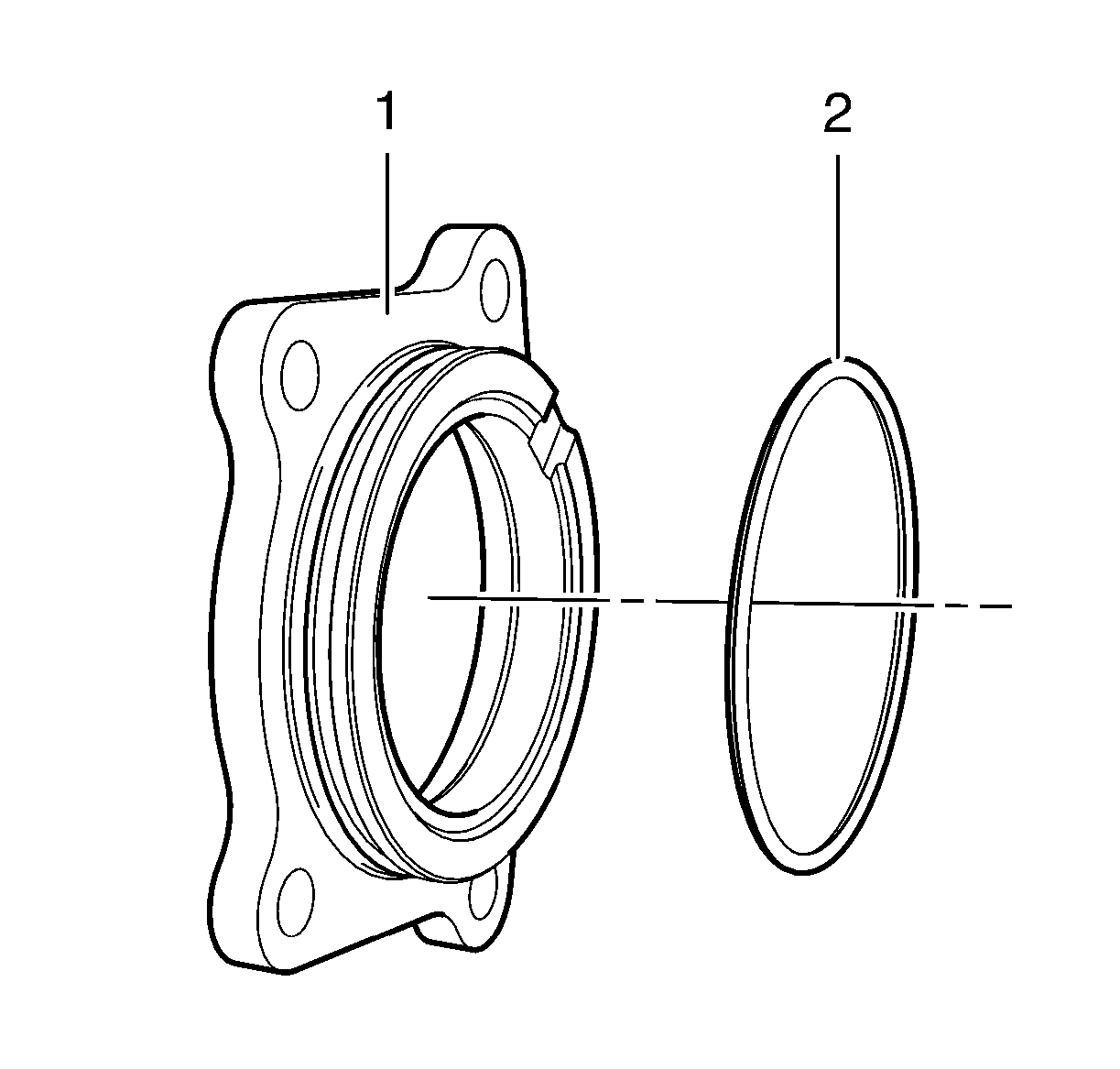

Fig 1: Front Differential Carrier Flange And Seal
Courtesy of GENERAL MOTORS COMPANY

NOTE: Coat front differential carrier flange seal with NEW transmission fluid.
Install NEW front wheel drive shaft oil seal (1) to front differential carrier flange (2).

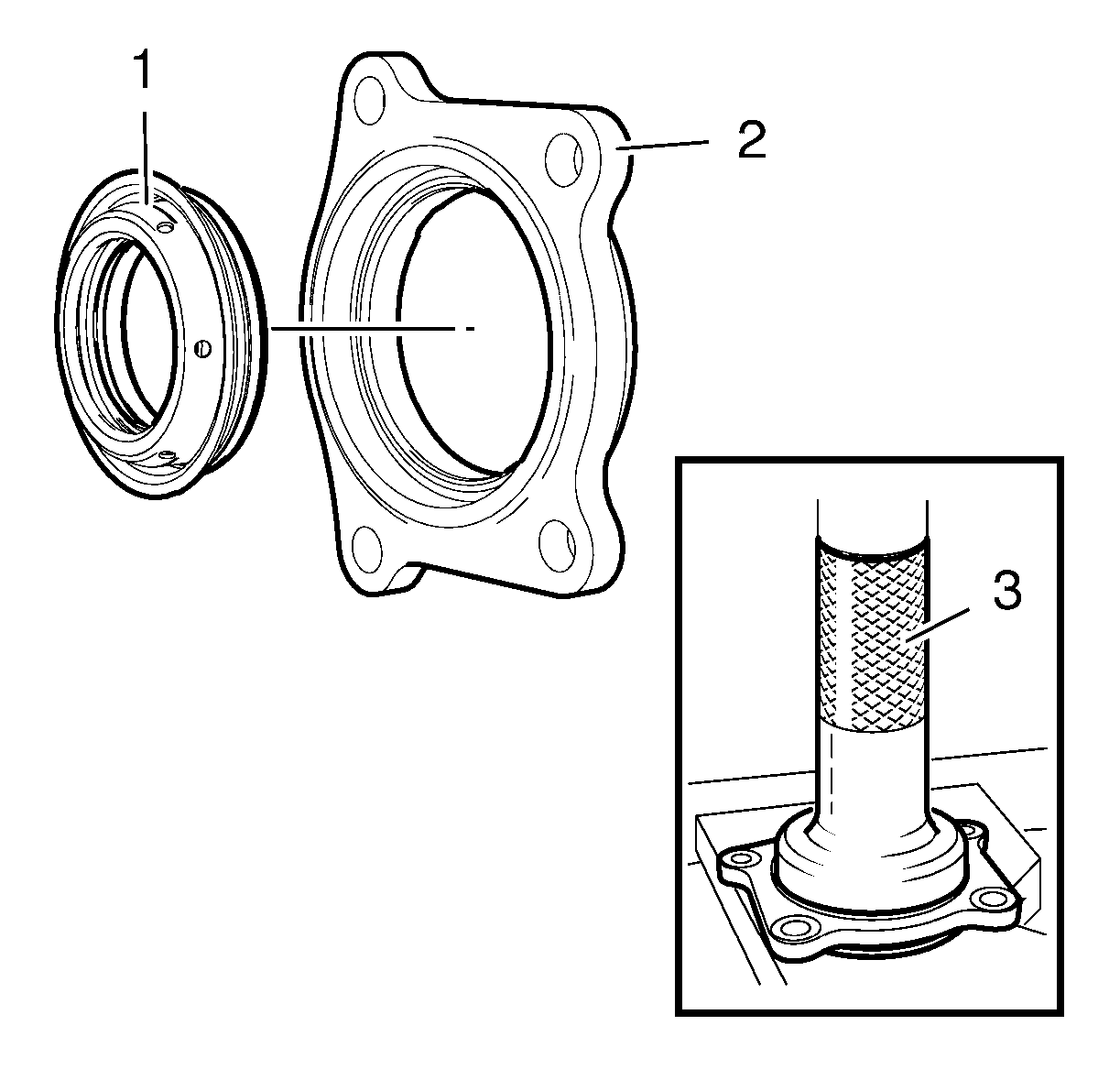

Fig 2: Front Differential Carrier Flange, Front Wheel Drive Shaft Oil Seal And Installer Drift
Courtesy of GENERAL MOTORS COMPANY

NOTE:
Coat front wheel drive shaft oil seal with NEW transmission fluid.

Press front wheel drive shaft oil seal into front differential carrier flange using DT-519 installer drift (3).
Install front differential carrier flange (1) to transmission.

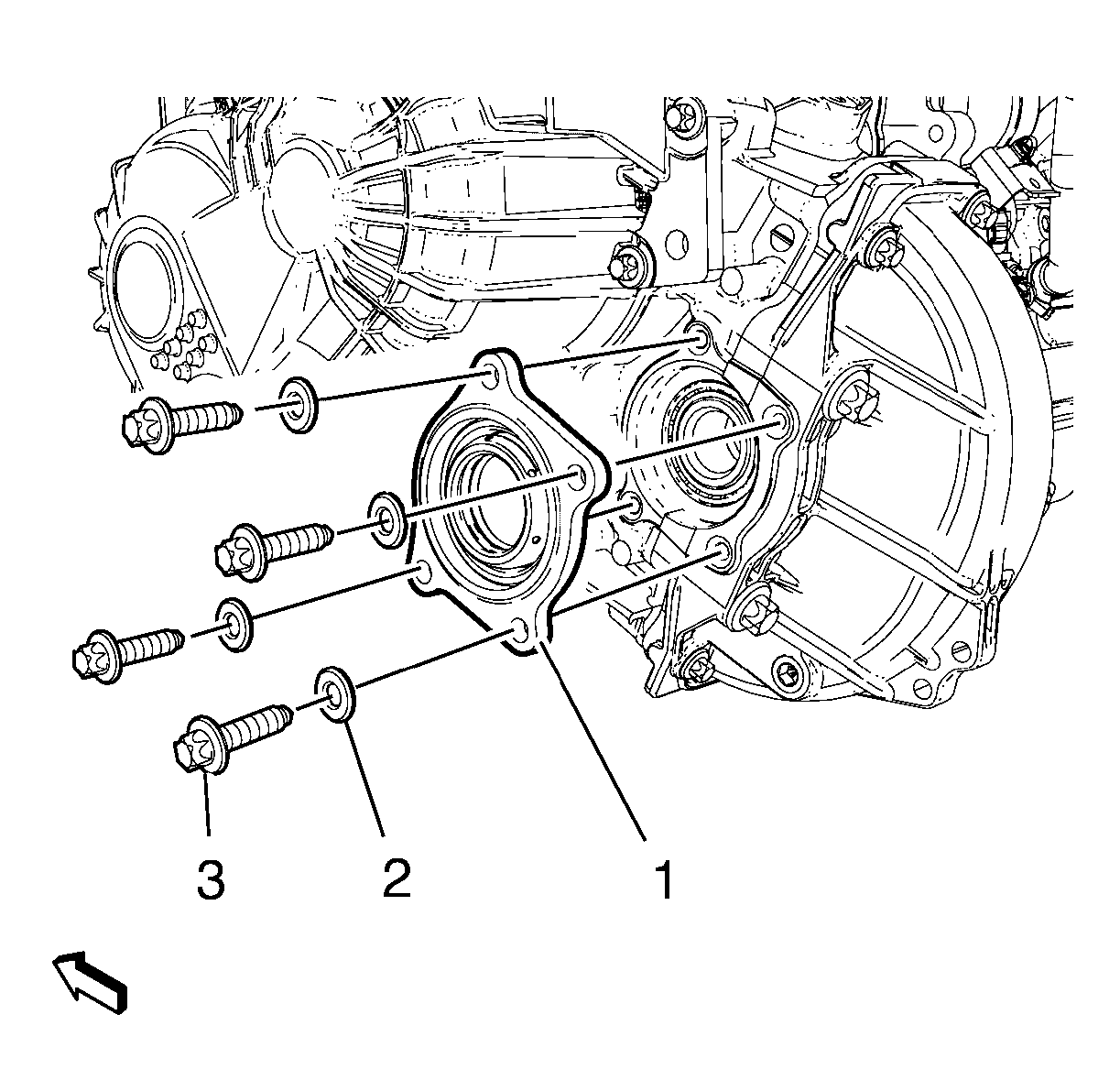

Fig 3: Front Differential Carrier Flange, Bolts And Washers
Courtesy of GENERAL MOTORS COMPANY
Install 4 washers (2) and 4 NEW front differential carrier flange bolts (3) and tighten to 20 N.m +45° (15 lb ft +45°).
CAUTION: Refer to Fastener Caution .

CAUTION: Refer to Torque-to-Yield Fastener Caution .
Install left front wheel drive shaft. Refer to Front Wheel Drive Shaft Replacement - Left Side .
