Power Flow in the Individual Gears

WARNING: This page is about a different variant/trim than selected.

The following diagrams show the flow of power in the individual gears.

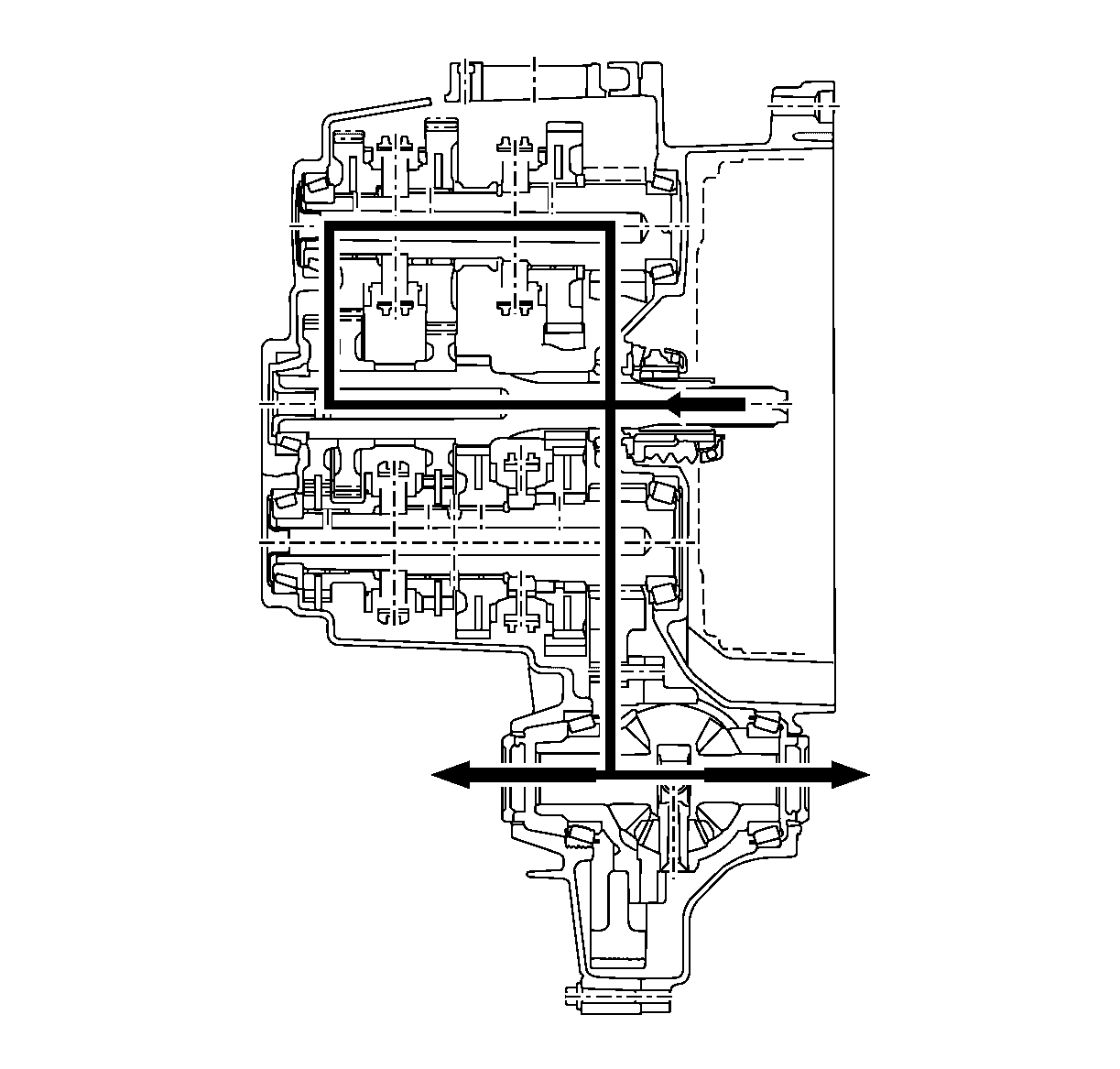

Fig 1: Transmission 1st Gear Power Flow

Courtesy of GENERAL MOTORS COMPANY

1st gear

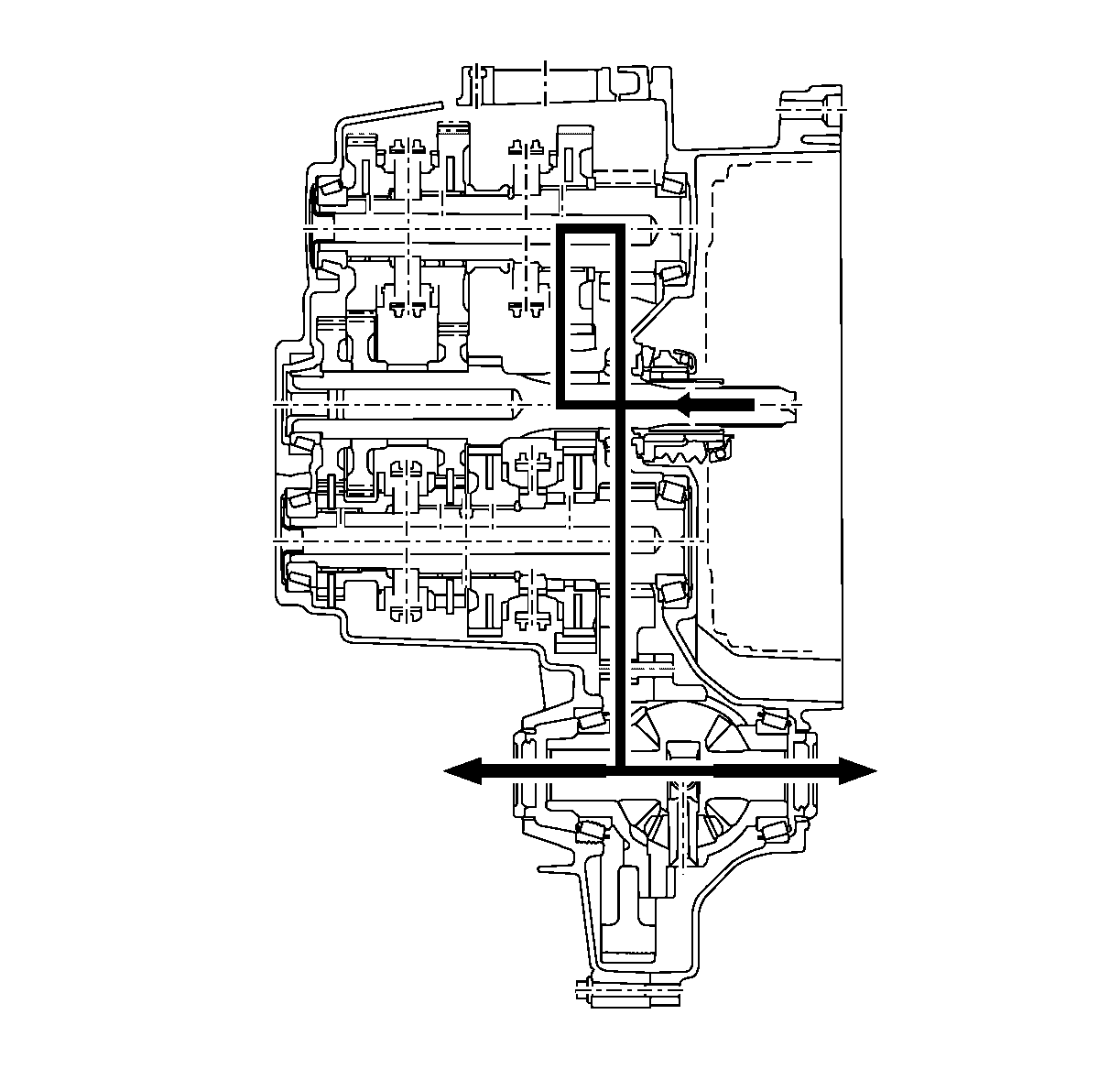

Fig 2: Transmission 2nd Gear Power Flow

Courtesy of GENERAL MOTORS COMPANY

2nd gear

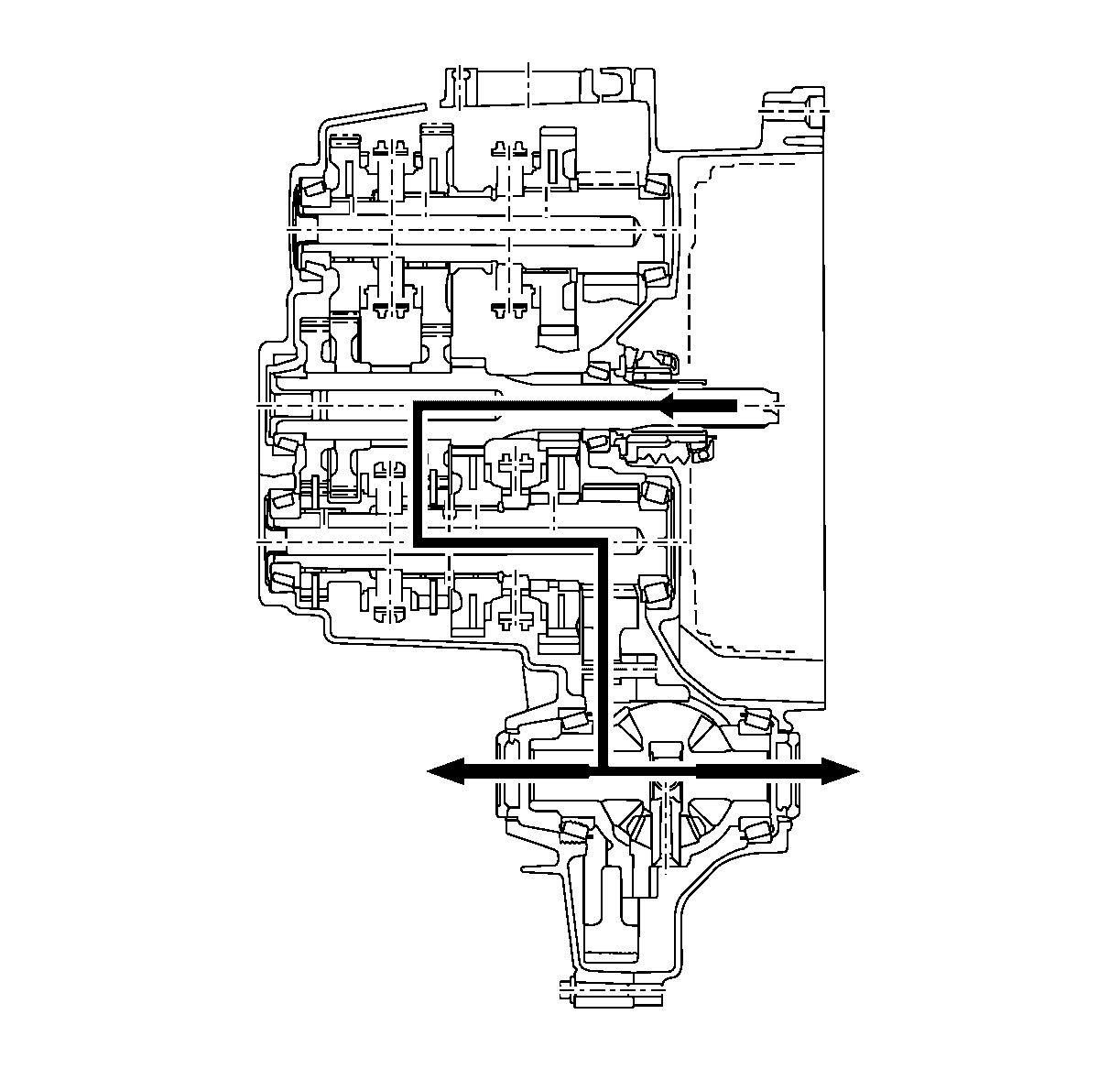

Fig 3: Transmission 3rd Gear Power Flow

Courtesy of GENERAL MOTORS COMPANY

3rd gear

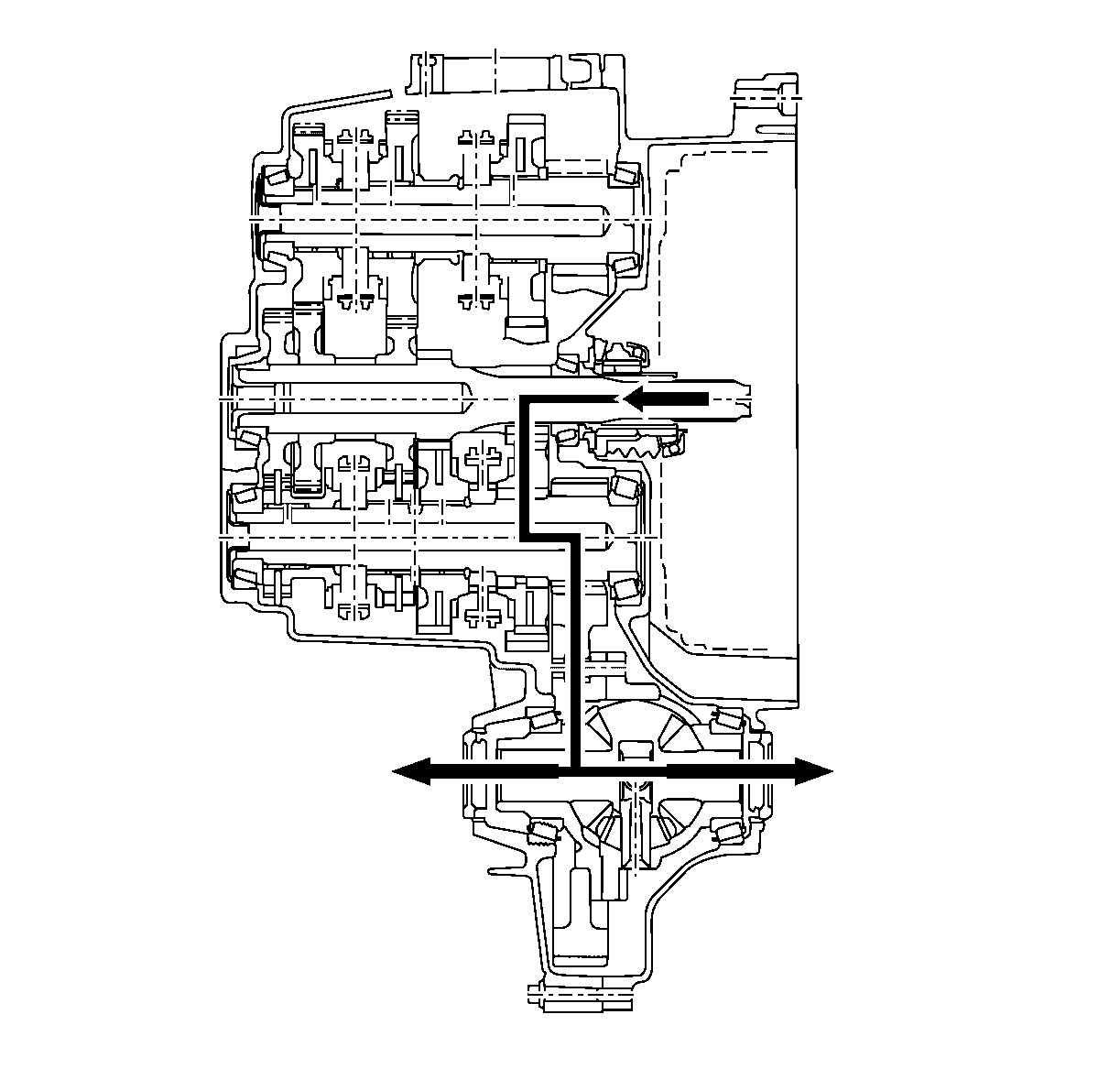

Fig 4: Transmission 4th Gear Power Flow

Courtesy of GENERAL MOTORS COMPANY

4th gear

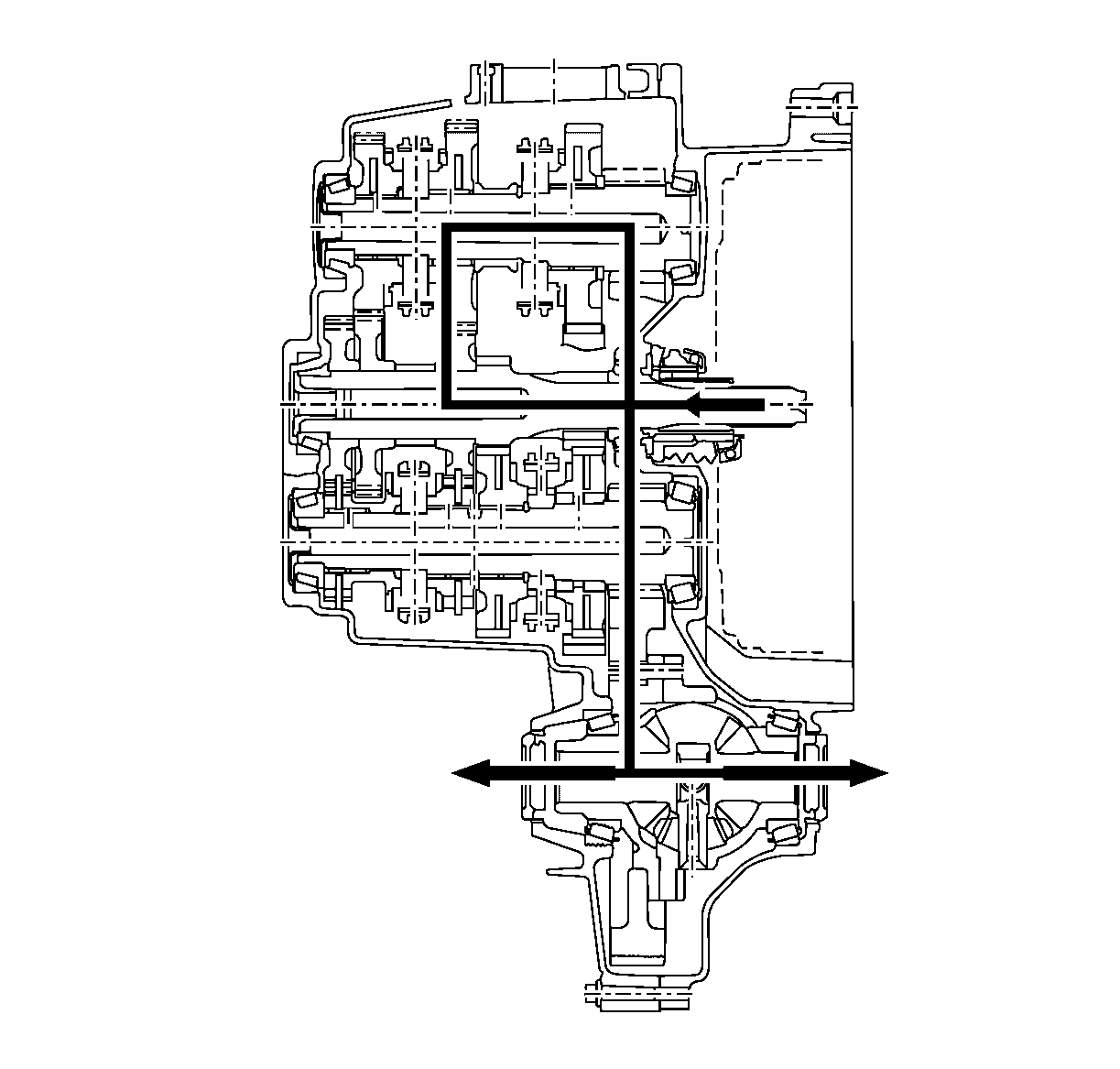

Fig 5: Transmission 5th Gear Power Flow

Courtesy of GENERAL MOTORS COMPANY

5th gear

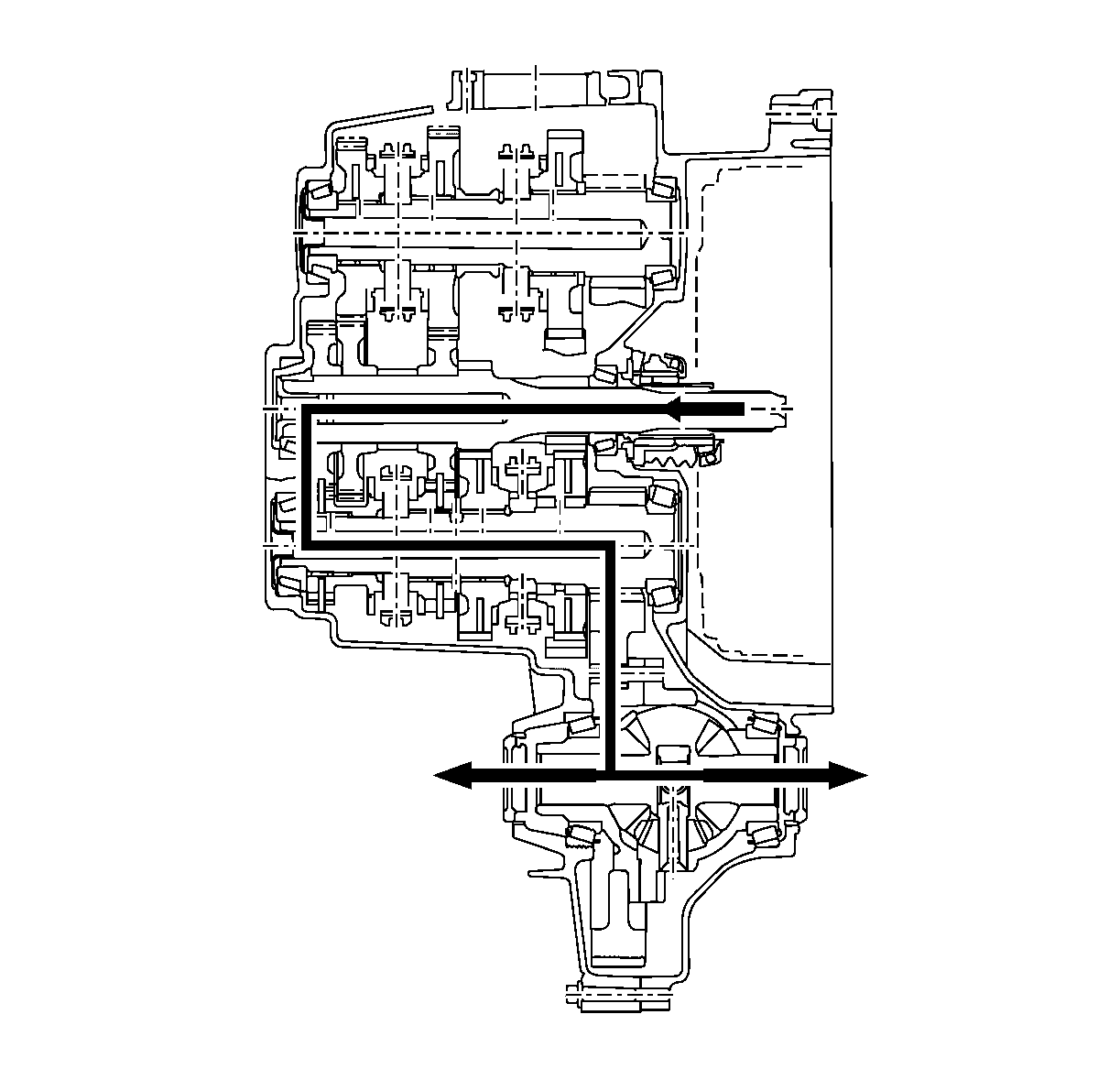

Fig 6: Transmission 6th Gear Power Flow

Courtesy of GENERAL MOTORS COMPANY

6th gear

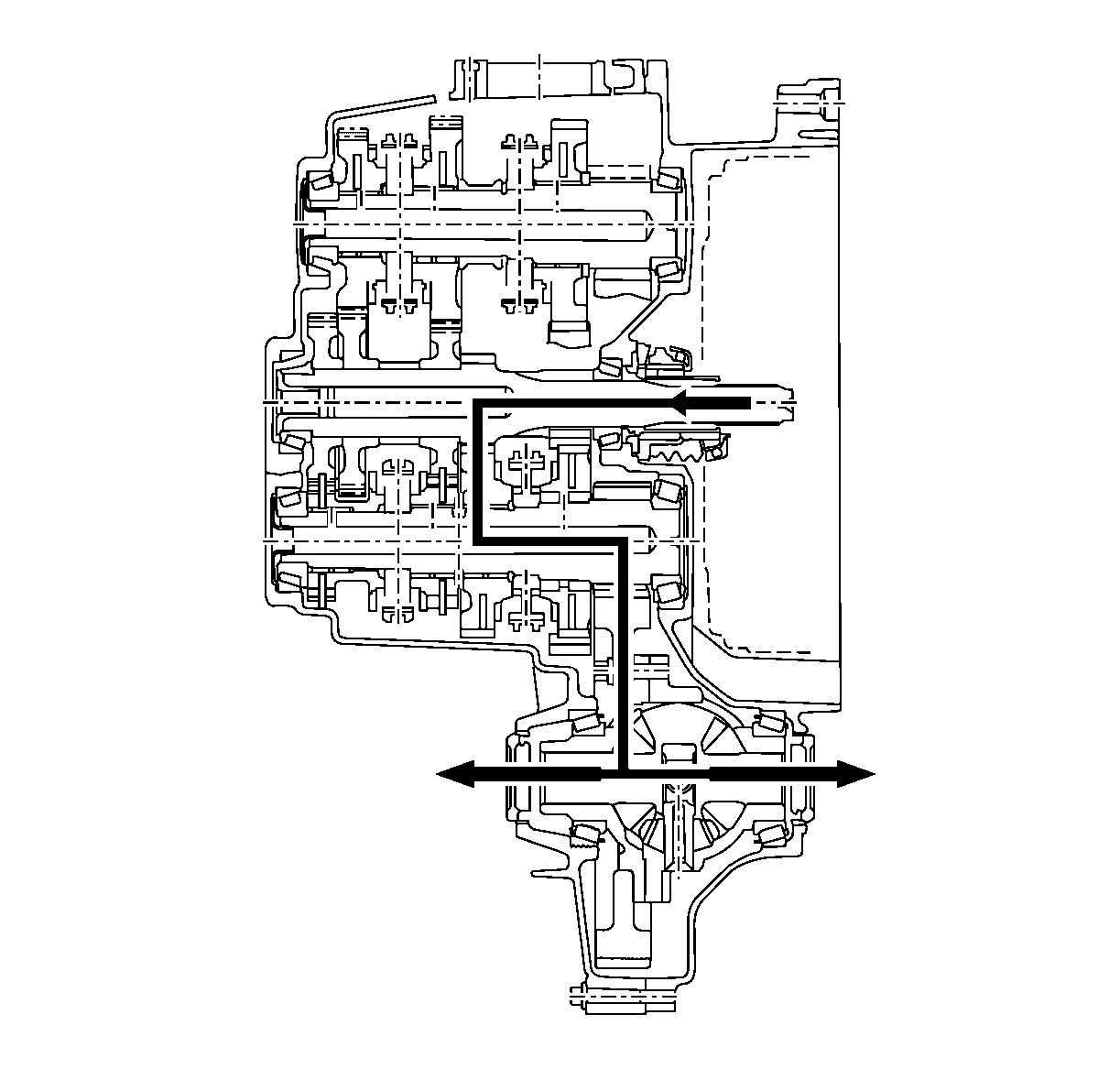

Fig 7: Transmission Reverse Gear Power Flow

Courtesy of GENERAL MOTORS COMPANY

Reverse gear
