Transmission Shafts Overview

WARNING: This page is about a different variant/trim than selected.

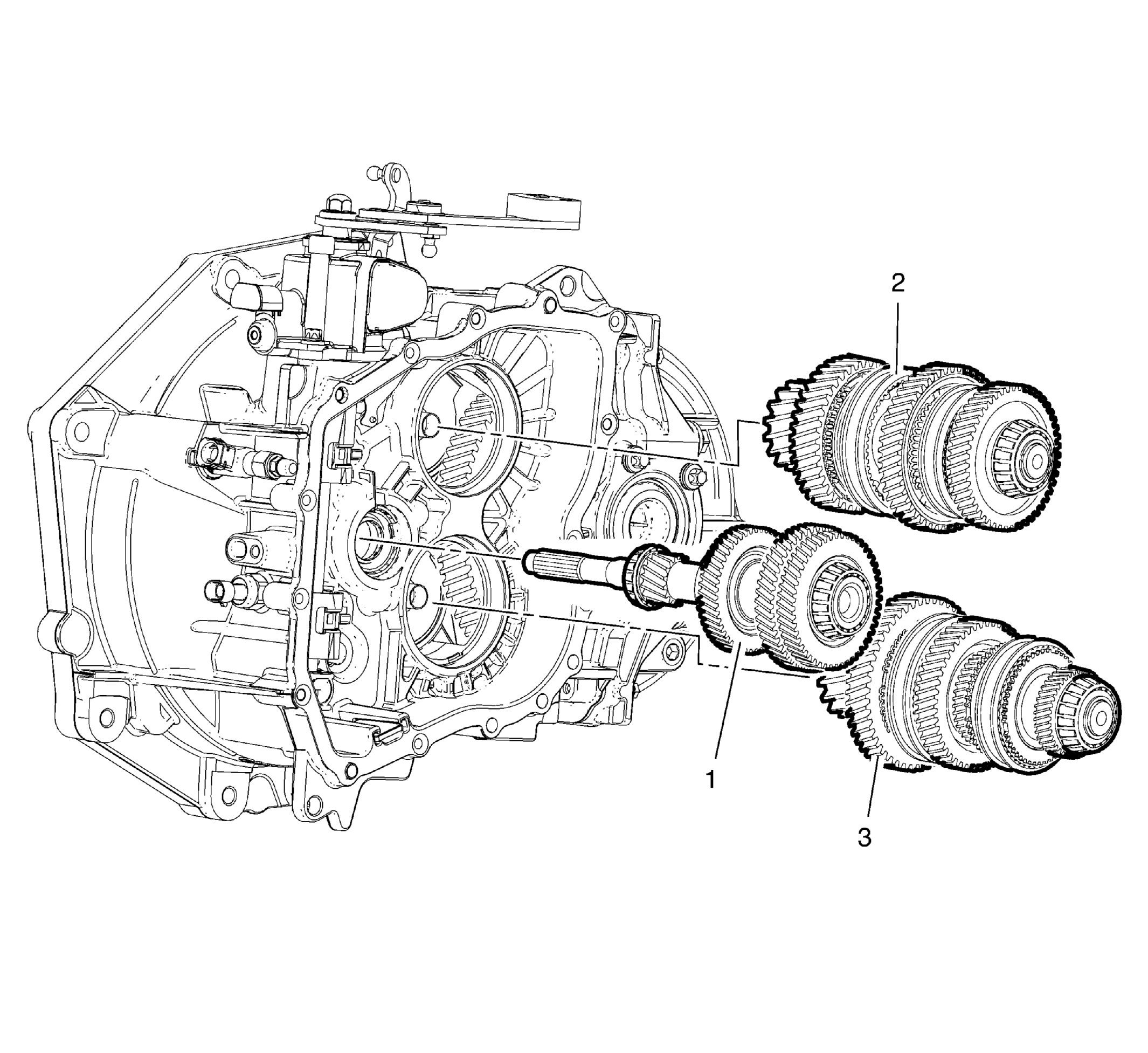

Fig 1: Transmission Shafts
GM2791267Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
1 Input Shaft
2 Upper Main Shaft
3 Lower Main Shaft
