Shift Shaft Components

WARNING: This page is about a different variant/trim than selected.

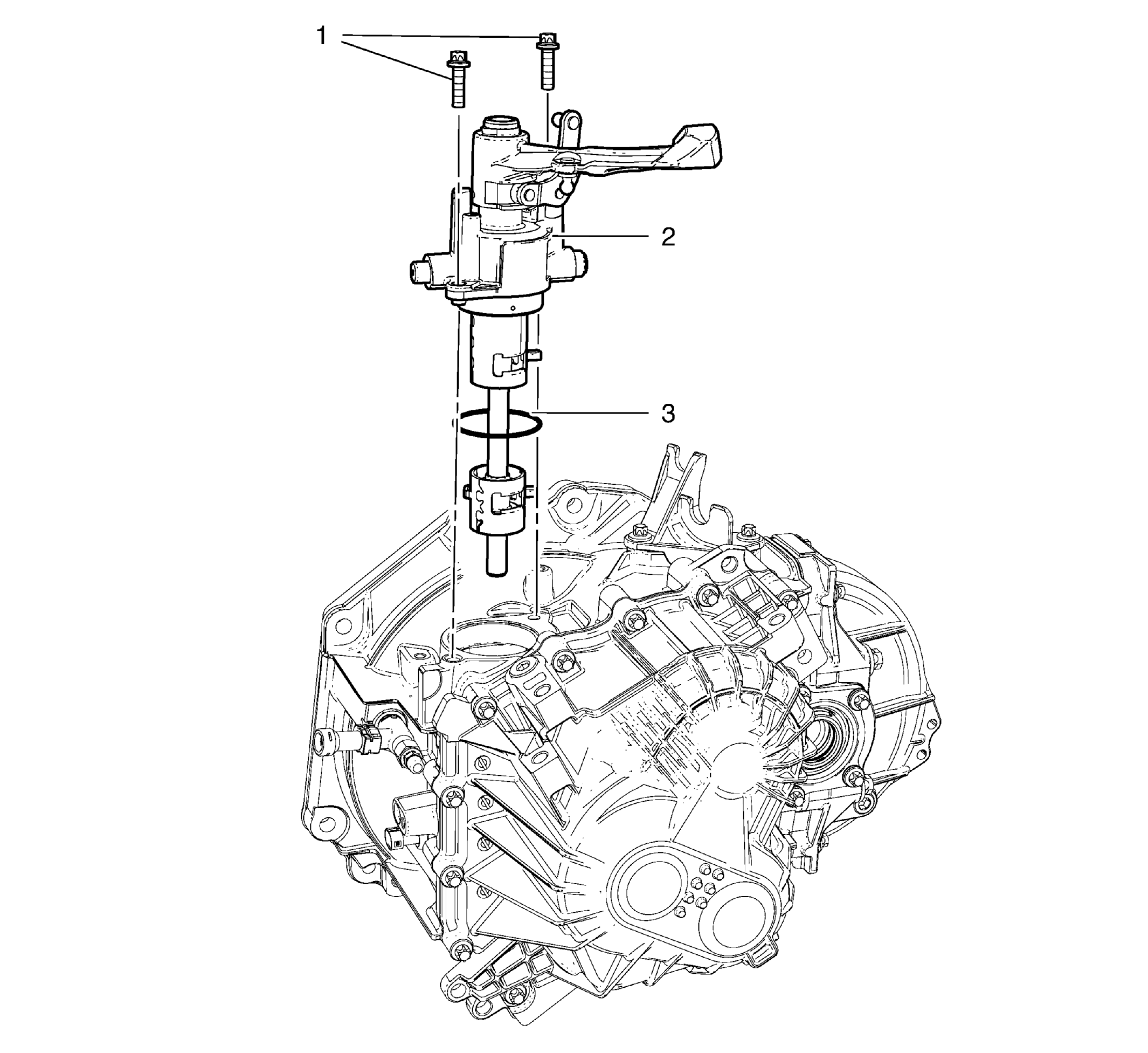

Fig 1: Shift Shaft Components
GM2190480Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
1 Shift Shaft Bolts (Qty: 2)
2 Shift Shaft
3 Shift Shaft O-Ring
