Input Shaft
Input Shaft
WARNING:
This page is about a different variant/trim than selected.

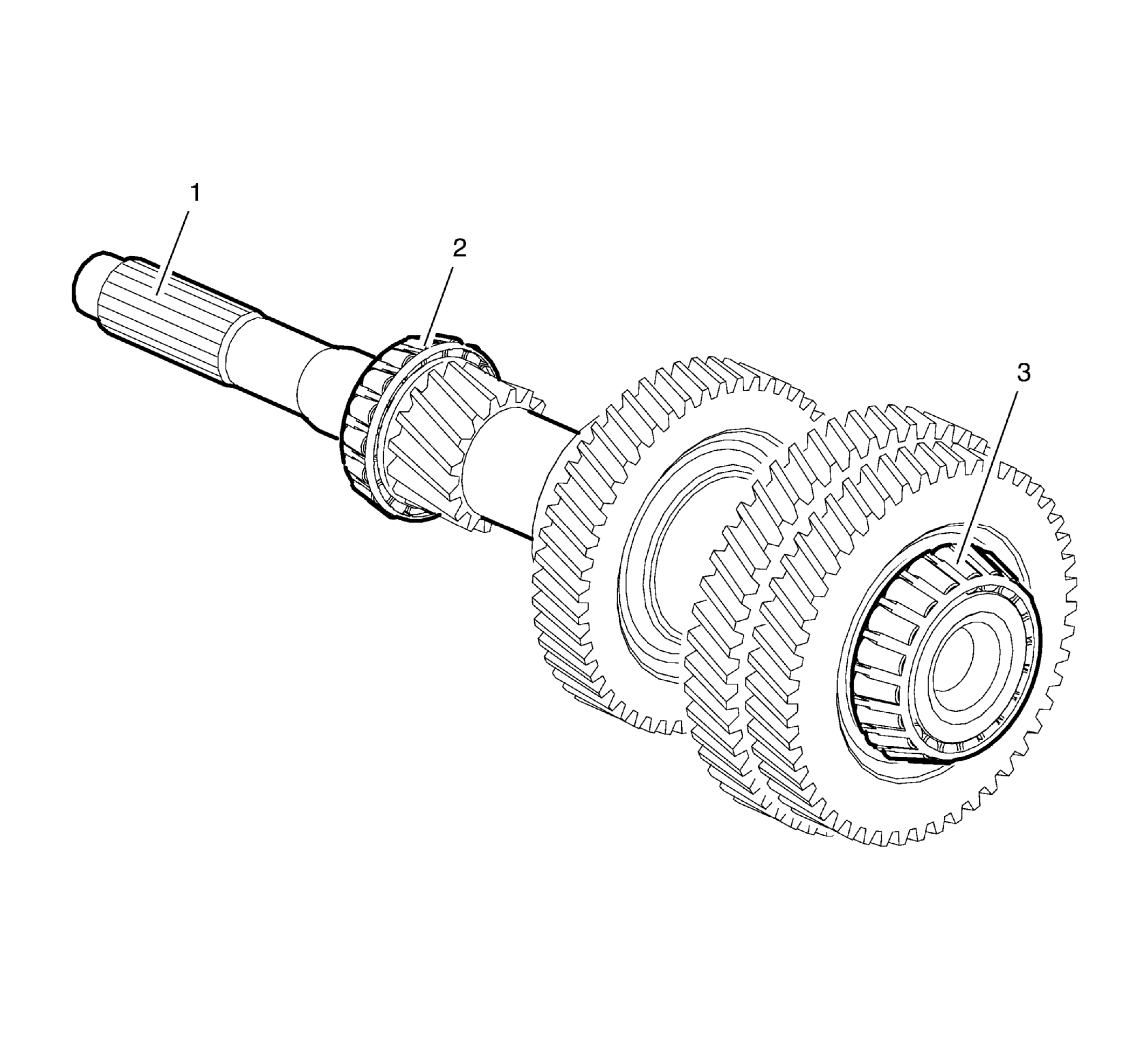

Fig 1: Input Shaft
Courtesy of GENERAL MOTORS COMPANY
Callout
Component Name
1
Input Shaft
2
Inner Bearing
3
Outer Bearing
Courtesy of GENERAL MOTORS COMPANY
