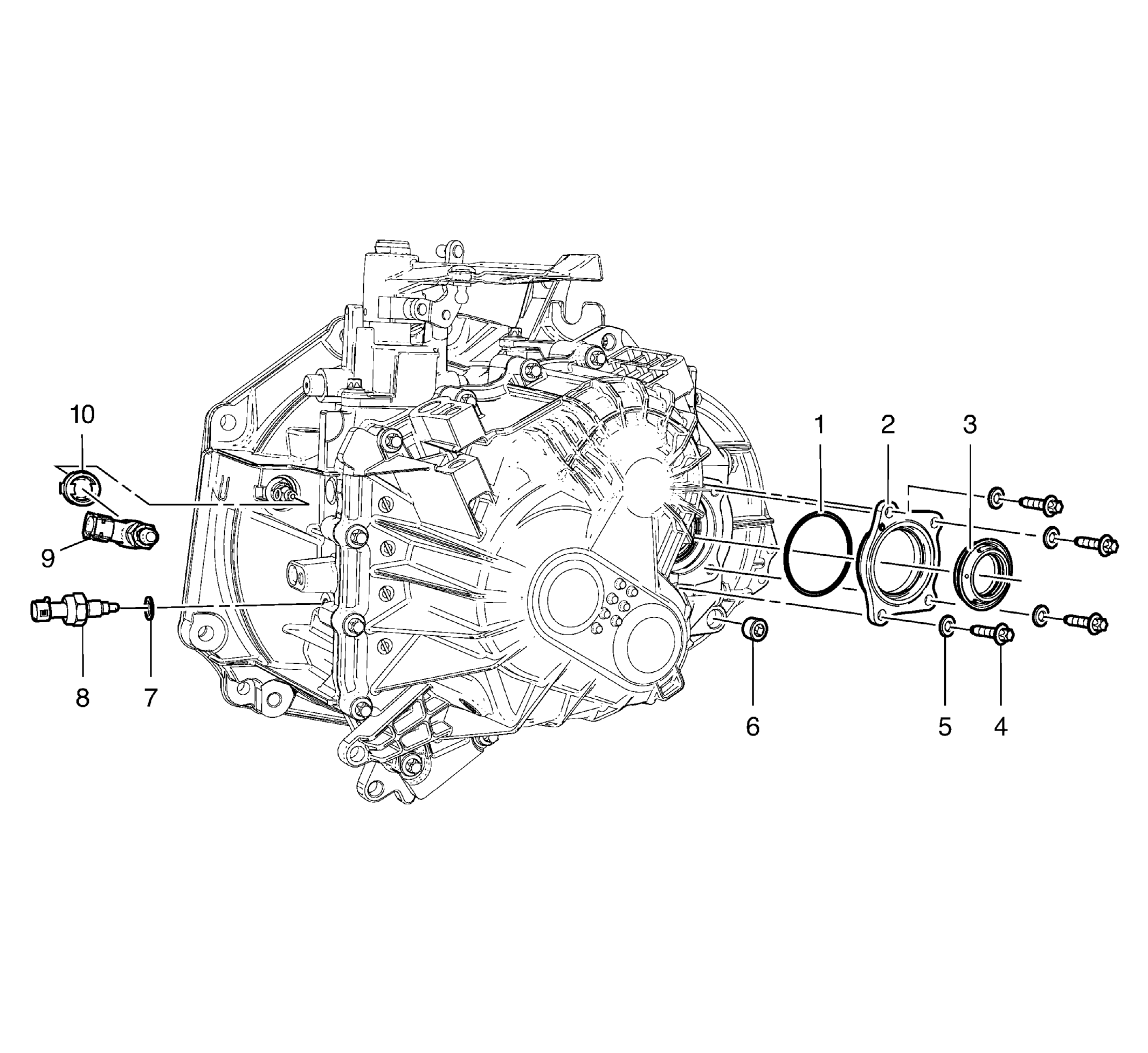

Clutch Housing Components- Left Hand View
WARNING: This page is about a different variant/trim than selected.
| Callout | Component Name |
|---|---|
| 1 | Front Differential Carrier Flange Seal |
| 2 | Front Differential Carrier Flange |
| 3 | Front Wheel Drive Shaft Oil Seal |
| 4 | Front Differential Carrier Flange Bolts (Qty: 4) |
| 5 | Front Differential Carrier Flange Bolt Washers (Qty: 4) |
| 6 | Transmission Oil Drain Plug |
| 7 | Backup Lamp Switch Washer |
| 8 | Backup Lamp Switch |
| 9 | Clutch Actuator Cylinder Pipe Elbow |
| 10 | Clutch Actuator Cylinder Pipe Sleeve |
