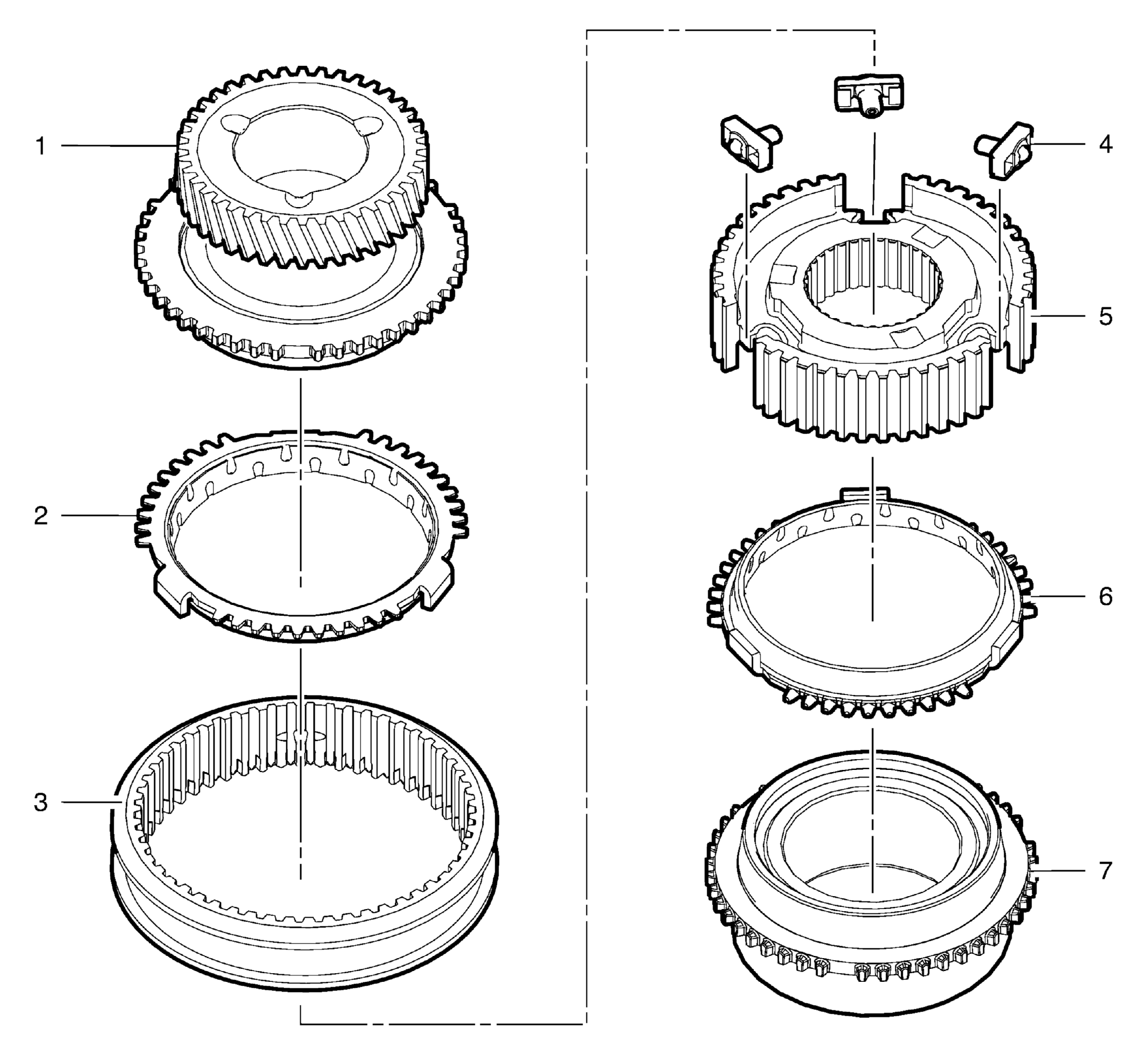

5th/6th Gear Synchronizer
WARNING: This page is about a different variant/trim than selected.
Courtesy of GENERAL MOTORS COMPANY
| Callout |
Component Name |
| 1 |
6th Gear Gearwheel |
| 2 |
6th Gear Synchronizer Ring |
| 3 |
5th/6th Gear Selector Sleeve |
| 4 |
Spring Catches |
| 5 |
5th/6th Gear Sleeve Carrier |
| 6 |
5th Gear Synchronizer Ring |
| 7 |
5th Gear Gearwheel |
