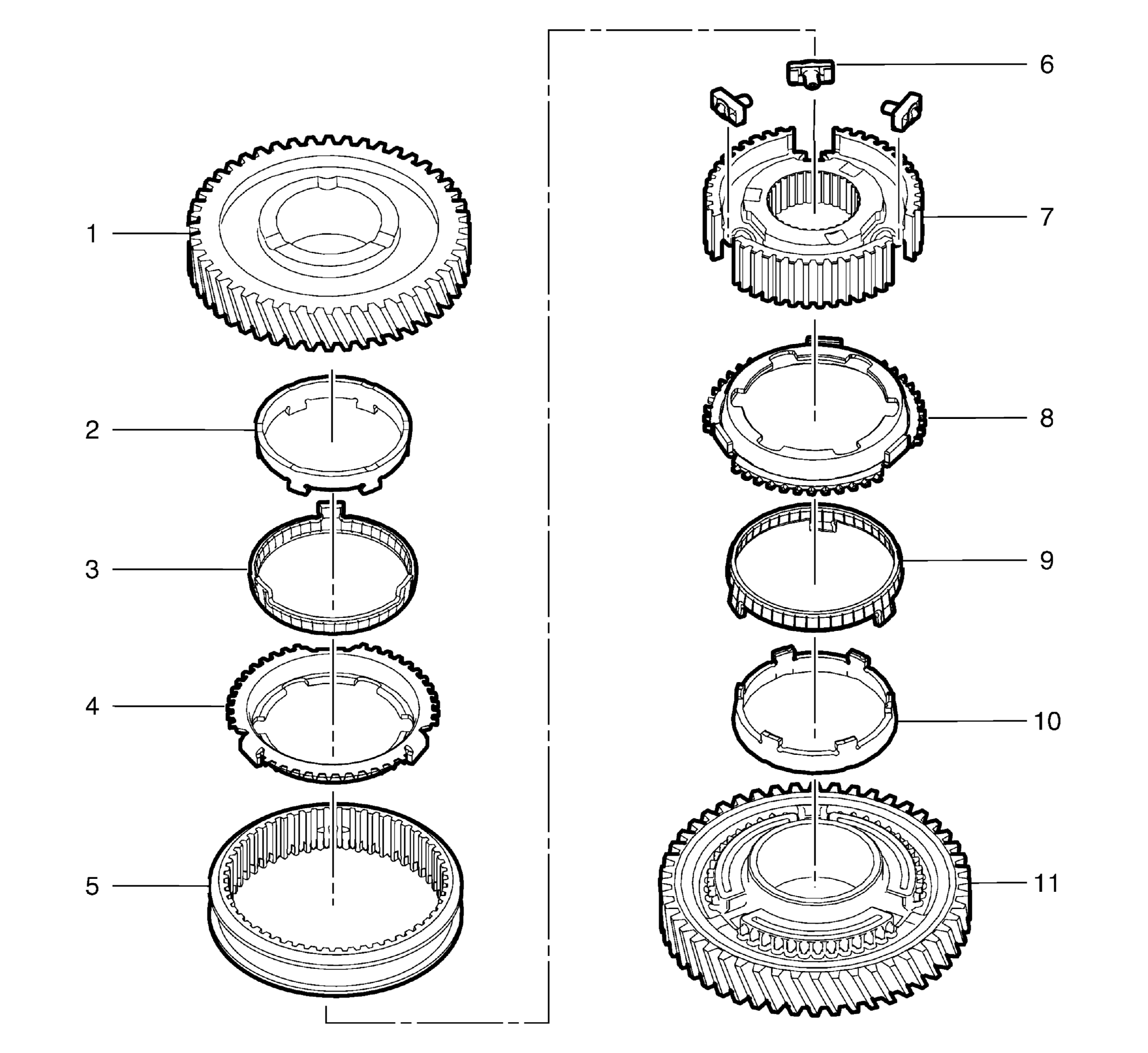

3rd/4th Gear Synchronizer
WARNING: This page is about a different variant/trim than selected.
| Callout | Component Name |
|---|---|
| 1 | 4th Gear Gearwheel |
| 2 | 4th Gear Inner Synchronizer Ring |
| 3 | 4th Gear Middle Synchronizer Ring |
| 4 | 4th Gear Outer Synchronizer Ring |
| 5 | 3rd/4th Gear Selector Sleeve |
| 6 | Spring Catches |
| 7 | 3rd/4th Gear Sleeve Carrier |
| 8 | 3rd Gear Outer Synchronizer Ring |
| 9 | 3rd Gear Middle Synchronizer Ring |
| 10 | 3rd Gear Inner Synchronizer Ring |
| 11 | 3rd Gear Gearwheel |
