Intake Tuning Valve, Secondary Air Injection (NU6)

WARNING: This page is about a different variant/trim than selected.

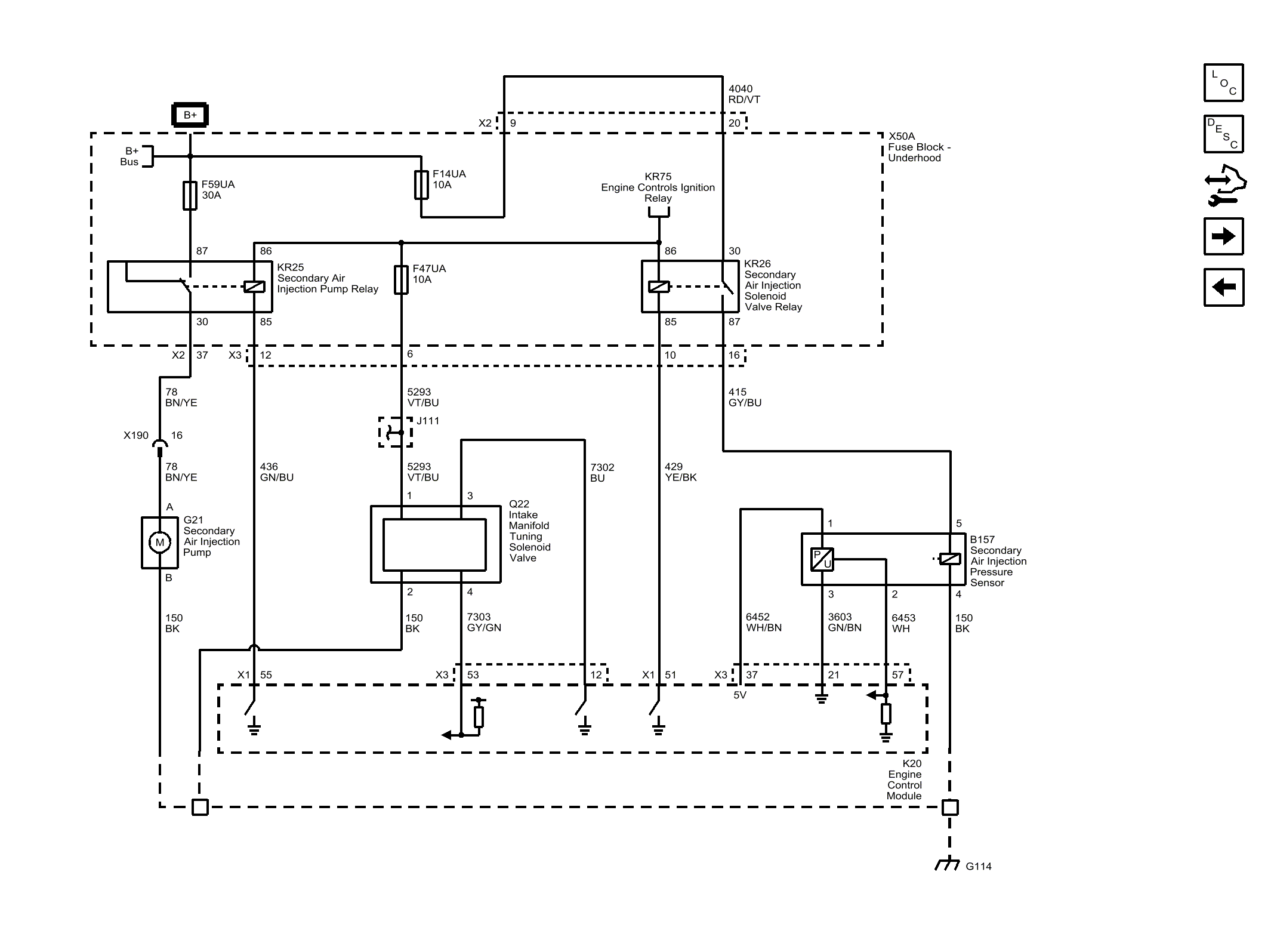

Fig 1: Intake Tuning Valve, Secondary Air Injection (NU6)
GM3814106Courtesy of GENERAL MOTORS COMPANY
