Fuel Controls - Fuel Injectors and Evaporative Controls

WARNING: This page is about a different variant/trim than selected.

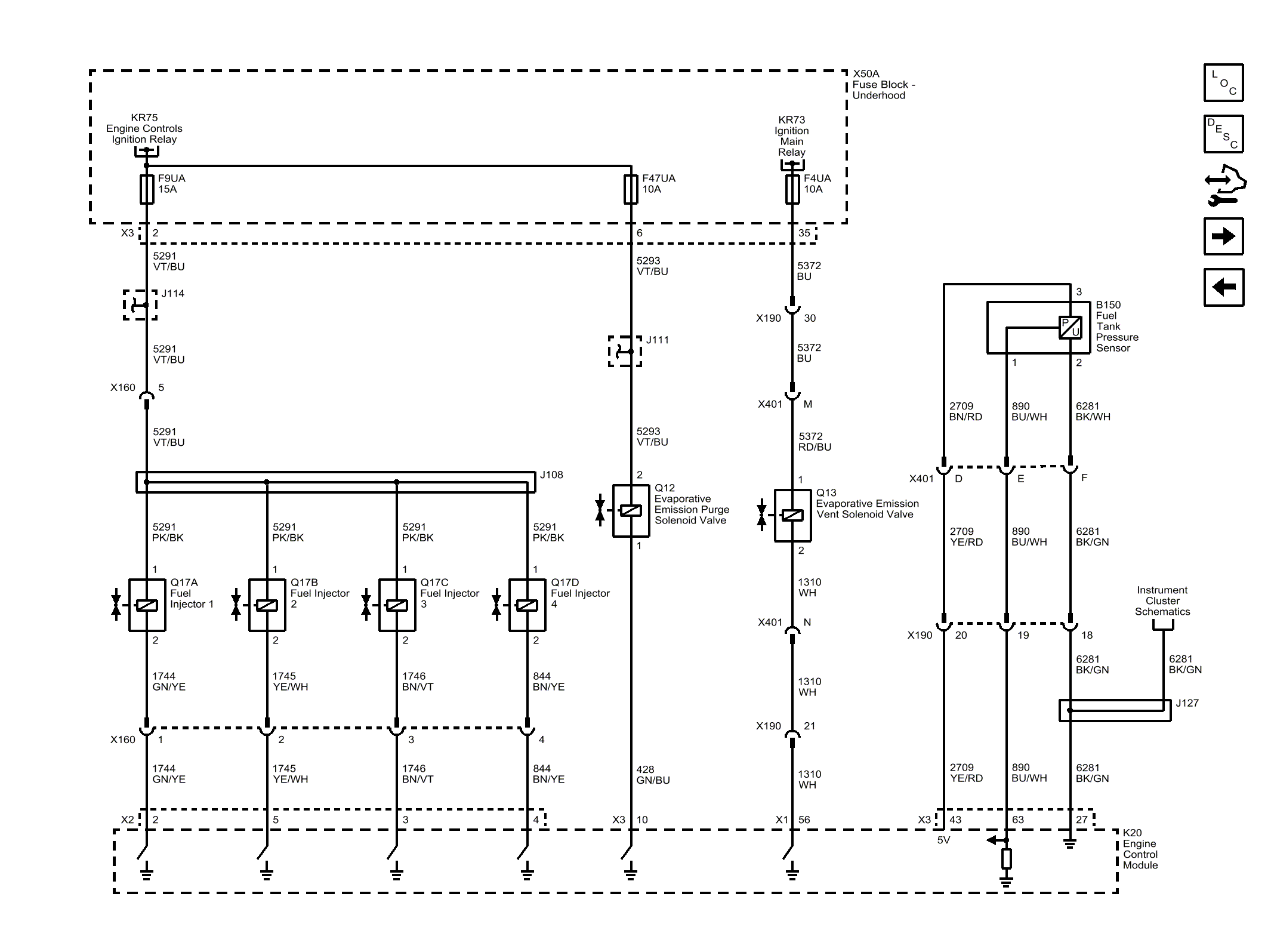

Fig 1: Fuel Controls - Fuel Injectors and Evaporative Controls
GM3814104Courtesy of GENERAL MOTORS COMPANY
