Engine Data Sensors - Throttle Controls

WARNING: This page is about a different variant/trim than selected.

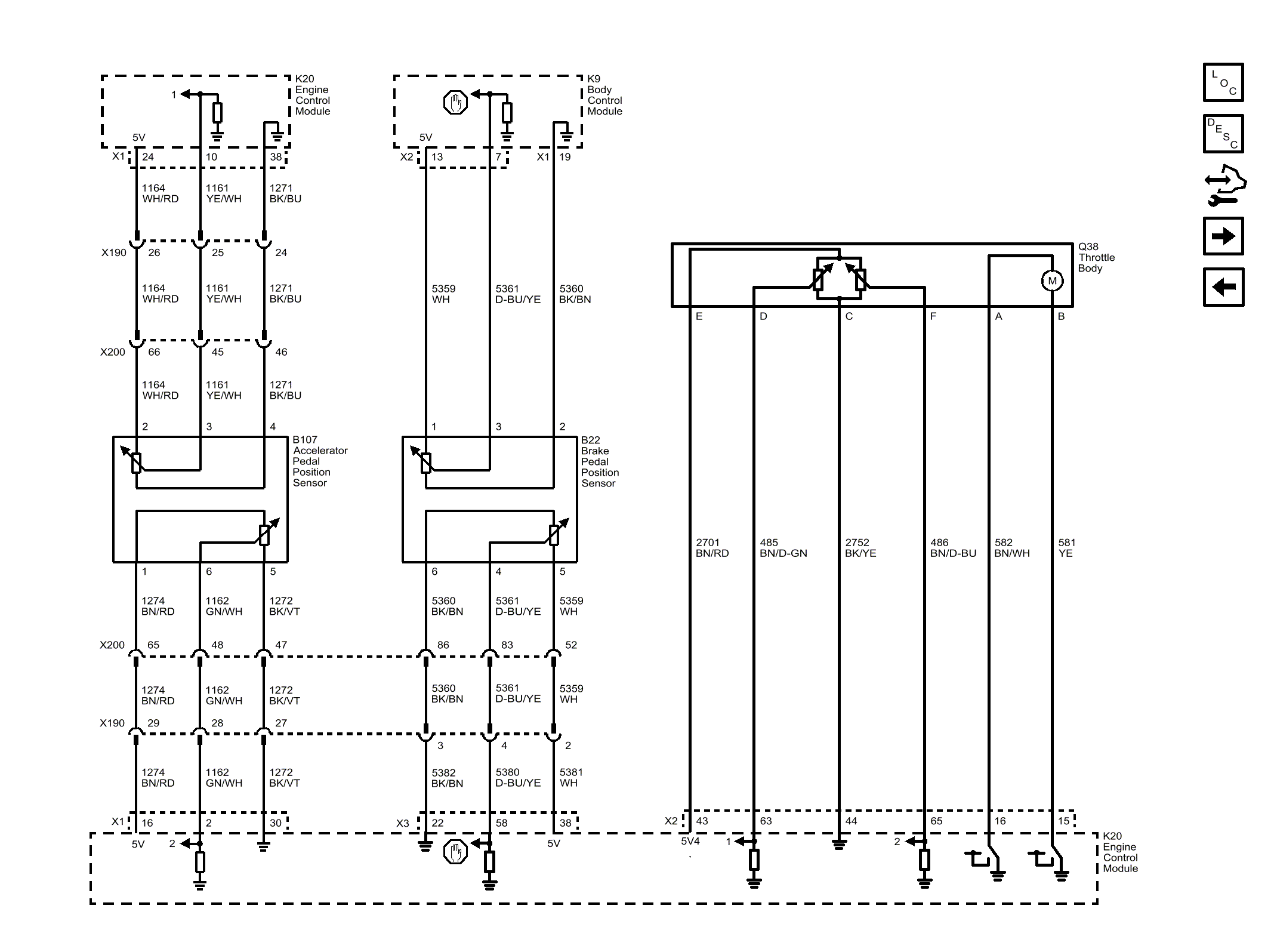

Fig 1: Engine Data Sensors - Throttle Controls
GM3814100Courtesy of GENERAL MOTORS COMPANY
