Engine Data Sensors - Pressure and Temperature

WARNING: This page is about a different variant/trim than selected.

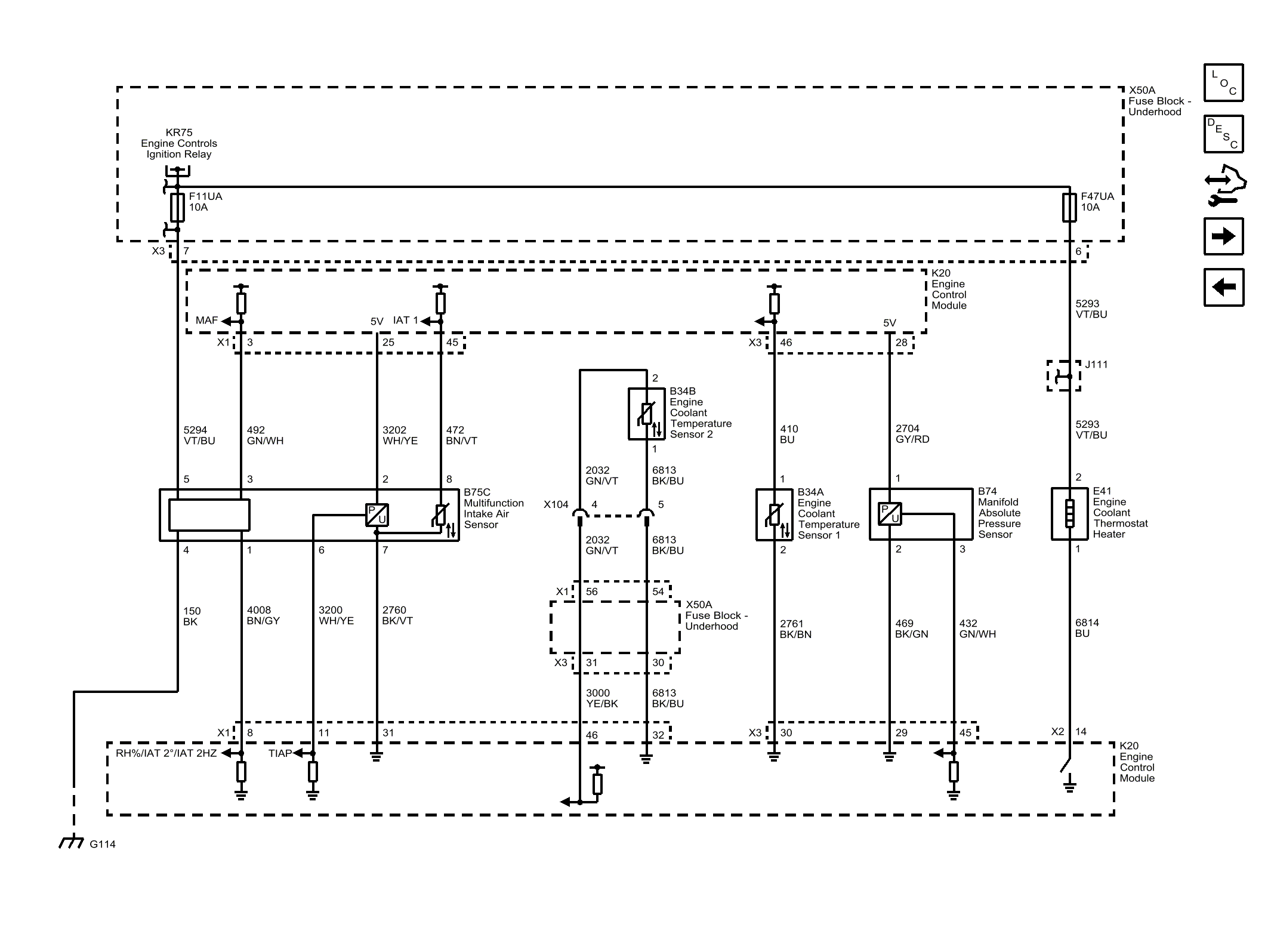

Fig 1: Engine Data Sensors - Pressure and Temperature
GM3814098Courtesy of GENERAL MOTORS COMPANY
