Section 4 (Engine Controls And Fuel - 1.8L (LUW, LWE) - Schematic Wiring Diagrams)
>>
Schematic Wiring Diagrams
>>
Engine Controls Wiring Schematics
>>
Controlled/Monitored Subsystem References
Controlled/Monitored Subsystem References
WARNING:
This page is about a different variant/trim than selected.

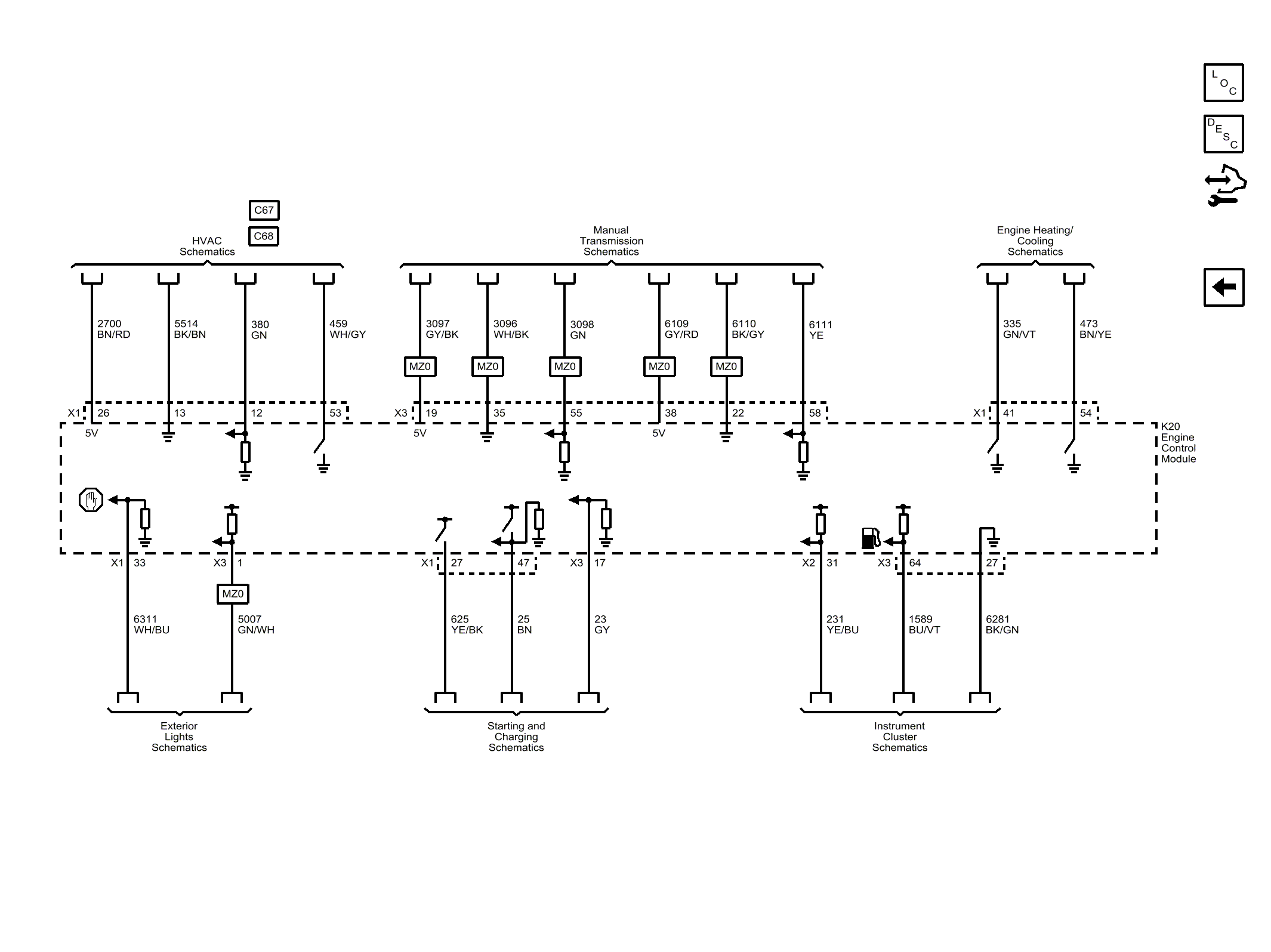

Fig 1: Controlled/Monitored Subsystem References
Courtesy of GENERAL MOTORS COMPANY
