Camshaft, Crankshaft, and Knock Sensors, Camshaft Actuators

WARNING: This page is about a different variant/trim than selected.

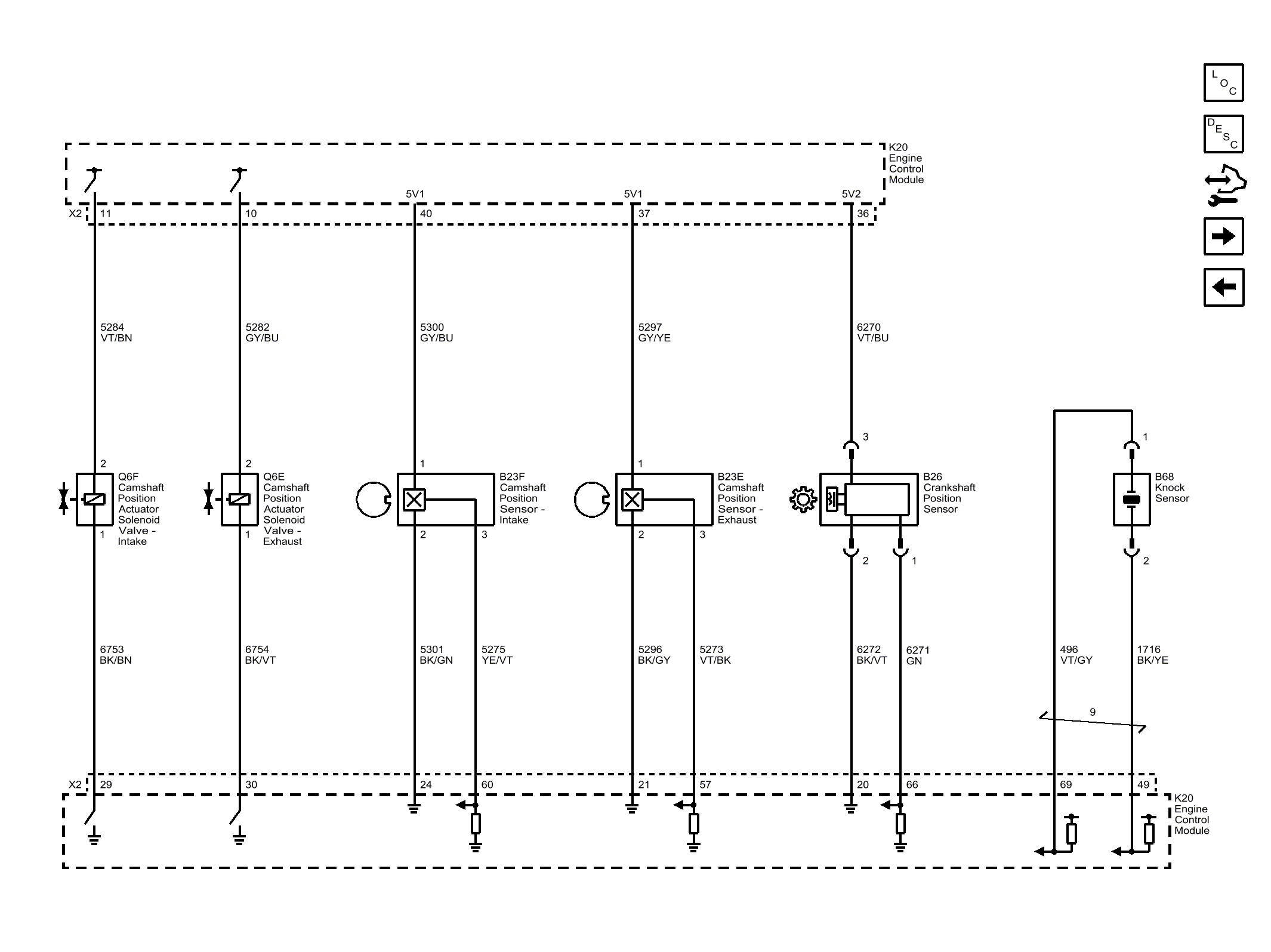

Fig 1: Camshaft, Crankshaft and Knock Sensors, Camshaft Actuators
GM3814103Courtesy of GENERAL MOTORS COMPANY
