Turbocharger Wastegate Actuator Vacuum Control Solenoid Valve Replacement
WARNING: This page is about a different variant/trim than selected.

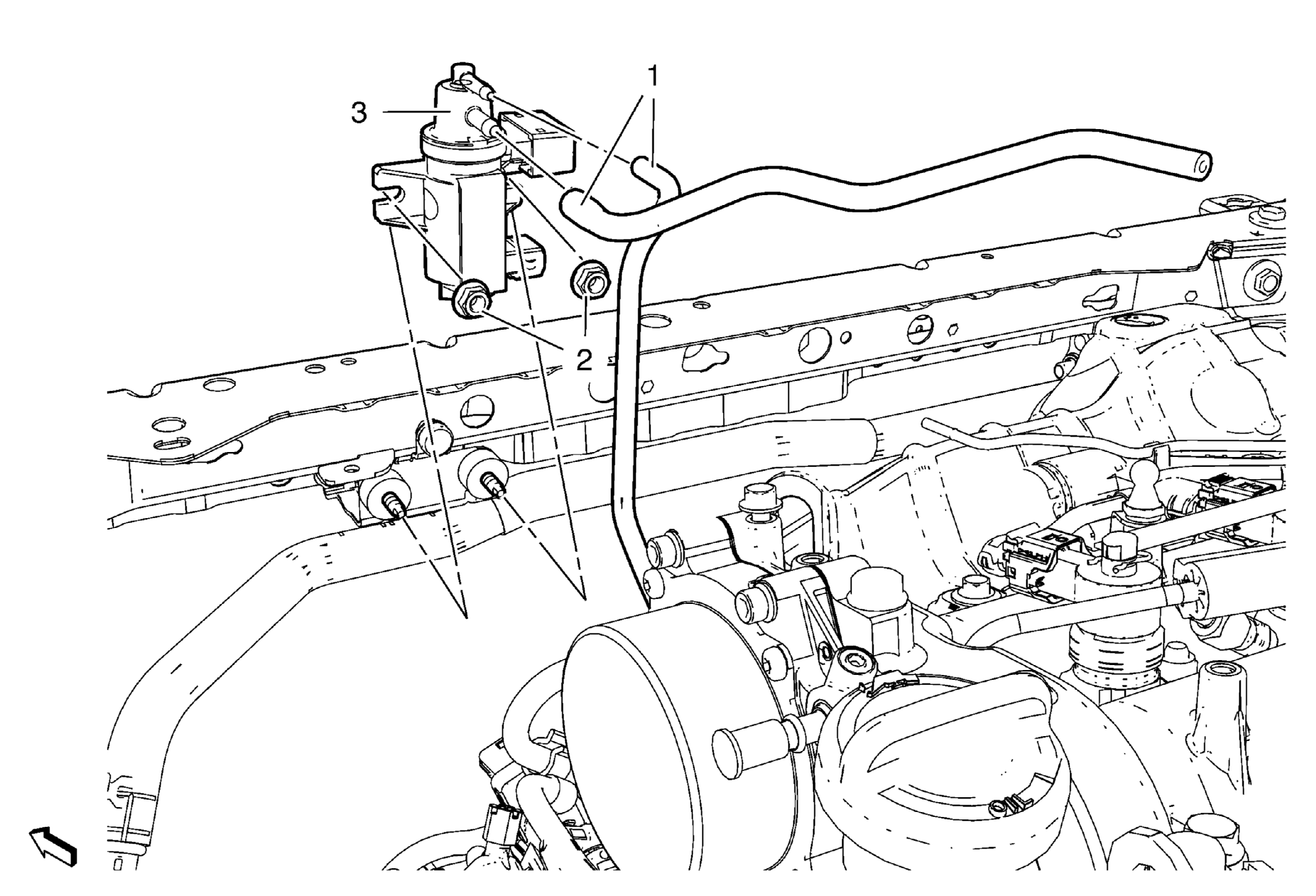

| Callout | Component Name |
|---|---|
| Preliminary Procedure Open the hood. |
|
| 1 | Turbocharger Wastegate Actuator Vacuum Control Solenoid Valve Hose (Qty: 2) Procedure Loosen the turbocharger wastegate actuator vacuum control solenoid valve hose and hang aside. |
| 2 | Turbocharger Wastegate Actuator Vacuum Control Solenoid Valve Nut (Qty: 2)
CAUTION:
Refer to Fastener Caution
.
|
| 3 | Turbocharger Wastegate Actuator Vacuum Control Solenoid Valve Procedure Disconnect the turbocharger wastegate actuator vacuum control solenoid valve wiring harness plug and remove the valve. |
