Removal Procedure

WARNING: This page is about a different variant/trim than selected.
  1. Disconnect the battery negative cable. Refer to Battery Negative Cable Disconnection and Connection .
  2. Disconnect the nitrogen oxide sensor module wiring harness plug (4) from the nitrogen oxide sensor module (2).

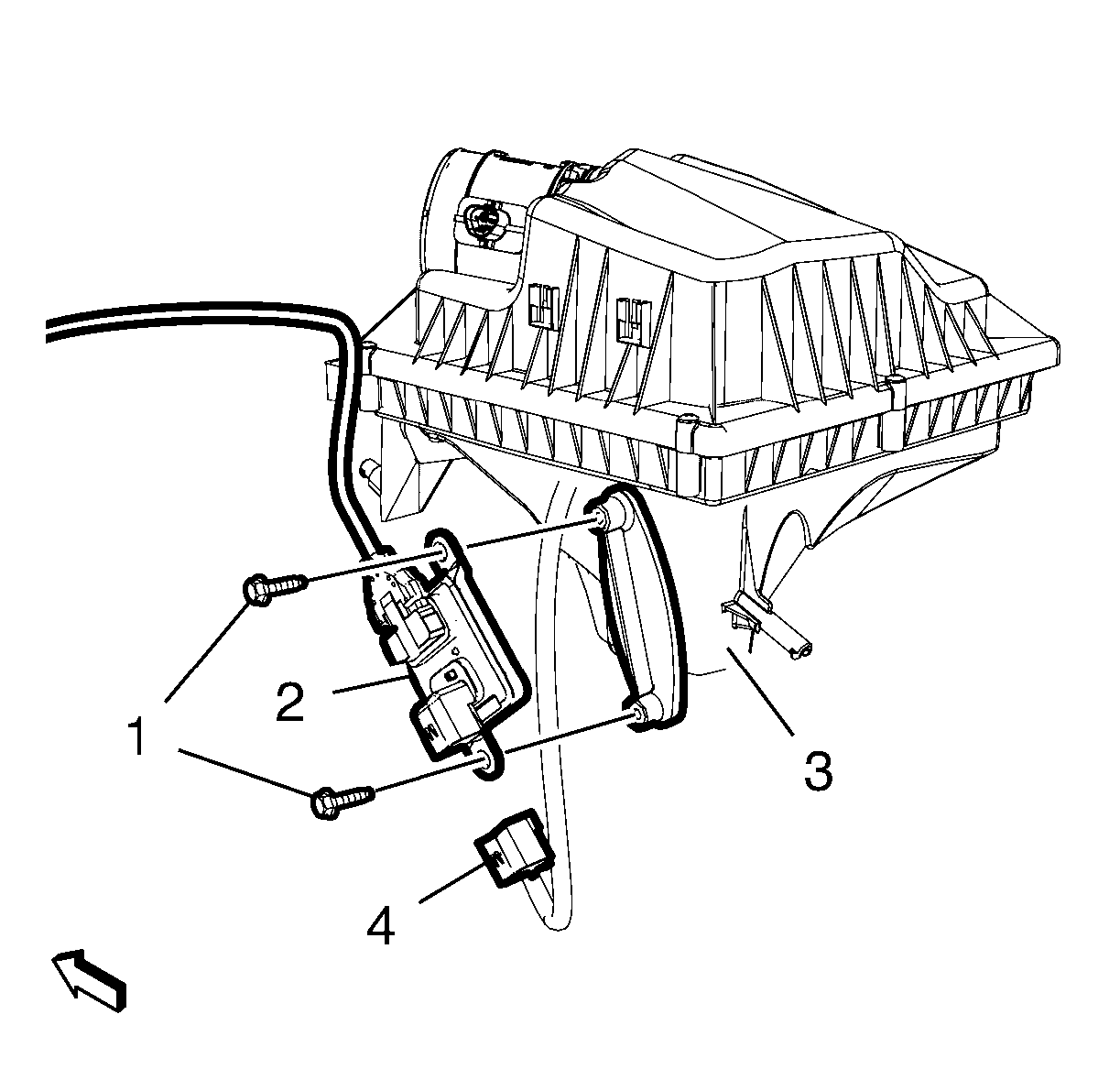

    Fig 1: Nitrogen Oxide Sensor Module And Bolts
    GM3216285Courtesy of GENERAL MOTORS COMPANY
  3. Remove the 2 nitrogen oxide sensor module bolts (1).
  4. Remove the nitrogen oxide sensor module (2) from the air cleaner lower housing (3).
  5. Loose the nitrogen oxide sensor (1), use a suitable tool, e.g. a crow foot.

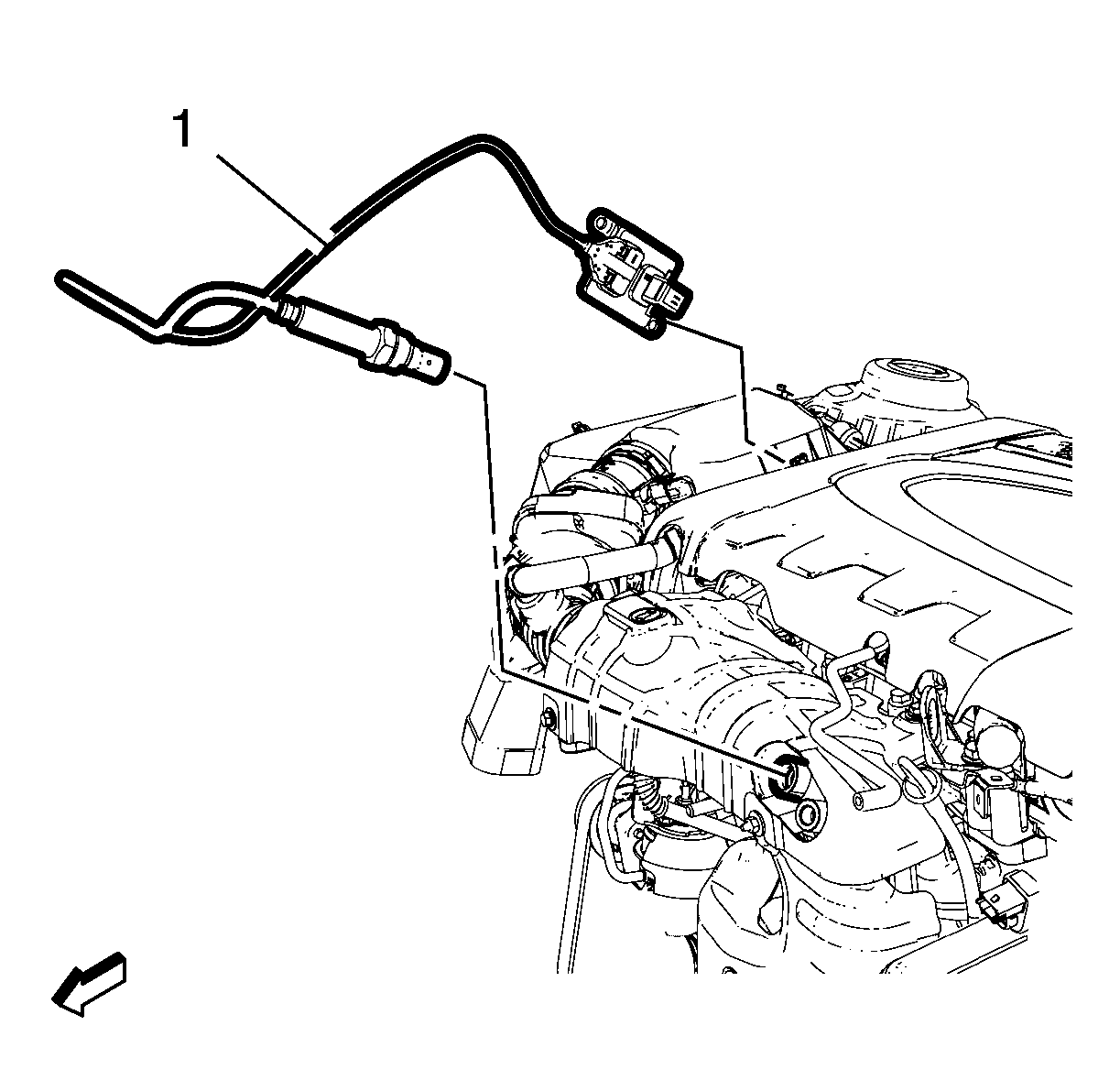

    Fig 2: Nitrogen Oxide Sensor
    GM3216284Courtesy of GENERAL MOTORS COMPANY
  6. Remove the nitrogen oxide sensor (1).
