Removal Procedure

WARNING: This page is about a different variant/trim than selected.
  1. Before performing the first steps, review the Emission Reduction Fluid and Emission Reduction Fluid Handling .
  2. Remove the emission reduction fluid tank insulator - upper. Refer to Emission Reduction Fluid Tank Insulator Replacement - Upper .
  3. Disconnect the wiring harness connectors (2) from the level and temperature emission reduction fluid tank module (1).

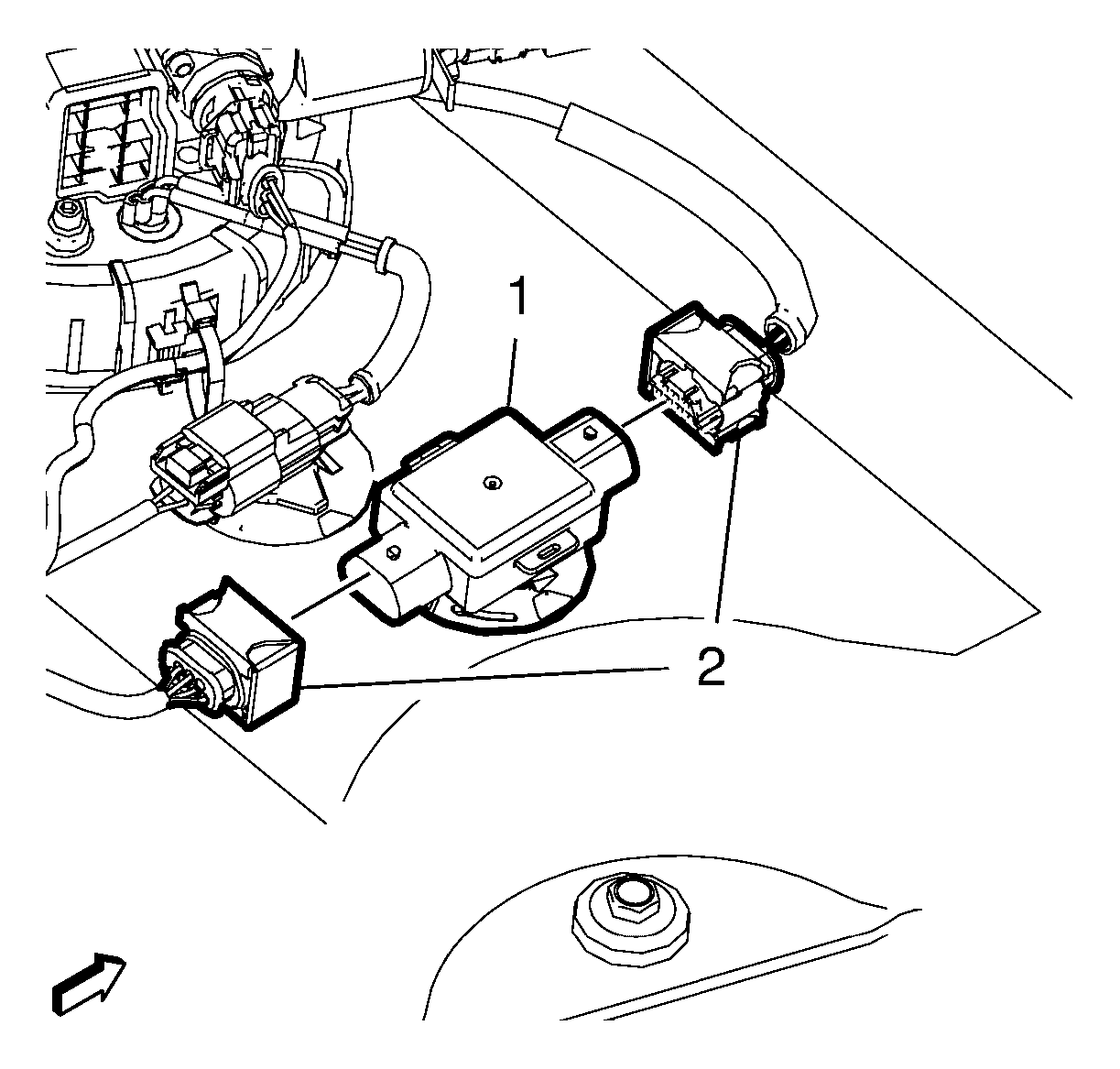

    Fig 1: Disconnecting Wiring Harness Connectors From Level And Temperature Emission Reduction Fluid Tank Module
    GM3471686Courtesy of GENERAL MOTORS COMPANY
  4. Carefully remove the level and temperature emission reduction fluid tank module (1) from the emission reduction fluid tank by releasing the retaining tab (2) and sliding module away from retainer (3).

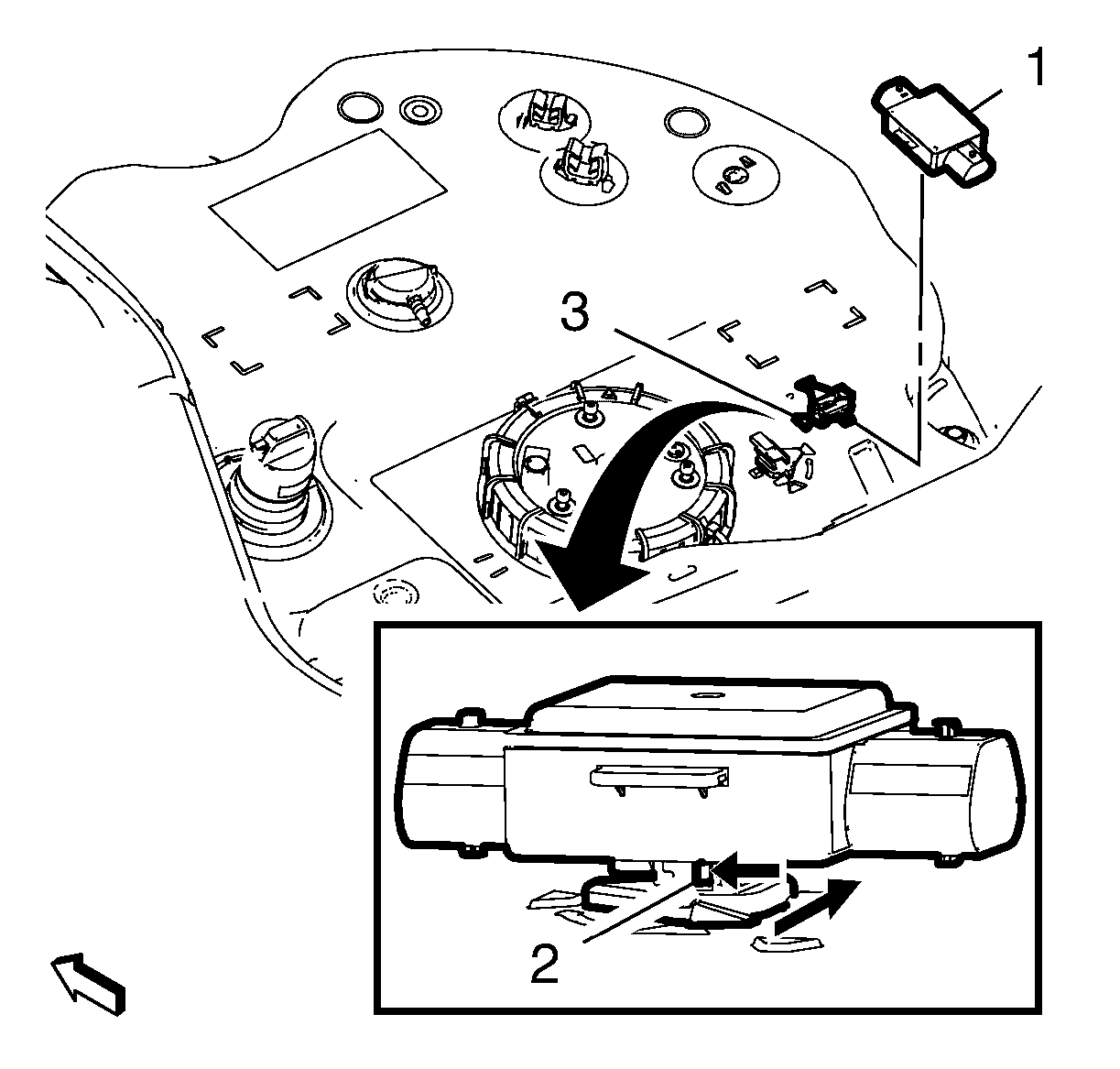

    Fig 2: Temperature Emission Reduction Fluid Tank Module And Retainer
    GM3471681Courtesy of GENERAL MOTORS COMPANY
