Removal Procedure

WARNING: This page is about a different variant/trim than selected.
  1. Remove the front bumper fascia. Refer to Front Bumper Fascia Replacement .
  2. Remove the 2 right front bumper support bolts (2).

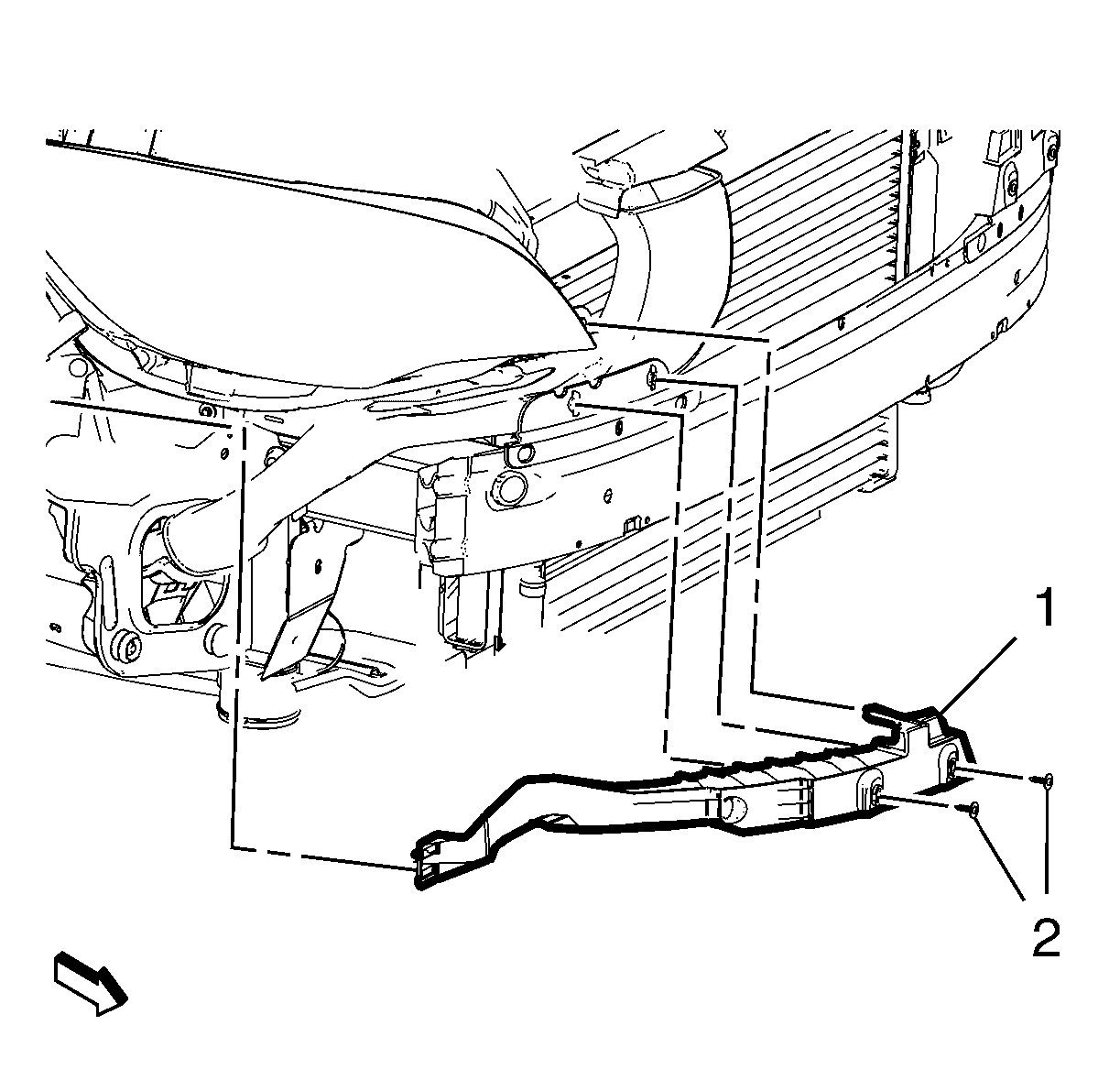

    Fig 1: Right Front Bumper Support Bolts
    GM2543478Courtesy of GENERAL MOTORS COMPANY
  3. Remove the right front bumper fascia support (1).
  4. Remove the 2 front intake air duct splash shield bolts (2).

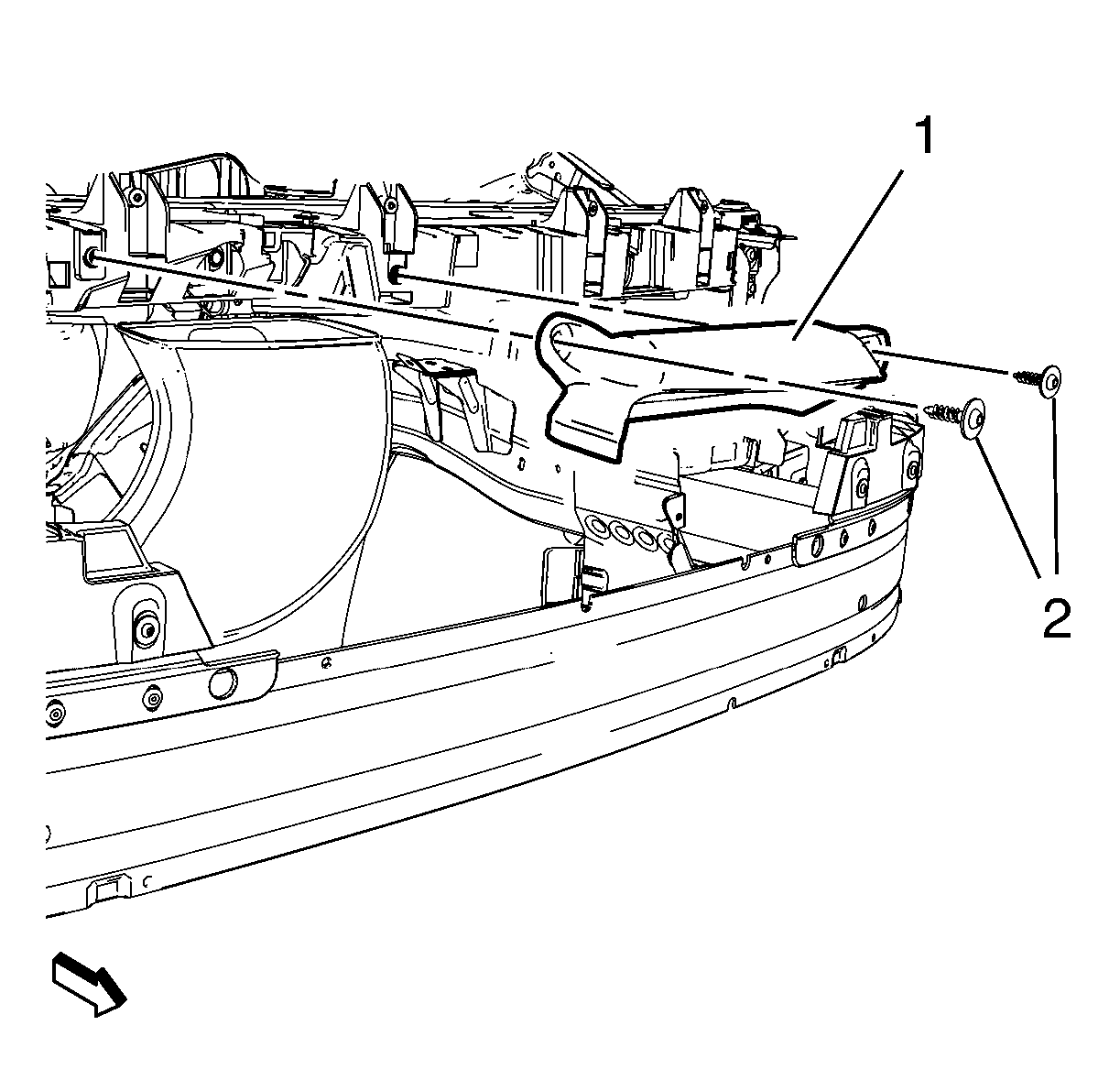

    Fig 2: Front Intake Air Duct Splash Shield Bolts
    GM2190228Courtesy of GENERAL MOTORS COMPANY
  5. Remove the front intake air duct splash shield (1).
  6. Remove the front intake air duct bolt (1).

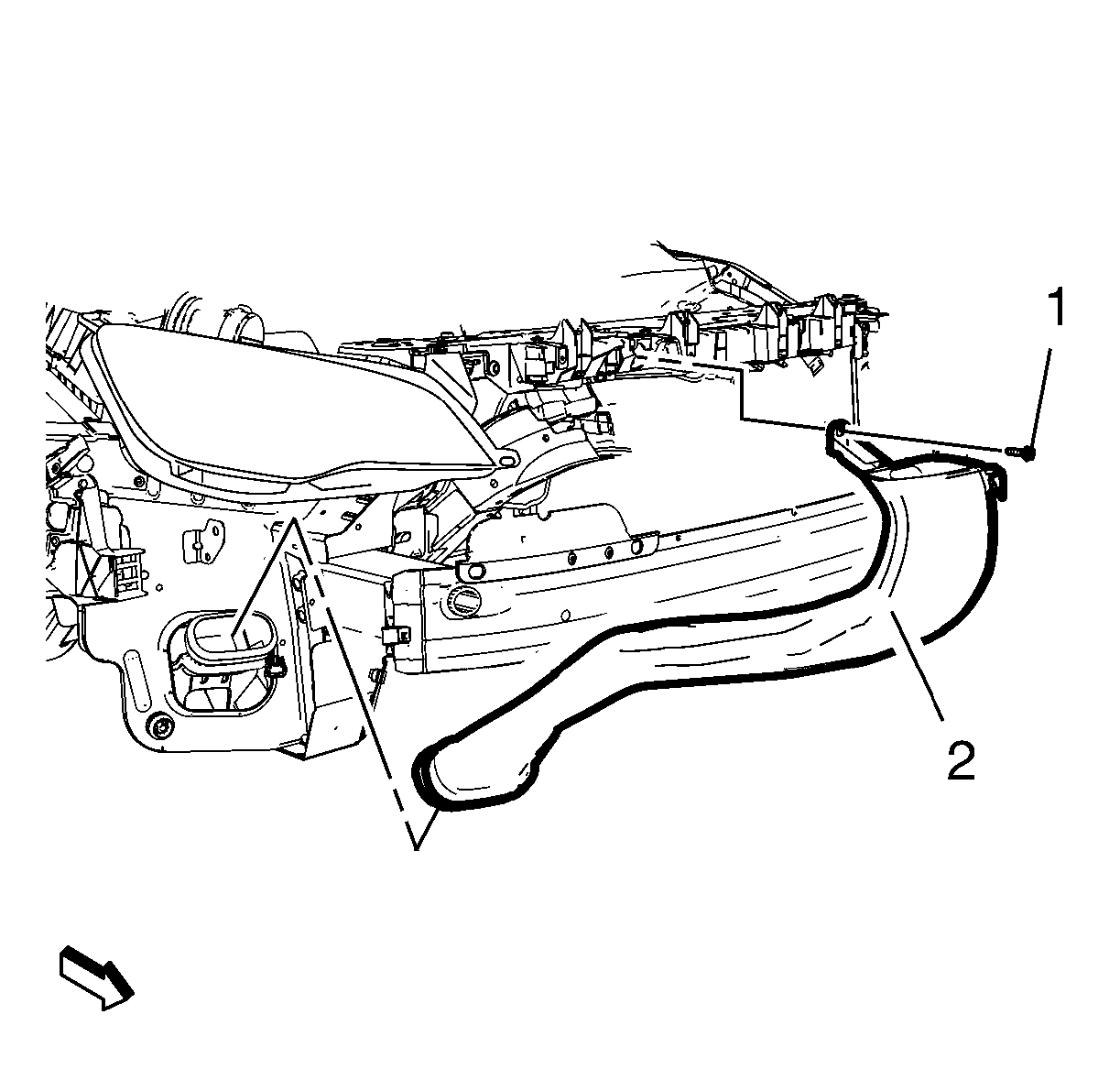

    Fig 3: Front Intake Air Duct Bolt
    GM2190229Courtesy of GENERAL MOTORS COMPANY
  7. Remove the front intake air duct (2).
