Removal Procedure
WARNING: This page is about a different variant/trim than selected.
- If equipped, remove the battery cover.
- Disconnect the battery negative cable. Refer to Battery Negative Cable Disconnection and Connection .

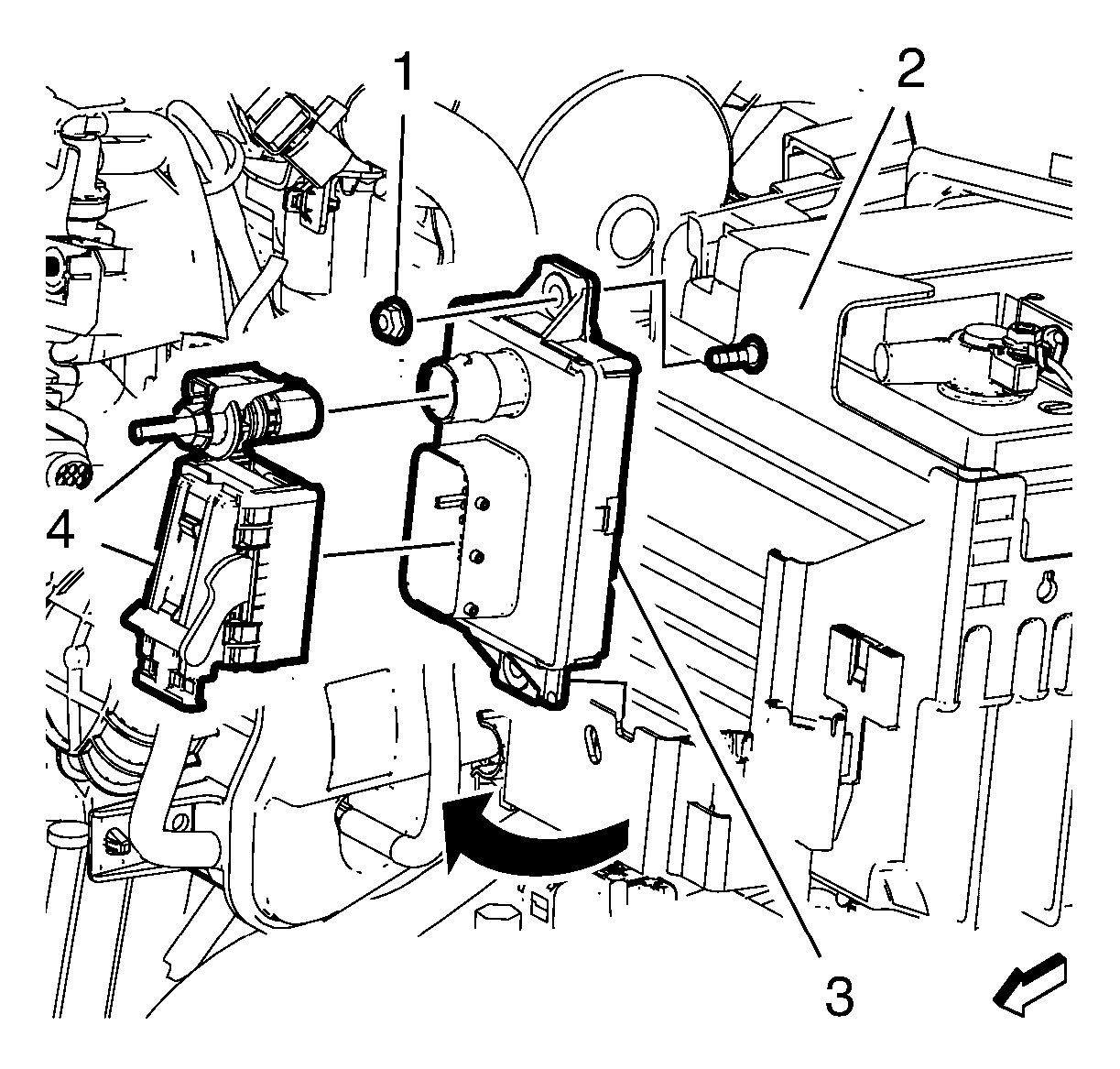

- Disconnect the 2 wiring harness plugs (4).
- Remove the glow plug control module nut (1).
- Pull the module forward at the top and slide upward out of the glow plug control module bracket.
