Fuel Tank Filler Hose Replacement

WARNING: This page is about a different variant/trim than selected.

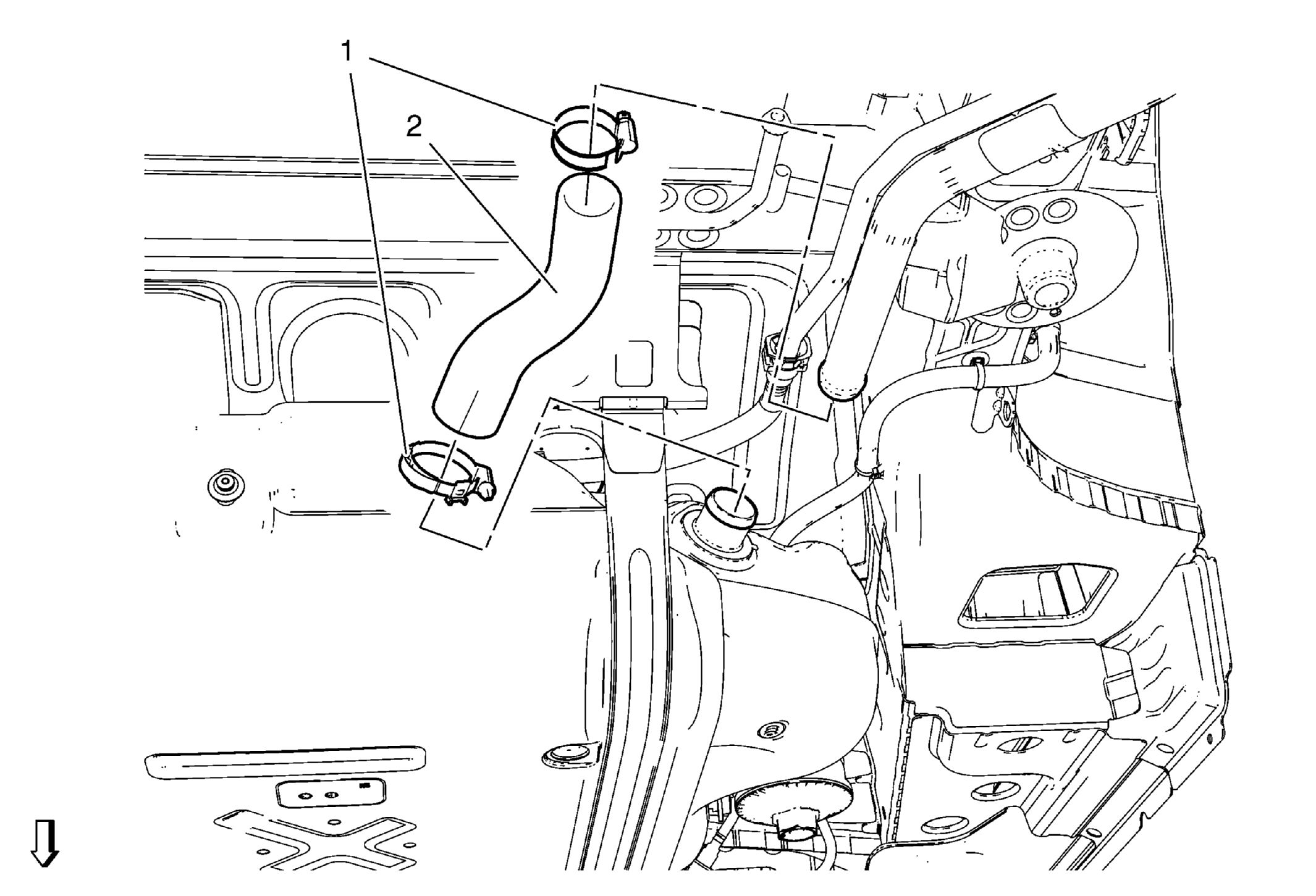

Fig 1: Fuel Tank Filler Hose & Clamps

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
WARNING: Gasoline or gasoline vapors are highly flammable. A fire could occur if an ignition source is present. Never drain or store gasoline or diesel fuel in an open container, due to the possibility of fire or explosion. Have a dry chemical (Class B) fire extinguisher nearby. WARNING: Refer to Fuel Vapors in Evaporative Emission Components Warning . Preliminary Procedures Open the hood. Disconnect the negative battery cable. Refer to Battery Negative Cable Disconnection and Connection . Drain the fuel tank. Refer to Fuel Tank Draining .
1	Fuel Tank Filler Hose Clamp (Qty: 2) CAUTION: Refer to Fastener Caution .
2	Fuel Tank Filler Hose

Callout

Component Name

WARNING: Gasoline or gasoline vapors are highly flammable. A fire could occur if an ignition source is present. Never drain or store gasoline or diesel fuel in an open container, due to the possibility of fire or explosion. Have a dry chemical (Class B) fire extinguisher nearby.

WARNING: Refer to Fuel Vapors in Evaporative Emission Components Warning .

Preliminary Procedures

Open the hood.
Disconnect the negative battery cable. Refer to Battery Negative Cable Disconnection and Connection .
Drain the fuel tank. Refer to Fuel Tank Draining .

Fuel Tank Filler Hose Clamp (Qty: 2)

CAUTION: Refer to Fastener Caution .

Fuel Tank Filler Hose
