Fuel Return Pipe Replacement - Fuel Return Pipe to Fuel Pump
WARNING: This page is about a different variant/trim than selected.
| Callout | Component Name |
|---|---|
|
WARNING:
Refer to Gasoline/Gasoline Vapors Warning
.
WARNING:
Always wear safety goggles when working with fuel in order to protect the eyes from fuel splash. Preliminary Procedure Remove the fuel tank. Refer to Fuel Tank Replacement . |
|

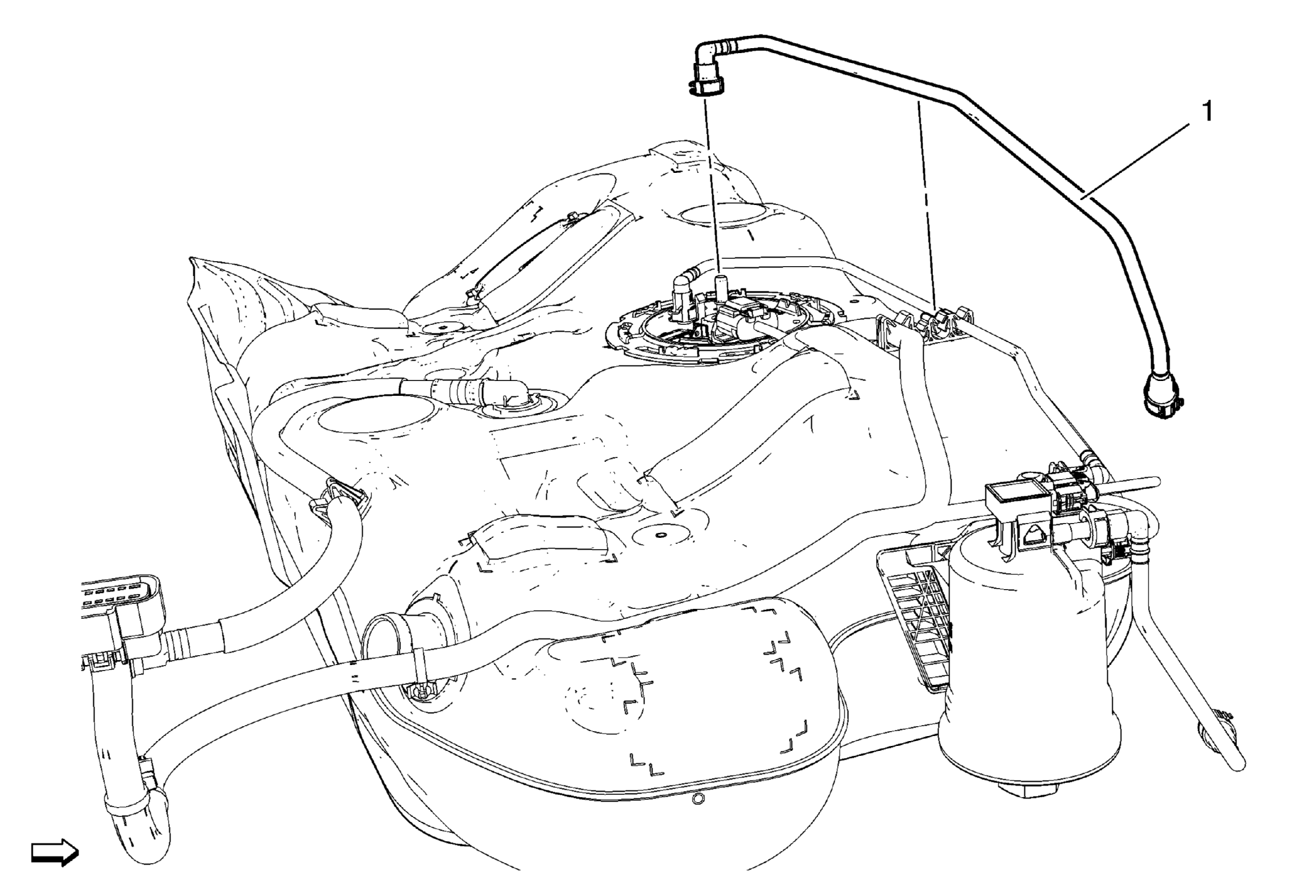

| 1 | Fuel Return Pipe - Fuel Return Pipe To Fuel Pump Procedure Close all open connections with EN-6015 plugs. Special Tools EN-6015 Closure Plugs. For equivalent regional tools, refer to Special Tools (Diagnostic Tools)Special Tools (Removal and Installation) . |
