Installation Procedure

WARNING: This page is about a different variant/trim than selected.
  1. Install the fuel level sensor assembly (2).

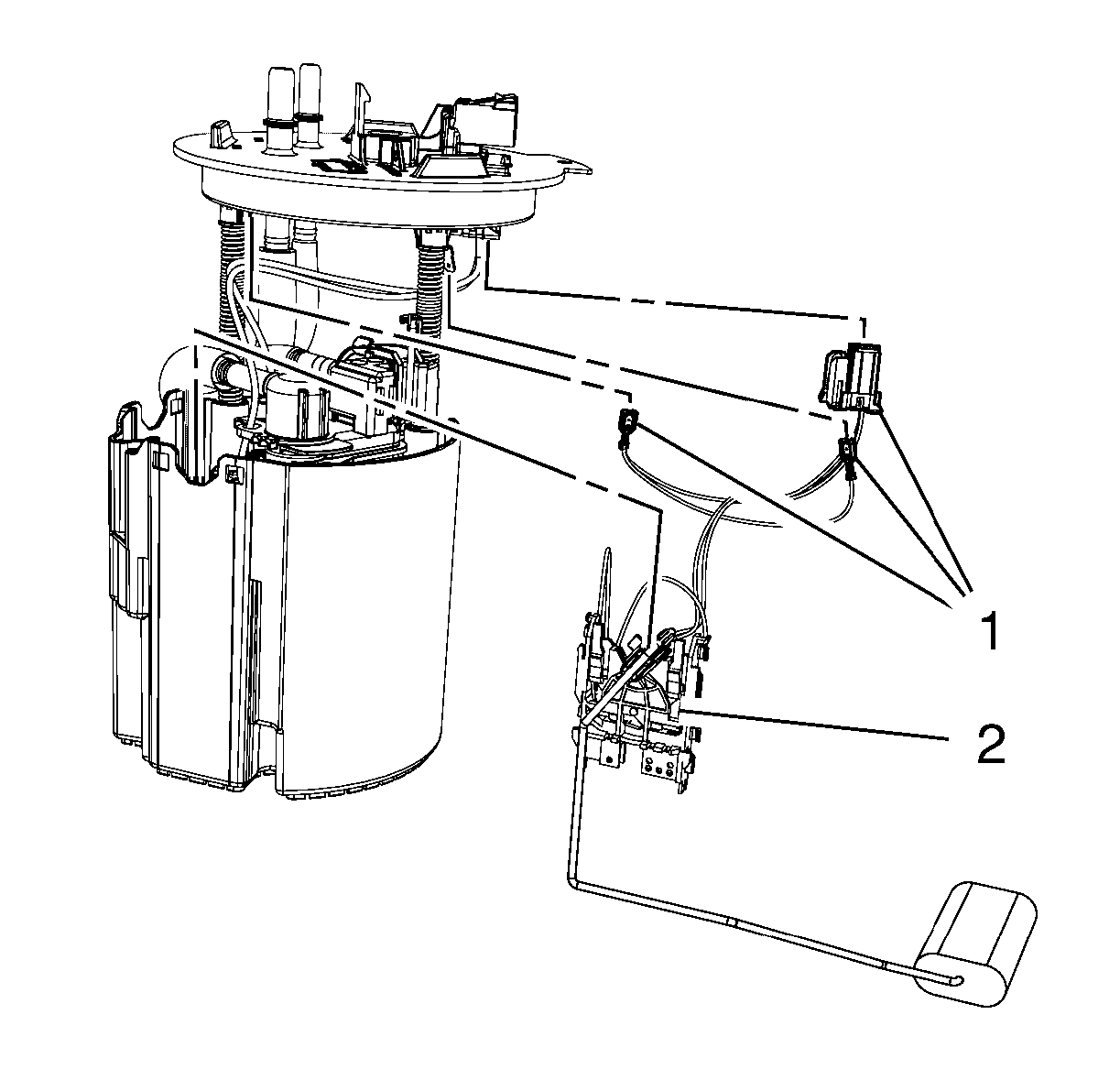

    Fig 1: Fuel Sender Assembly
    GM2371645Courtesy of GENERAL MOTORS COMPANY
  2. Connect the fuel level sensor assembly wiring harness plugs (1).
  3. Install the fuel tank fuel pump module. Refer to Fuel Tank Fuel Pump Module Replacement .
