Removal Procedure

WARNING: This page is about a different variant/trim than selected.
  1. Open the hood.
  2. Unclip the engine control module bracket and hang the engine control module aside.
  3. Remove the depression tube (1) from the exhaust gas recirculation valve actuator (2) and hang aside.

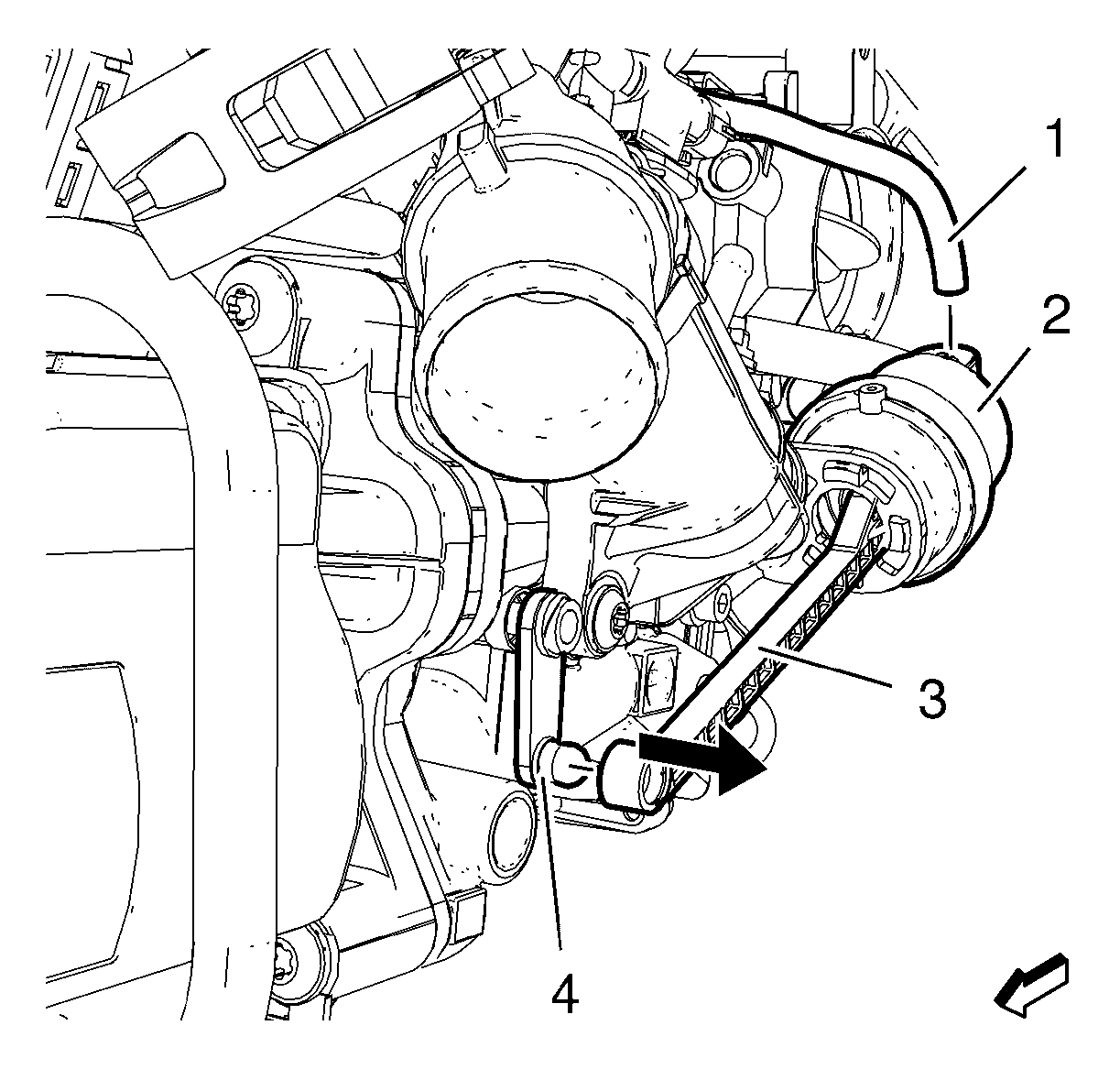

    Fig 1: Depression Tube And Exhaust Gas Recirculation Valve Actuator
    GM2191112Courtesy of GENERAL MOTORS COMPANY
  4. Use a suitable tool to unclip the exhaust gas recirculation valve actuator lever (3) from the exhaust gas recirculation valve cooler lever (4) (see arrow in picture).
  5. Turn the exhaust gas recirculation valve actuator (1) counterclockwise in order to unlock from bracket (2).

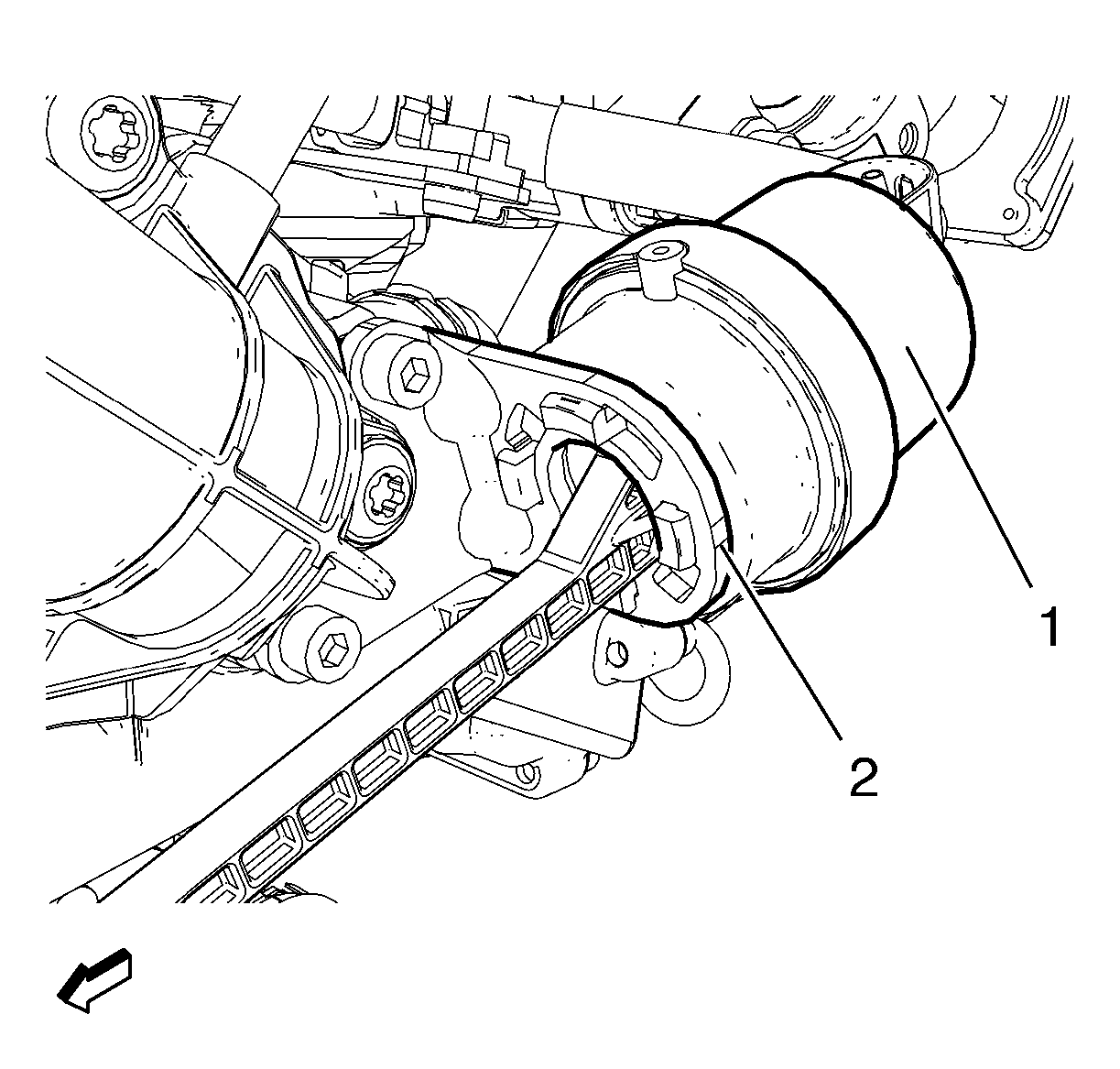

    Fig 2: Exhaust Gas Recirculation Valve Actuator
    GM2191117Courtesy of GENERAL MOTORS COMPANY
  6. Remove the exhaust gas recirculation valve actuator (1) in direction of the bulked.
